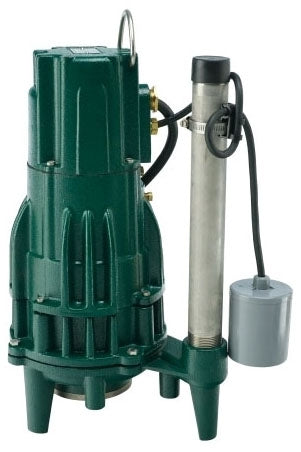

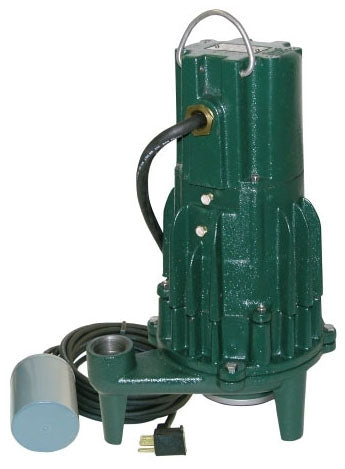

Zoeller 820-0004 Grinder Pump 2HP 230V 1-1/4 Inch NPT Replacement MPN

Product Description

The Zoeller 820-0004 is a high-efficiency grinder pump designed for residential and light commercial use. This 2 horsepower pump operates at 230 volts and features a capacitor start/run mechanism. Its discharge size is 1-1/4 inches with a vertical threaded outlet.

• Flow rate: 46 GPM
• Discharge head: 107 feet
• Durable cast iron construction

Product Highlights

This grinder pump is suitable for sewage and pressure sewer systems. It is designed for non-automatic operation and includes features such as thermal overload protection and a mechanical seal. The motor is oil-filled and hermetically sealed, ensuring reliability and longevity.

Product Information

Standard Information

• Manufacturer: Zoeller
• MPN: 820-0004

Technical Specifications

• Power Rating: 2 HP
• Input Supply Rating: 230 Volt AC, 60 Hertz
• Speed Rating: 3450 RPM
• Temperature Rating: 130°F

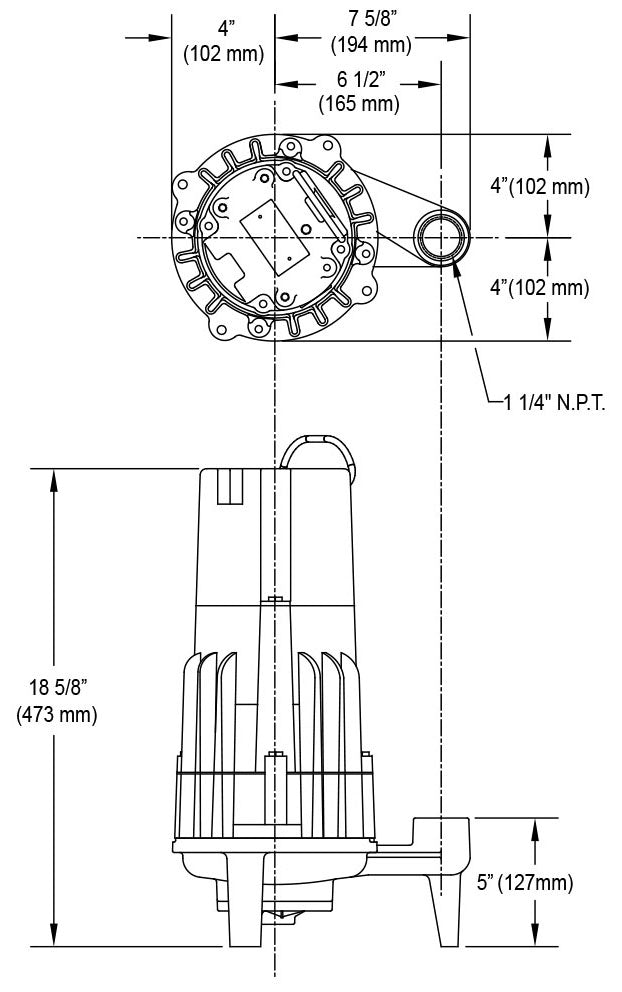

• Overall Dimensions: 11-5/8 Inch Length x 8 Inch Width x 18-5/8 Inch Height
• Power Cord Length: 20 Feet
• Warranty: 18 Months
