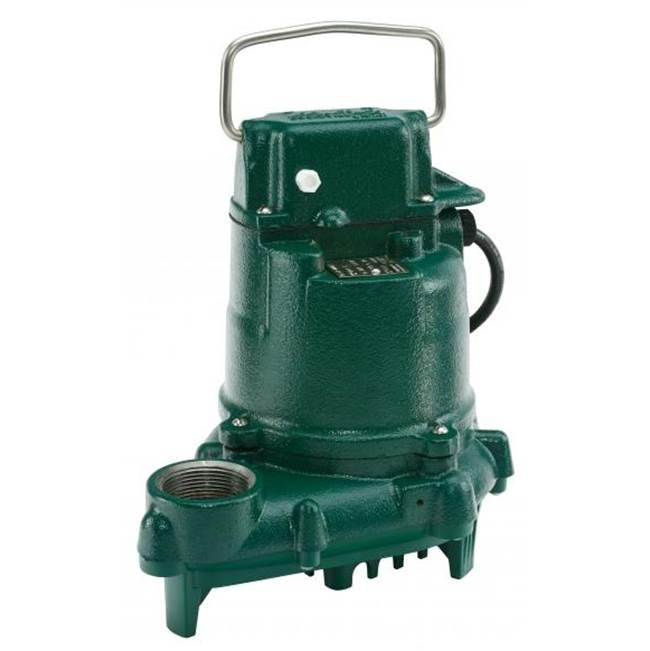

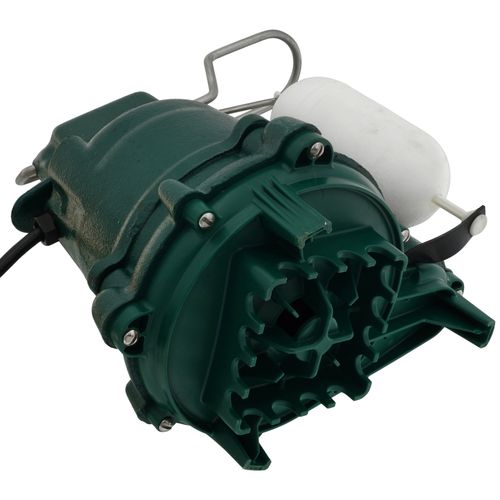

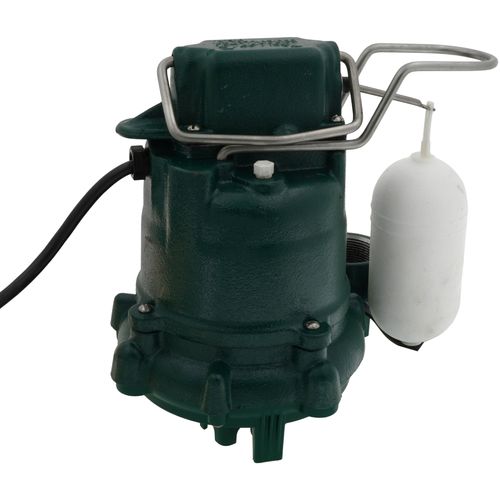

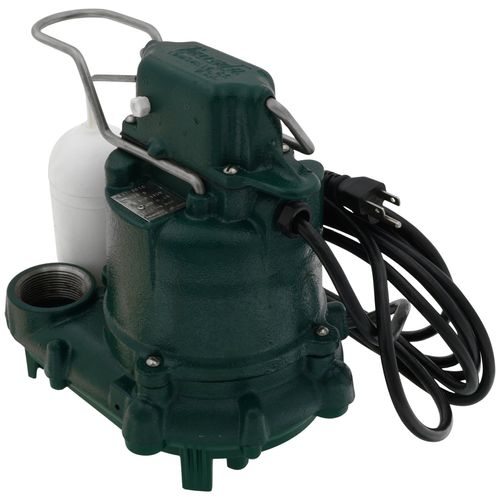

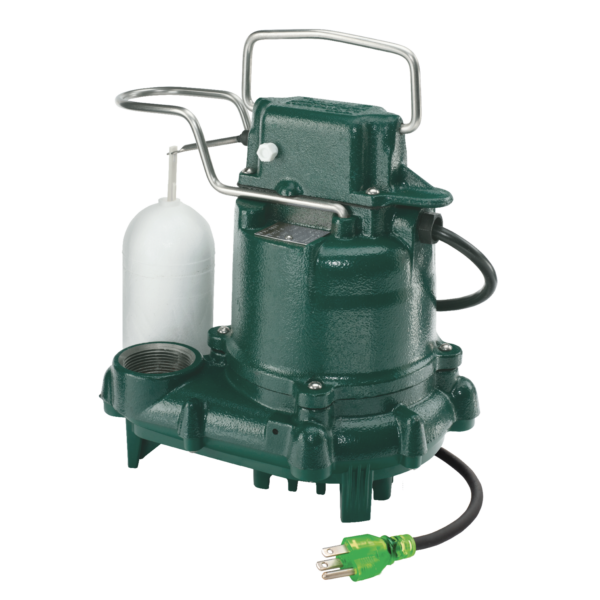

Zoeller 53-0014 Model M53 Sump Pump 3/10 HP 115 V w/ 15 feet Cord

Product Description

The ZOELLER 53-0014 Model M53 Sump Pump is designed for removing unwanted groundwater in basement sump applications. This automatic, float-operated sump pump features a 3/10 HP motor and a 15' cord. The pump is constructed with a cast iron switch case, motor housing, and pump housing for durability. It can handle 1/2" spherical solids.

• Automatic reset thermal overload motor protection
• Non-clogging vortex impeller design
• UL listed, 3-wire, grounded plug cord

Product Highlights

The ZOELLER M53 Sump Pump is ideal for basement sump applications, offering reliable and automatic operation with its robust cast iron construction and efficient motor design.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 53-0014
• Country of Origin: United States

Technical Specifications

• Type: Automatic
• Hertz: 60 Hz
• Phase: 1
• Voltage: 115 V
• Amperage: 9.7 A
• Material: Cast Iron
• Cord Type: UL Listed Power Cord
• Application: Plumbing
• Cord Length: 15' (5 m)
• Horse Power: 3/10 hp
• Width: 7-7/8 inch
• Height: 10-3/8 inch
• Flow at 5 FT Head: 43 GPM
• Shutoff Head (ft.): 19.25 ft
• Discharge: 1-1/2" NPT
• Solids Handling: 1/2" (12 mm) spherical solids
• On/Off Points: 7-1/4" (18.4 cm) / 3" (7.6 cm)
• Impeller Material: Engineered Plastic
• Impeller Type: Vortex
• Cooling: Oil filled
• GPH: 2580
• GPM: 43
• Max Flow Rate: 43 gpm
• Maximum Head: 19 ft
• Maximum Temperature: 130 °F (54 °C)
• Mechanical Seals: Carbon and ceramic
• Motor Insulation: Class B
• Motor Protection: Auto reset thermal overload
• Pump Body Material: Cast Iron
• Pump Motor Type: Shaded Pole
• Turn On / Off Levels: 7-1/4" (18.4 cm) / 3" (7.6 cm)
• Lower Bearing: Sleeve bearing
• Upper Bearing: Sleeve bearing
• Warranty Period: 3
• Warranty Unit: Years
• Frequency Rating: 60 Hz
• Motor Speed: 1550 rpm
• Outlet Size: 1-1/2 in NPT
• Voltage Rating: 115VAC
• Bearing Type: Sleeve Upper/Sleeve Lower
