Zoeller 5030-0005 Turbine Effluent Pump 0.5 Hp 115V 11 Gpm

Product Description

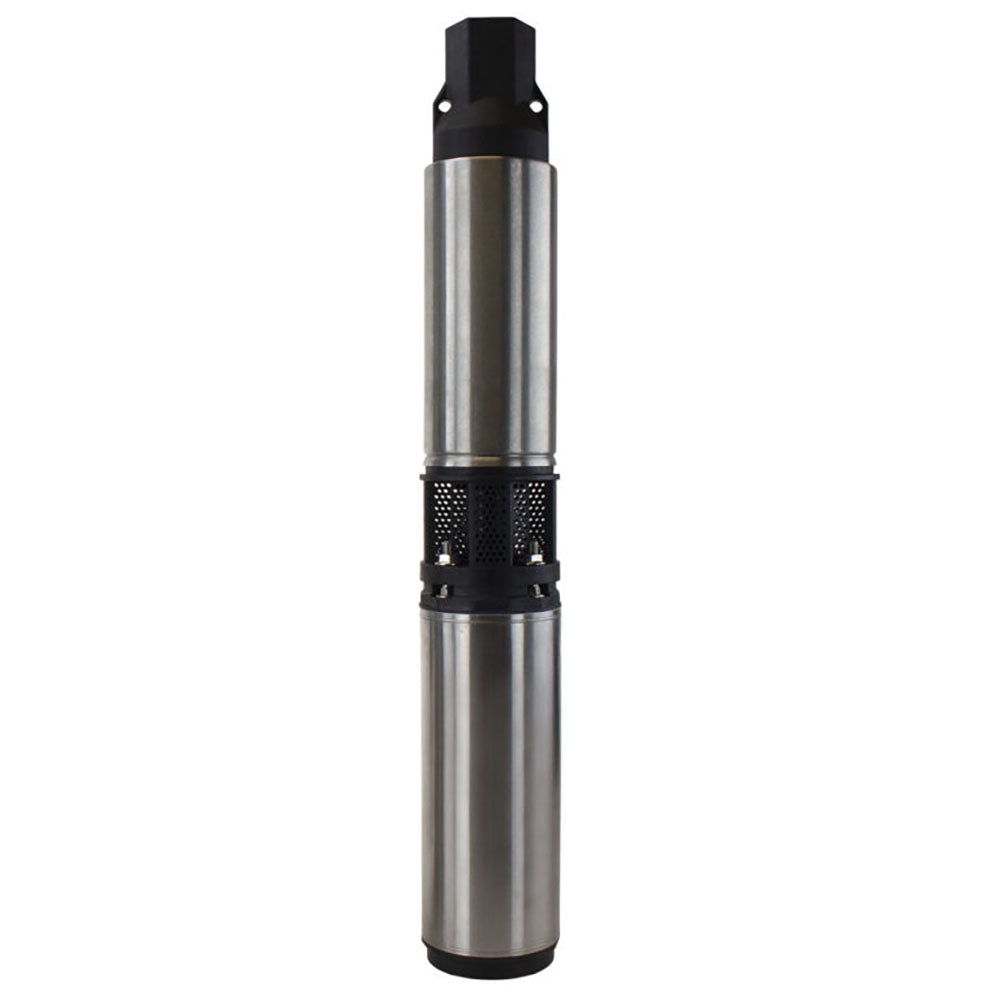

The ZOELLER 5030-0005 is a 5-stage submersible turbine effluent pump rated at 0.5 horsepower and 115 volts, single phase, delivering up to 11 GPM of flow. Built for demanding wastewater and effluent applications, it features a mid-section intake design, a corrosion-resistant stainless steel motor housing and pump casing, and a jacketed cord for added durability. The 1.25-inch discharge and 10-foot power cord make it a field-ready unit suited for licensed plumbers and wastewater system technicians working on drainfield or dosing system installations.

This pump is designed for effluent and turbine pumping applications where reliable multi-stage performance is required. The 5-stage configuration allows it to develop the head pressure needed in systems that serve elevated or extended drainfields. Its corrosion-resistant construction makes it appropriate for continuous submersion in effluent environments. Licensed plumbing contractors and septic system installers are the primary trade installing this unit in residential and light commercial wastewater dosing systems.

Key Features

• 5-stage turbine design delivers high head pressure for extended or elevated drainfield runs
• Mid-section intake draws effluent efficiently from sump or tank environments
• Corrosion-resistant stainless steel motor and pump casing rated for continuous submersion
• Jacketed cord provides mechanical and chemical protection in wet installations
• 1.25-inch discharge connection sized for standard effluent system piping
• 10-foot power cord allows placement depth without splicing at the pump

Compatibility

Designed as an OEM-style replacement or direct-install submersible turbine effluent pump for residential and light commercial septic dosing and drainfield pressurization systems.

Installation Notes

Installation should be performed by a licensed plumber or certified septic system contractor in accordance with applicable local and state wastewater codes. Disconnect and lock out power at the control panel before handling the pump or float controls. Verify tank depth and sump dimensions against cord length and discharge configuration before lowering the unit. Do not operate the pump dry, as the effluent serves as the primary cooling medium for the motor.

Technical Specifications

• Motor Horsepower: 0.5 HP
• Voltage: 115 volts
• Phase: 1-phase
• Flow Rate: 11 GPM
• Stages: 5
• Discharge Size: 1.25 inches
• Cord Length: 10 feet
• Certifications: cCSAus

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 5030-0005
