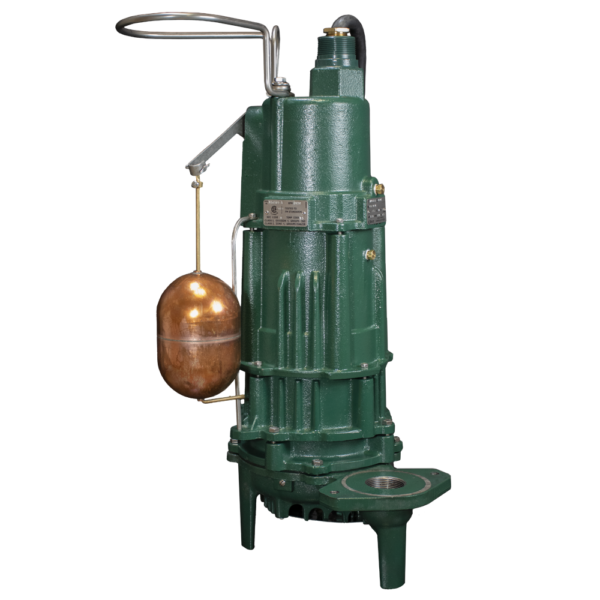

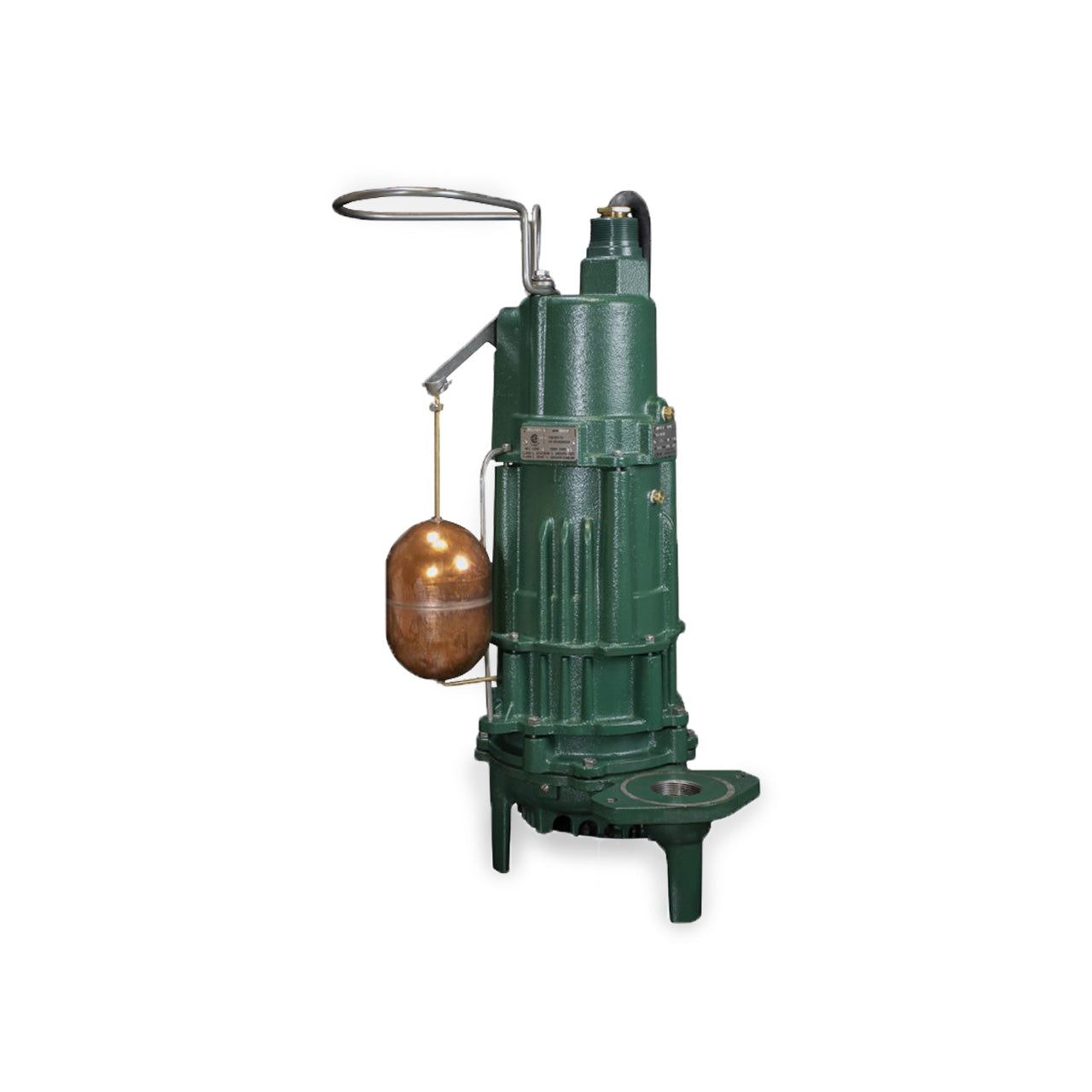

Zoeller 4161-0034 MX4161 Effluent Pump 1/2 HP 25 feet Cord

Product Description

The ZOELLER 4161-0034 MX4161 is an automatic explosion-proof effluent pump rated for Class 1, Division 1, Groups C & D or Class 1, Zone 1, Groups IIA & IIB. The vortex impeller allows passage of 3/4" spherical solids, reducing clogging. Constructed with a cast iron motor housing, pump housing, and base, with stainless steel hardware for corrosion resistance. Every pump is submerged and tested.

• Features an oil-filled motor and cast iron motor housing for optimal heat dissipation.
• Equipped with a corrosion resistant cast iron vortex impeller to allow free passage of 3/4" spherical solids.
• Includes stainless steel screws, handle, and hardware to prevent rust and corrosion.

Product Highlights

This automatic effluent pump is designed for demanding applications, ensuring reliability and longevity with its robust construction and explosion-proof rating.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 4161-0034

Technical Specifications

• Horsepower: 0.5 HP
• Voltage: 115V
• Phase: 1
• AMP: 15.5
• Hertz: 60
• RPM: 3450 RPM
• Discharge: 1-1/2" NPT
• Solids Handling: 3/4" (19 mm) Spherical Solids
• On/Off Points: 19-1/2" (495 mm) / 9.75"(24.7 cm)
• Impeller Material: Cast Iron
• Impeller Type: Non-clogging Vortex
• Cord Length: 25'
• MOTOR TYPE: Permanent Split Capacitor
• MAXIMUM HEAD: 57'
• MAXIMUM CAPACITY: 93 GPM
• SWITCH TYPE: Automatic
• CORD TYPE: UL listed 5-Wire Neoprene Cord
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
• HAZARDOUS DUTY: Class 1, Division 1, Groups C D or Class 1, Zone 1, Groups IIA IIB
• Length: 15.75"
• Width: 13.75"
• Height: 32"
