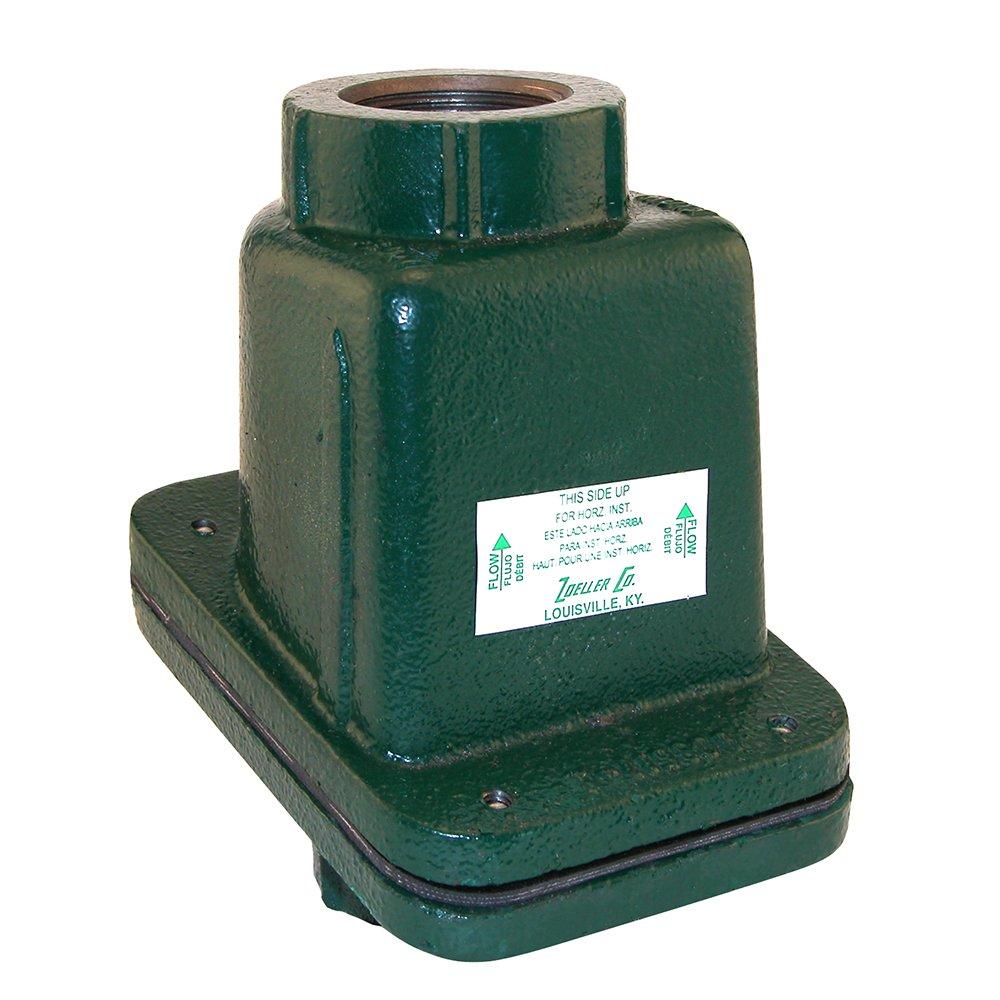

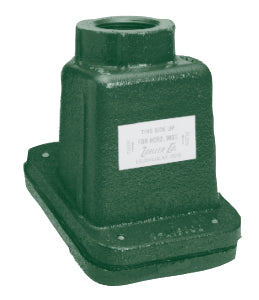

Zoeller 30-0163 1-1/4 in. FNPT Cast Iron Check Valve

Product Description

The Zoeller 30-0163 is a 1-1/4 inch FNPT cast iron check valve designed to prevent backflow in plumbing applications. This check valve features a full-flow design with no restrictions, ensuring efficient water flow. It is suitable for both vertical and horizontal installation.

• Stops backflow of water
• Made of corrosion-resistant cast iron
• Compatible with standard NPT sizes: 1-1/4 inch, 1-1/2 inch, 2 inch, and 3 inch

Product Highlights

This check valve is ideal for residential and commercial plumbing applications, providing reliable performance and durability.

Product Information

Standard Information

• Manufacturer: Zoeller Pump Company
• Inlet Port: 1-1/4 inch FNPT

Technical Specifications

• Body Material: Cast Iron
• Pressure Rating: 50 psi
• Temperature Rating: 130 deg F
• Dimensions: 6-1/4 in length x 5-1/16 in width x 4 in height
• Flapper Material: Neoprene polyester reinforced
• Finish: Powder coated epoxy
• Installation Type: Vertical or Horizontal
