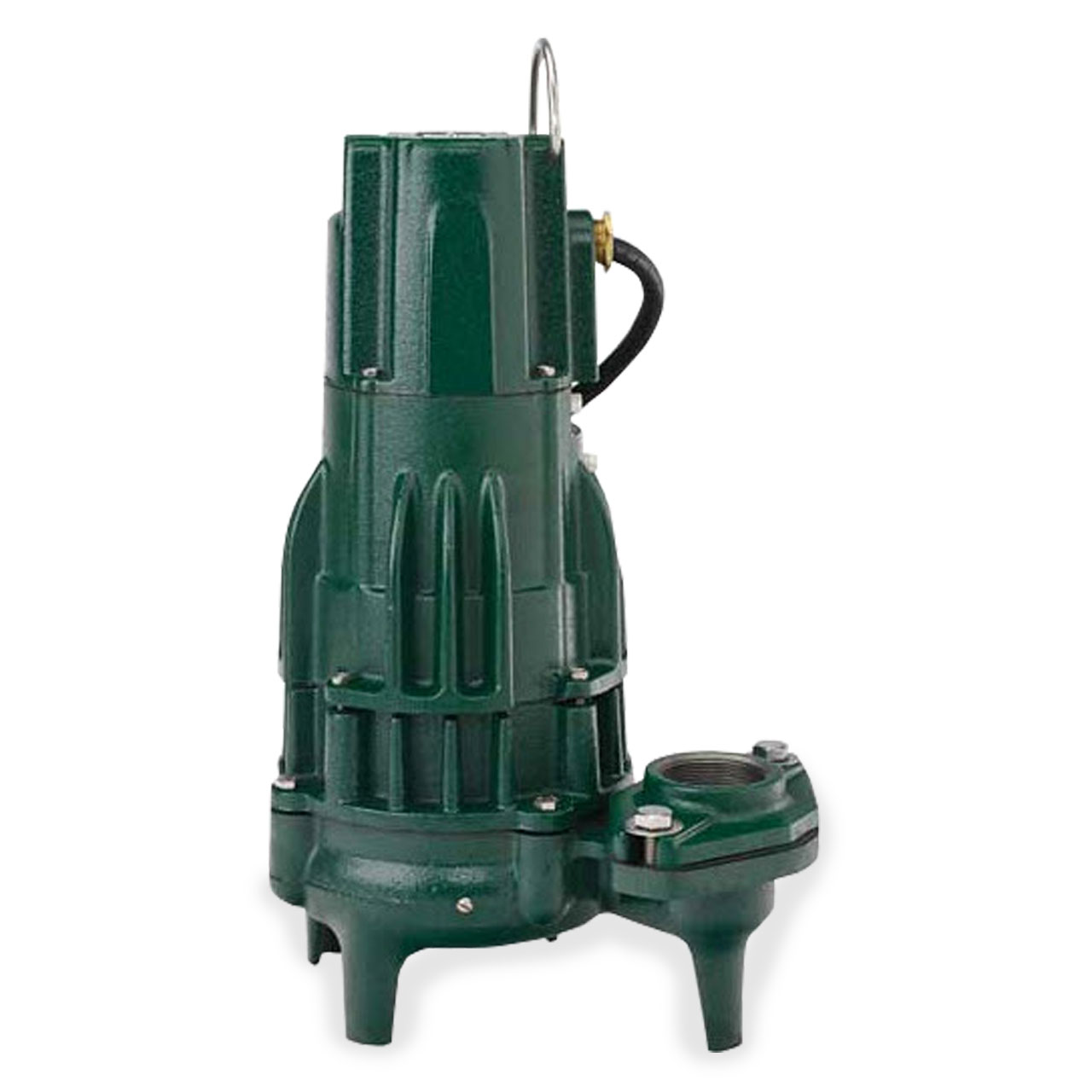

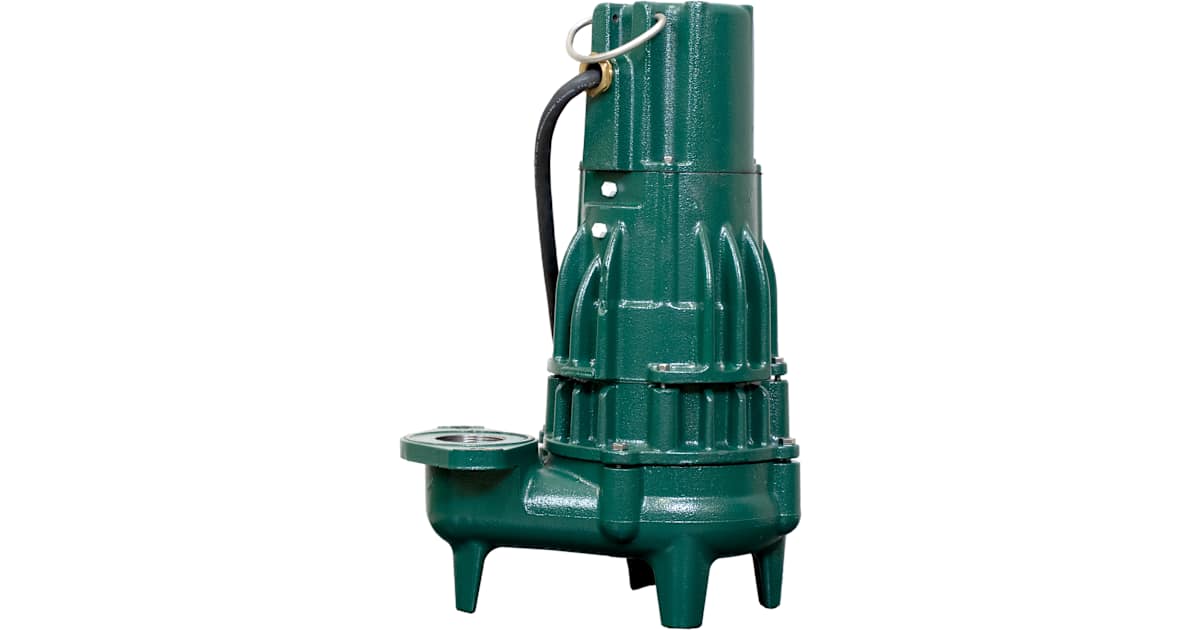

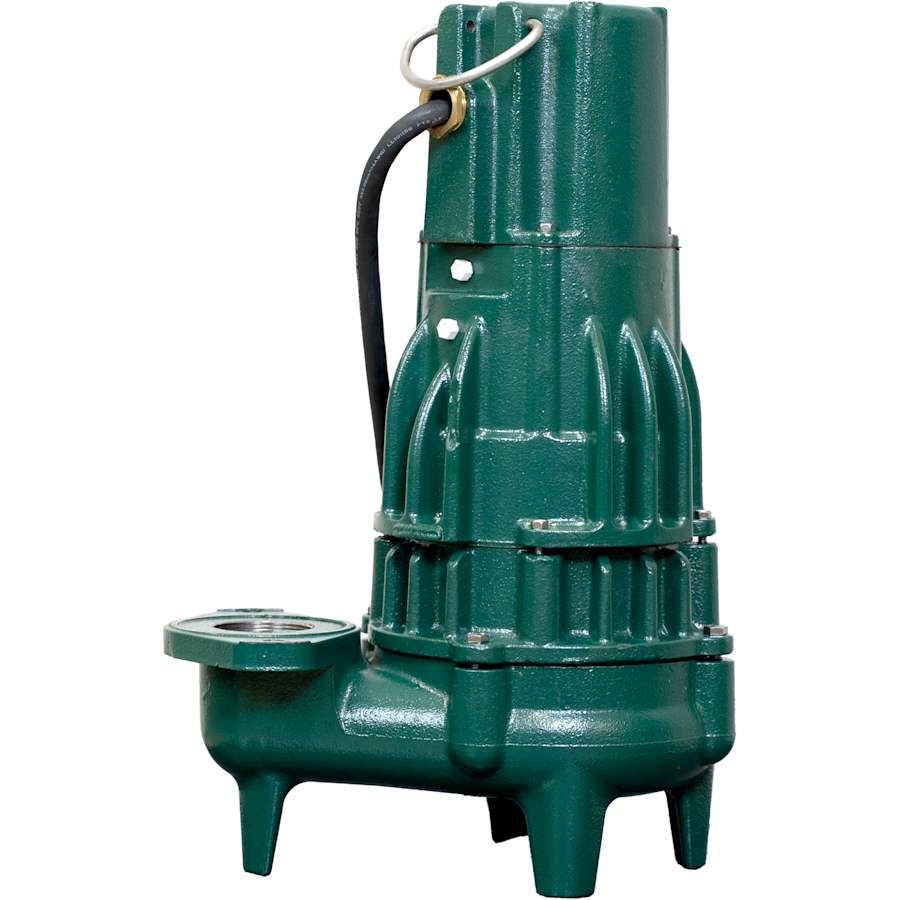

Zoeller 295-0010 Waste-Mate J295 Single Seal Manual Sewage Pump 2 HP (20 ft Cord)

Product Description

Zoeller 295-0010 is a Waste-Mate J295 single-seal manual submersible sewage pump with a 2 HP, 200 V, 3-phase motor (MPN 295-0010). It delivers up to 214 GPM at low head, with a 75 ft shutoff head and 3450 RPM. The pump features cast iron construction with a powder-coated epoxy finish, an oil-filled hermetically sealed motor, stainless steel/carbon and ceramic rotary shaft seal, and a 20 ft cord. It passes 2 in spherical solids.

• 2 HP motor, 200 V 3-phase, 3450 RPM, output current 17.8 A; manual single-seal design
• Cast iron construction (class 25-30) with powder-coated epoxy finish; oil-filled motor and upper/lower ball bearings in an oil bath
• Non-clogging vortex impeller that passes 2" spherical solids; 2" or 3" NPT female flanged vertical discharge; 20 ft cord

Product Highlights

Manual single-seal submersible sewage pump, 2 HP 200 V 3-phase, 214 GPM, 75 ft head, passes 2" solids

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 295-0010
• Country of Origin: USA

Technical Specifications

• Brand: Zoeller
• MPN: 295-0010
• Model: J295
• Series: Waste-Mate
• Product Type: Submersible sewage pump
• Operation: Manual
• Seal Type: Single
• Input Voltage: 200 V
• Phase: 3-phase
• Frequency: 60 Hz
• Horsepower: 2 HP
• Output Current: 17.8 A
• Speed (RPM): 3450 RPM
• Max Flow Rate: 214 GPM
• Max Head: 75 ft
• Solids Handling: 2 in (50 mm) spherical solids
• Discharge Connection: 2" or 3" NPT female flanged vertical
• Cord Length: 20 ft
• Pump Housing Material: Cast iron (Class 25-30)
• Finish: Powder-coated epoxy
• Motor Type: Oil-filled, hermetically sealed motor
• Shaft Seal: Stainless steel carbon & ceramic rotary
• Bearings: Upper and lower ball bearings running in oil bath
• Impeller Type: Non-clogging vortex
• Maximum Fluid Temperature: 130 °F (54 °C)
