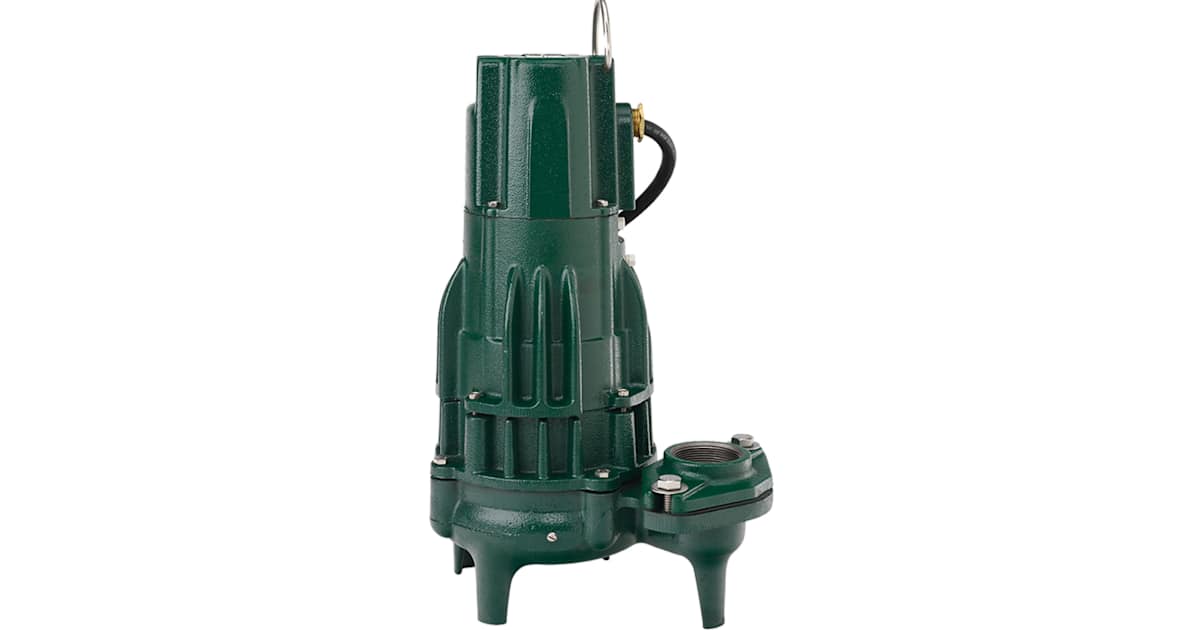

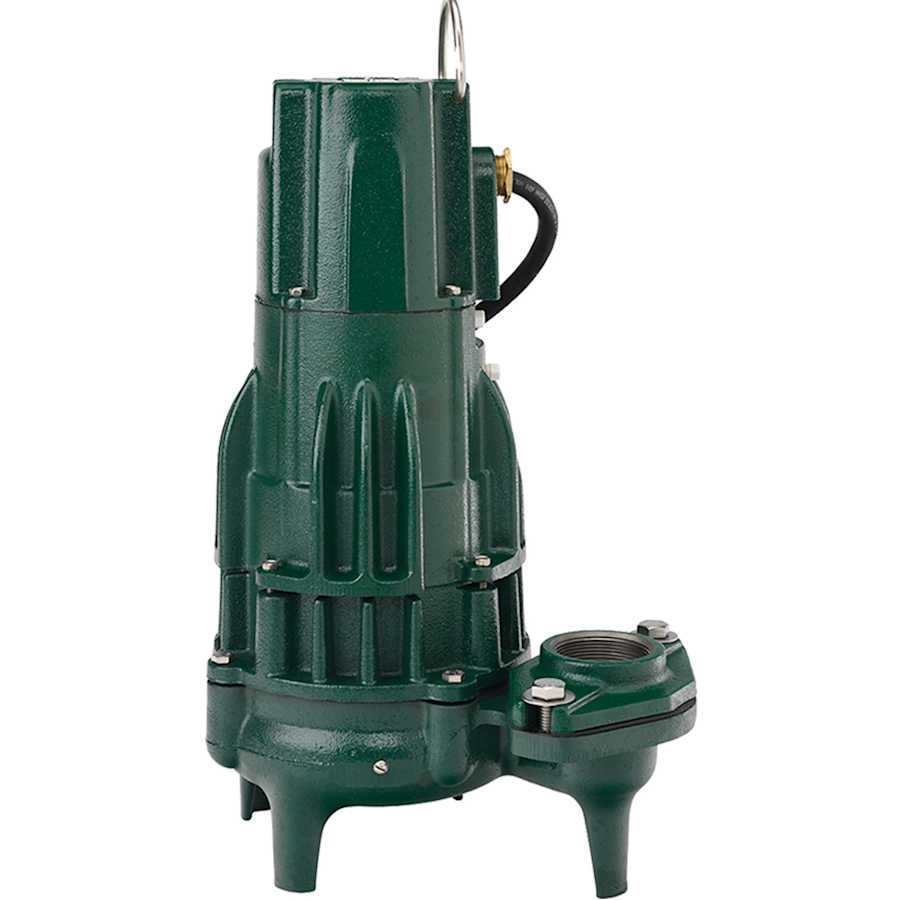

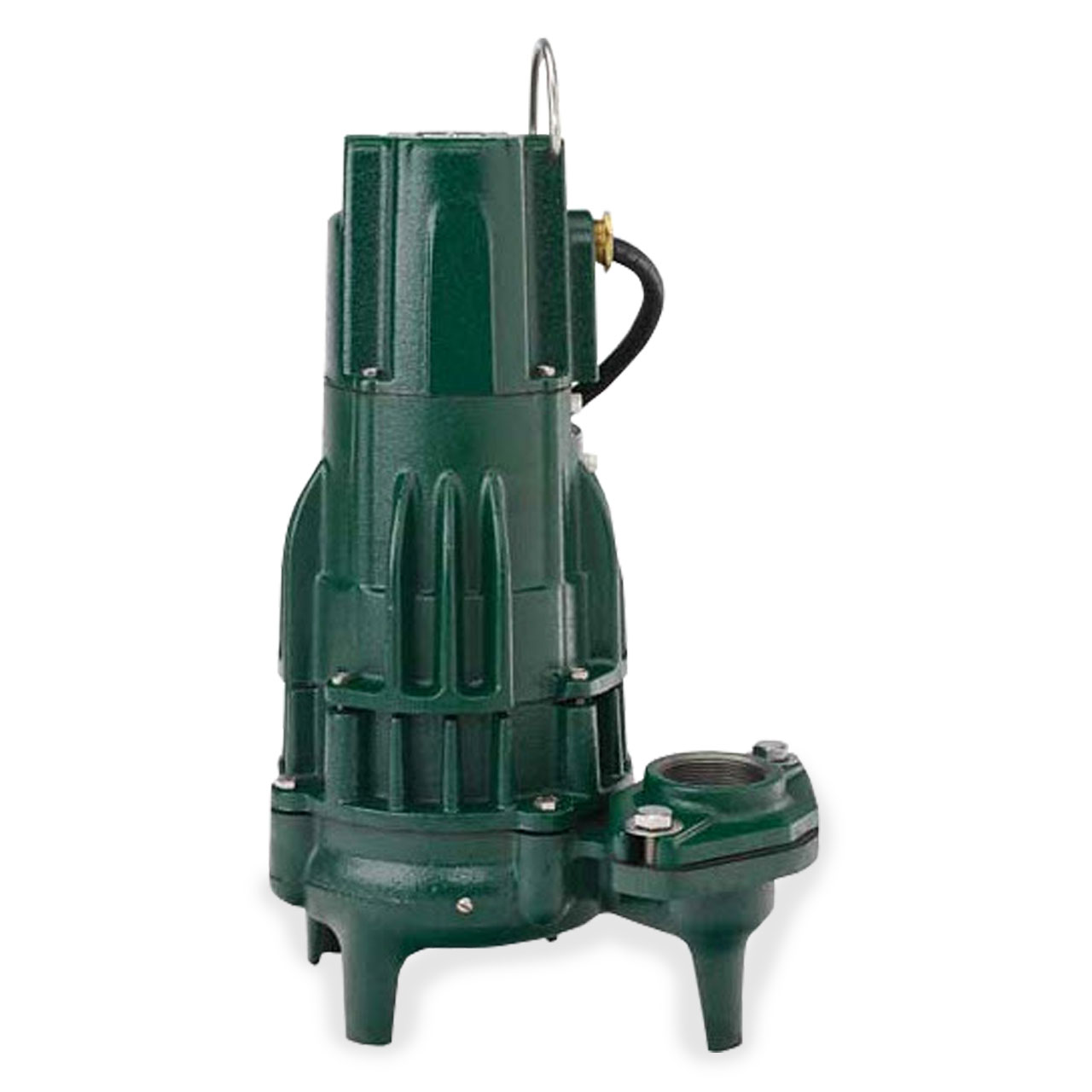

Zoeller 295-0009 G295 submersible sewage pump 2 HP (20 ft cord) 295-0009

Product Description

The Zoeller 295-0009 is a G295 series 2 HP submersible sewage pump rated for 460 V and 3450 RPM, designed for residential and light commercial dewatering and wastewater transfer. The pump features a cast iron vortex impeller that passes 2 in spherical solids, a powder-coated epoxy finish, a single mechanical stainless steel carbon and ceramic shaft seal, and an oil-filled motor intended for continuous duty, nonautomatic operation.

• 2 HP, 3-phase 460 V motor; 3450 RPM; 6.1 A rated current (verify current vs voltage)
• Maximum flow up to 214 GPM and maximum head up to 75 ft; passes 2 in solids
• Cast iron vortex impeller and housing with powder-coated epoxy finish; 20 ft cord; 2 in NPT vertical discharge

Product Highlights

2 HP 460 V submersible sewage pump with vortex impeller; handles 2 in solids; 214 GPM max

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 295-0009
• Country of Origin: USA (subject to change)

Technical Specifications

• Brand: Zoeller
• Manufacturer Part Number: 295-0009
• Model: G295
• Series: Waste-Mate 290
• Product Type: Submersible sewage pump
• Operation: Manual (nonautomatic)
• Input Voltage: 460 V AC
• Phase: 3
• Frequency: 60 Hz
• Power: 2 HP
• Output Current: 6.1 A (see validation notes)
• Motor Speed: 3450 RPM
• Max Flow Rate: 214 GPM
• Max Head: 75 ft
• Discharge Size: 2 in NPT (vertical)
• Discharge Orientation: Vertical
• Solids Handling: 2 in (50 mm) spherical solids
• Impeller Type: Vortex
• Impeller Material: Cast iron
• Motor Type: Oil-filled, hermetically sealed motor
• Shaft Seal: Stainless steel carbon & ceramic rotary (single seal)
• Cord Length: 20 ft
• Pump Housing Material: Cast iron
• Finish: Powder-coated epoxy
• Maximum Fluid Temperature: 130 F (54 C)
• Duty Cycle: Continuous
• Dimensions: 21.25 in H x 11.75 in W x 14.75 in L
• Weight: 91 lbs
• Certifications: CSA certified; UL listed
