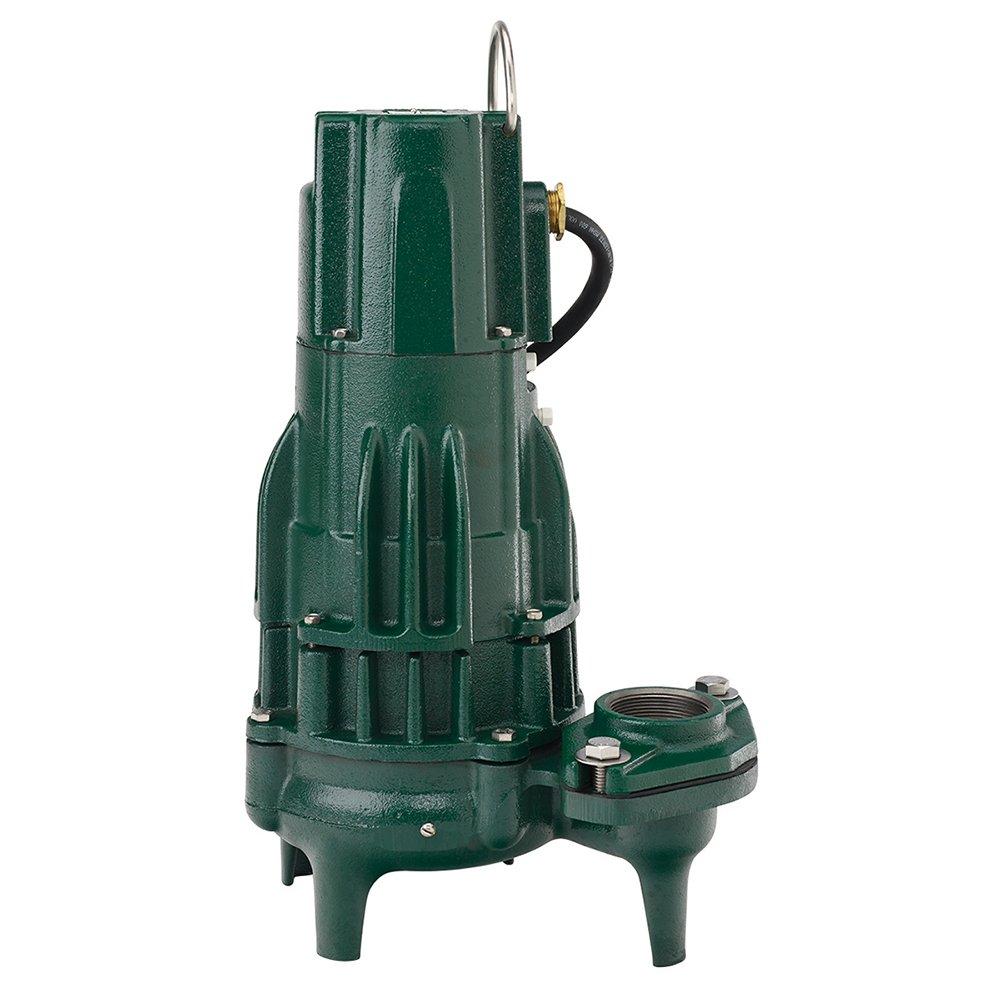

Zoeller 294-0004 Waste-Mate 3 in. 1-1/2 hp High Head Submersible Sewage Pump

Product Description

The Zoeller 294-0004 Waste-Mate submersible sewage pump is built for efficient sewage transfer. This model features a 1-1/2 horsepower motor designed for high-head applications. The pump is cast iron constructed, ensuring durability and longevity. Commonly used in residential and light commercial sewage setups, it efficiently handles raw sewage with performance well-suited for challenging conditions.

• 1-1/2 horsepower motor for high-efficiency pumping.
• Maximum head of sixty-two feet, suitable for extended discharge runs.
• Non-clogging vortex impeller allows passage of solids up to two inches.

Product Highlights

This pump is ideal for use in sewage and drainage applications, featuring built-in thermal protection for added safety and assurance.

Product Information

Standard Information

• Brand: Zoeller Pump Co
• MPN: 294-0004

Technical Specifications

• Horsepower: 1-1/2 hp
• Maximum Head: 62 ft
• Flow Rate: 196 gpm
• Voltage Rating: 230 VAC
• Amperage Rating: 13.7 A
• Cord Type: 3-Wire Neoprene
• Dimensions: 19-5/16 in H x 12-7/8 in W
• Impeller Type: Non-Clogging Vortex
• Phase: 1 ph
