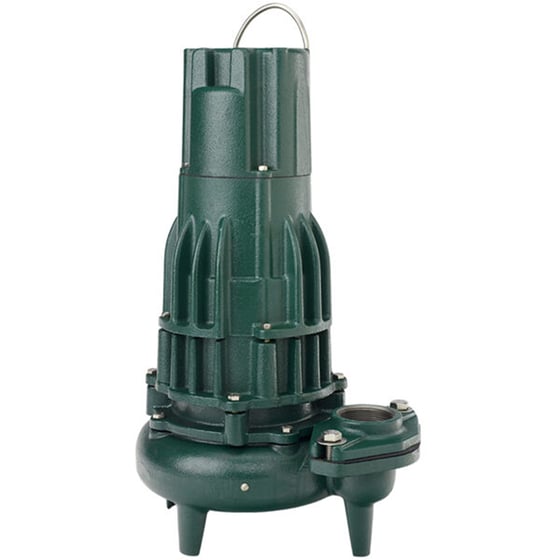

Zoeller 292-0045 High Head Sewage Pump 1/2 Hp 460V 3 Phase

Product Description

The ZOELLER 292-0045, also known as the Model G292 Waste-Mate 290 Series, is a submersible high head sewage pump rated at 1/2 HP and designed for residential and light commercial wastewater and dewatering applications. Operating on 460 volts, 3-phase power at 2.9 amps, it delivers up to 135 GPM and a maximum head of 40 feet. The pump features a vortex impeller that allows passage of solids up to 2 inches spherical, reducing clog risk during raw sewage and effluent transfer. A powder-coated epoxy finish provides corrosion resistance, and the motor housing promotes heat dissipation for extended service life.

The 292-0045 is suited for residential lift stations, light commercial wastewater systems, and groundwater transfer installations where higher head pressure is required. It connects via a 2-inch NPT flanged discharge and includes a 20-foot power cord for flexible installation depth. Manual operation makes it appropriate for use in systems controlled by an external float switch or panel. Each unit is pressure-tested, submerged, and run at the factory before shipment, confirming operational integrity prior to field installation.

Key Features

• Vortex impeller design passes solids up to 2 inches spherical, reducing clog risk in raw sewage service
• 460-volt, 3-phase motor rated at 2.9 amps draws less current per phase, suited for commercial-grade electrical services
• Delivers up to 135 GPM flow rate with a maximum head of 40 feet
• Powder-coated epoxy finish resists corrosion in harsh wastewater environments
• 2-inch NPT flanged discharge provides secure, leak-resistant connection to discharge piping
• 20-foot cord allows installation at depth without field splicing in most standard wet-well configurations
• Factory pressure-tested and run-tested before shipment for verified performance

Compatibility

Designed as an OEM-style replacement or direct-install submersible sewage pump for residential and light commercial wastewater lift station applications requiring 460-volt, 3-phase power and a 2-inch NPT flanged discharge connection.

Installation Notes

Installation should be performed by a licensed plumber or pump contractor familiar with IPC and local wastewater codes. Disconnect and lock out all electrical power at the panel before lowering or removing the pump from the wet well. The 3-phase electrical connection must be wired and verified by a licensed electrician, and rotation direction should be confirmed before commissioning. Do not run the pump dry, and ensure the discharge line is properly supported and checked-valve equipped to prevent backflow.

Technical Specifications

• Model: G292 Waste-Mate 290 Series
• Power: 1/2 HP
• Voltage: 460 volts
• Phase: 3 Phase
• Amperage: 2.9 amps
• Max Flow Rate: 135 GPM
• Max Head: 40 feet
• Discharge Connection: 2 inches NPT Flanged
• Cord Length: 20 feet
• Operation: Manual
• Seal Type: Single Seal
• Solids Handling: 2 inches spherical
• Finish: Powder-coated epoxy

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 292-0045
