Zoeller 292-0014 BN292 2F/115V/1Ph/Pb20'/cCSAus

Product Description

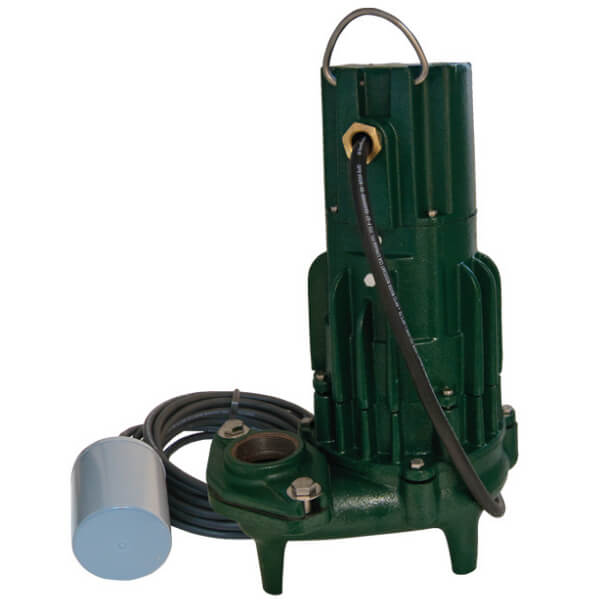

The Zoeller Submersible Sewage Pump, MPN 292-0014, is designed for effective sewage and dewatering applications. This pump features a 1/2 horsepower motor operating at 115 volts and is equipped with a variable level float switch. It provides a maximum flow rate of 135 gallons per minute and can handle a maximum head of forty feet.

• Constructed with durable cast iron materials.
• Includes a 20-foot neoprene cord.
• Automatic operation with a hermetically sealed motor.

Product Highlights

This model offers reliable and automatic operation for sewage waste transfer in commercial settings.

Product Information

Standard Information

• Manufacturer: Zoeller Pump Company
• Product Name: BN292 2F/115V/1Ph/Pb20'/cCSAus

Technical Specifications

• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Voltage Rating: 115 VAC
• Frequency Rating: 60 Hz
• Maximum Head: 40 ft
• Flow Rate: 135 gpm
• Dimensions: 19-5/16 in H x 12-7/8 in W
• Impeller Type: Non-Clogging Vortex
• Phase: 1 ph
• Temperature Rating: 130 deg F
• Outlet Size: 2 or 3 in FNPT
