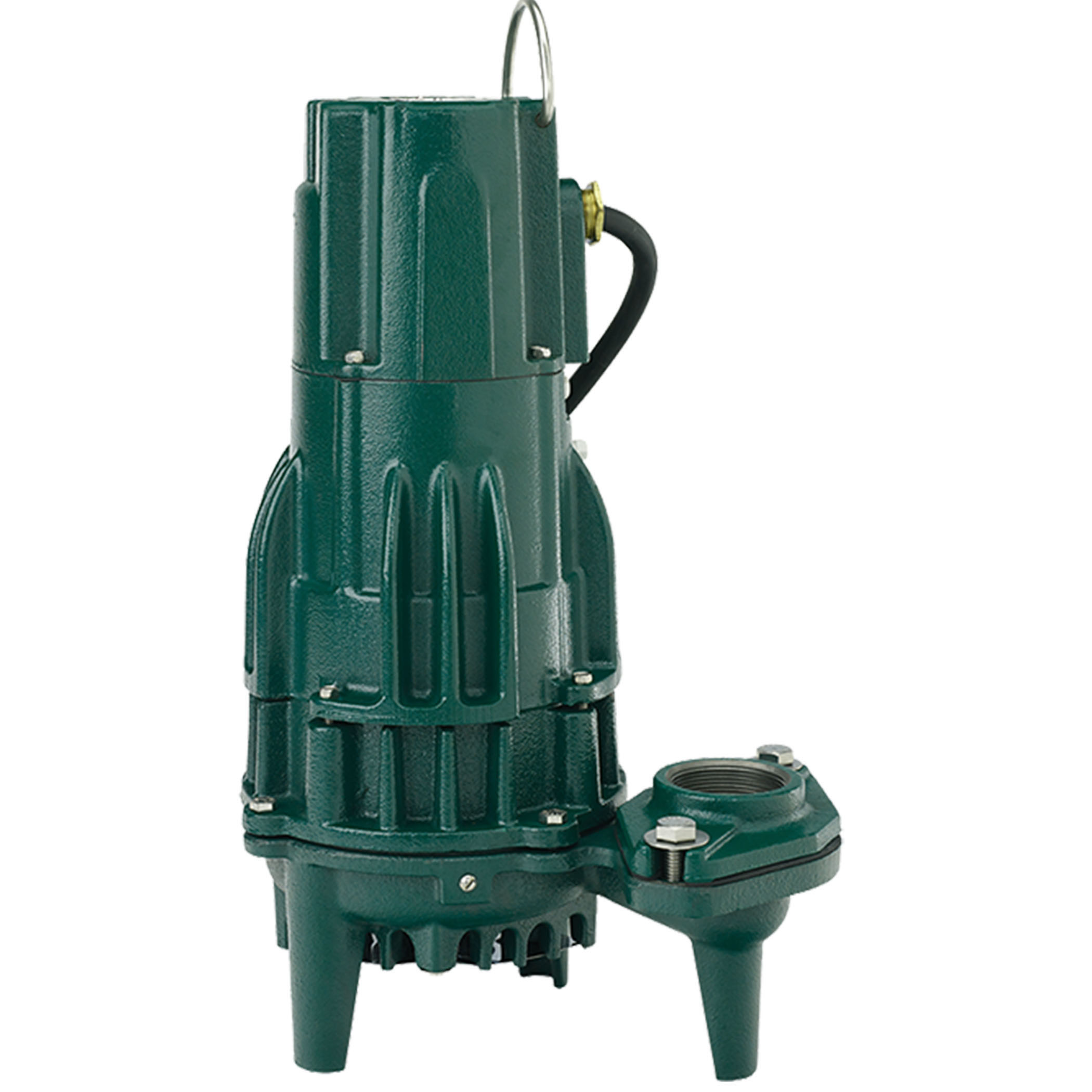

Zoeller 188-0004 Effluent Pump 1.5 Hp 230V 116 Gpm Septic

Product Description

The ZOELLER 188-0004 is a 1.5 HP nonautomatic effluent pump built for septic system and groundwater removal applications. Running on 230 volts single phase at 14 amps, it delivers up to 116 GPM at a 30-foot total dynamic head. Because the 188-0004 is nonautomatic, it requires a piggyback float switch or a control panel to set on and off points in the field. The vortex impeller design allows the pump to pass spherical solids up to 0.75 inches, reducing clog risk and minimizing downtime. The motor housing, pump housing, and base are cast iron. The identification tag, handle, and hardware are stainless steel. Every unit is submerged and tested to its published performance curve before leaving the factory.

This pump is suited for residential and light commercial septic effluent and groundwater removal in deep sump pits or pump tanks where field-adjustable on and off points are required. The nonautomatic configuration makes it a practical choice when a control panel is already part of the system design, or when a piggyback float switch is preferred for simple level control. Licensed plumbers and septic contractors handle installation in accordance with local codes and applicable health department regulations governing effluent and septic system work.

Key Features

• 1.5 HP motor rated at 230 volts, 1 phase, 14 amps
• Vortex impeller passes spherical solids up to 0.75 inches
• Nonautomatic design accepts piggyback float switch or control panel
• Cast iron motor housing, pump housing, and base for durability in demanding environments
• Stainless steel handle, hardware, and identification tag resist corrosion
• Factory submerged and performance-curve tested before shipment
• 20-foot power cord included

Compatibility

Designed as an OEM-style effluent pump for residential and light commercial septic effluent removal systems requiring a nonautomatic submersible pump with external level control.

Installation Notes

Installation should be performed by a licensed plumber or septic contractor in compliance with local plumbing codes and applicable health department requirements. Disconnect and lock out all electrical power before handling the pump or any wiring connections. Ensure the float switch or control panel is properly rated for the pump motor load before connecting. Never operate the pump dry, as this will damage the motor and void any applicable warranty.

Technical Specifications

• Horsepower: 1.5 HP
• Voltage: 230 volts
• Phase: 1 phase
• Amperage: 14 amps
• Max Flow Rate: 116 GPM
• Total Dynamic Head: 30 feet
• Solids Handling: 0.75 inches spherical
• Motor Housing Material: Cast iron
• Hardware Material: Stainless steel
• Cord Length: 20 feet
• UPC: 053514016258

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 188-0004
