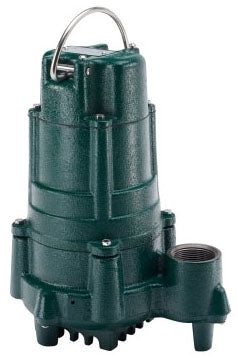

Zoeller 140-0005 Effluent Pump 1 HP 1-1/2 Inch

Product Description

The Zoeller 140-0005 is an efficient effluent and dewatering pump designed for use in septic tanks and low-pressure pipe applications. This pump features a powerful one horsepower motor and is capable of handling various fluid types while ensuring reliable performance.

• 1 HP motor rated at 115 volts

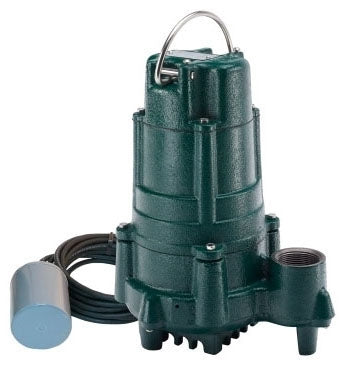

• Variable level float switch included
• Durable cast iron housing for long lasting use

Product Highlights

This pump is engineered with a non-clogging vortex impeller, providing reliable operation in residential or light commercial settings. The cast iron construction and powder coat finish protect against corrosion, making it suitable for harsh environments.

Product Information

Standard Information

• Manufacturer: Zoeller
• MPN: 140-0005

Technical Specifications

• Flow Rate: 86 GPM
• Discharge Head: 50 Foot
• Discharge Size: 1-1/2 Inch
• Shaft Material: JIS S45C Steel
• Housing Material: Cast Iron
• Impeller Material: Thermoplastic
• Power Cord Length: 20 Foot
• Input Supply Rating: 115 Volt AC 60 Hertz 1-Phase 12 Amp
• Speed Rating: 3450 RPM
• Temperature Rating: 130 Deg F
• Applicable Standard: UL 778, CSA (Canada and US), CSA 22.2, SSPMA
