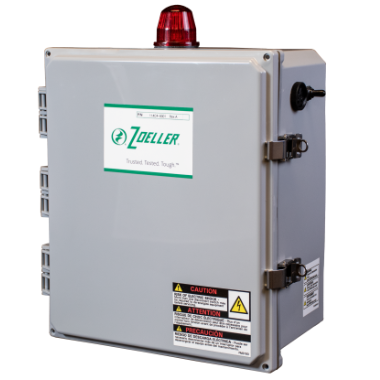

Zoeller 124G4-0001 Pump Controller 200/230/460 V 3 Phase 13-18 A (Duplex)

Product Description

Zoeller 124G4-0001 is a Pivot Pro series duplex pump controller for three-phase pump systems. It accepts 200/230/460 V three-phase supply and supports pumps rated 13–18 A, providing automatic electrical cycling, alarm notification, and serviceable control components. The unit uses 120 VAC control power, features a user interface and RS-485 connectivity option, and is housed in a NEMA 4X lockable enclosure for indoor or outdoor installation.

• Three-phase control for 200/230/460 V supplies; rated for 13–18 A pump motors.
• NEMA 4X lockable enclosure with user interface, audible alarm, and surge protection.
• 120 VAC control power, RS-485 connectivity option, individually fused alarm and control circuits.

Product Highlights

Duplex pivot pro control; 200/230/460 V three-phase; 13–18 A; NEMA 4X enclosure; 120 VAC control power; cCSAus/UL508 and FCC Class-B certifications.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 124G4-0001

Technical Specifications

• Brand: Zoeller
• MPN: 124G4-0001
• Series: Pivot Pro
• Product Type: Duplex control panel / pump controller
• Phase: 3 Phase
• Input Voltage: 200 / 230 / 460 V (multi-tap transformer on 3Ph models)
• Control Power: 120 VAC, 60 Hz
• Current Rating: 13 - 18 Amps
• Enclosure Rating: NEMA 4X, lockable latch
• Enclosure Dimensions: 14 x 12 x 6 inches
• Alarm Features: High-water alarm with light, audible buzzer and silence/reset/test control
• Alarm Buzzer: 95 dB at 2 ft (0.6 m)
• Auxiliary Contacts: Form C (NO-COM-NC), 5A resistive
• Pump Run Contact: Dry contact (NO-COM)
• Terminal Support: Up to 4 float switches (duplex); pump input power terminals (floats sold separately)
• Fusing: Alarm and control circuits individually fused, 3A fast-acting (120 VAC)
• Max Alarm/Control Power Consumption: Duplex models 40 W
• Max Standby Power Consumption: 5 W
• Interface: User-friendly LCD interface
• Connectivity: RS-485 powered serial port for optional Z Control Gateway connectivity (Z Control requires Wi-Fi Gateway 90002-0001)
• Surge Protection: Lightning arrestor
• Controls: HAND/OFF/AUTO for each pump; H-O-A controls
• Certifications: cCSAus certified to UL 508; UL 508A listed; FCC Class-B to ISED Canada ICES-003
• Compatibility (example Zoeller pumps): J189, J295, J404, J405, F651
