Zoeller 124F4-0001 Duplex Pivot Pro Control Panel 9-14 Amp (3 Phase)

Product Description

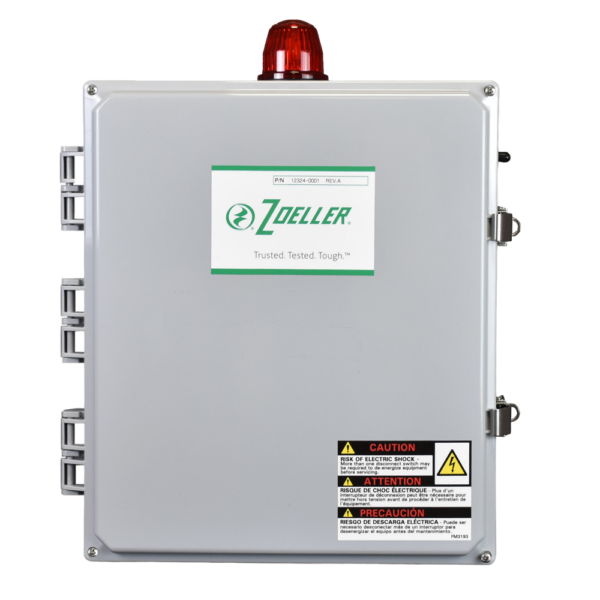

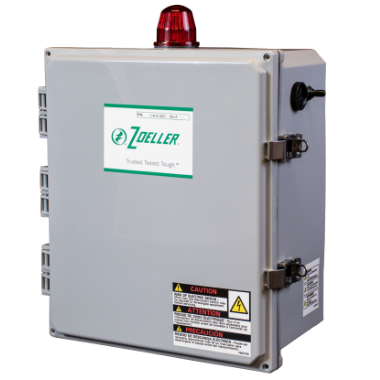

Zoeller 124F4-0001 is a Duplex Pivot Pro control panel for 3-phase pump applications, rated 9-14 amps and compatible with 200/230/460 V supplies. The NEMA 4X lockable enclosure houses a lockable LCD menu, fused control and alarm circuits, and terminals for up to four float switches. The panel provides duplex pump control with lead/lag sequencing, selectable float logic, built-in audible and visual alarms, and provisions for RS-485/Z Control connectivity.

• 3-phase panel for 200/230/460 V service, full load 9–14 A; control power 120 VAC, 60 Hz
• NEMA 4X lockable enclosure with lockable LCD, fused alarm/control circuits, and terminal space for up to 4 float switches
• Duplex pump control with lead/lag selector, selectable float logic, dry auxiliary contacts (Form C), and RS-485/optional Z Control connectivity

Product Highlights

NEMA 4X duplex pump control panel, 200/230/460 V, 9–14 A, lockable LCD, built-in alarms

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 124F4-0001
• Country of Origin: United States (majority made - inferred from site imagery)

Technical Specifications

• Brand: Zoeller
• MPN: 124F4-0001
• Product Type: Control Panel (Pivot Pro Duplex)
• Model Series: Pivot Pro Duplex
• Phase: 3 Phase
• Voltage: 200 / 230 / 460 V
• Amperage: 9 - 14 Amp
• Enclosure: NEMA 4X, lockable
• Enclosure Dimensions: 16.5 x 12 x 21 inches
• Weight: 19.5 lb
• Control Power: 120 VAC, 60 Hz
• Power Consumption: Alarm & control 40 W; standby 5 W
• Interface: Lockable LCD menu
• Alarms: Built-in audible and visual alarms; 360-degree alarm beacon and buzzer (95 dB at 2 ft); seal-fail and thermal trip indicators (require sensors)
• Float Terminals: Terminals for up to 4 float switches
• Modes: Auto, Hand, Service Off, Permanent Off
• Float Logic: Smart or Relay; support for 3 or 4 float; SLLH or SLHL configurations
• Lead/Lag: Lead/lag selector with pump run ratio settings
• Auxiliary Contacts: Dry contacts Form C (NO-COM-NC), 5A resistive
• Communications: RS-485 serial port; compatible with Z Control Cloud via Zoeller Wi-Fi Gateway (90002-0001)
• Mounting: Includes 4 enclosure mounting brackets
• Certifications: cCSAus certified to UL508; FCC Class-B / ISED Canada ICES-003 Issue 6

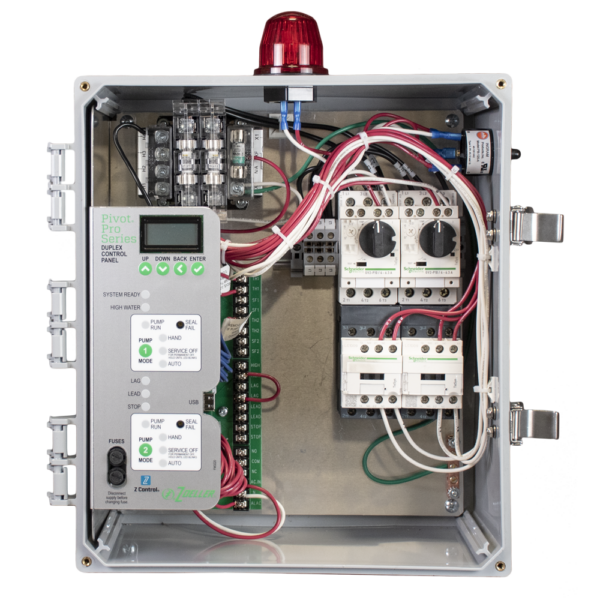

• Control Circuits: Individually fused and serviceable control and alarm circuits
