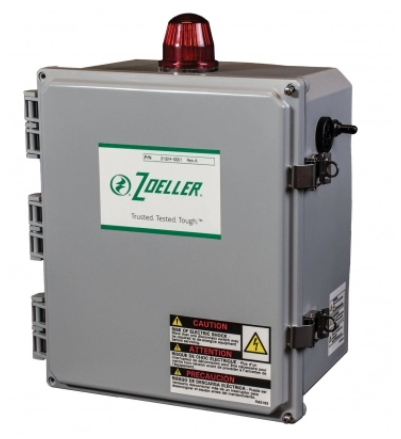

Zoeller 114F4-0001 Pivot Pro Series Simplex Control Panel 200/230/460 V 3-Phase

Product Description

Zoeller 114F4-0001 Pivot Pro Series Simplex control panel automates electrical cycling of a single pump and supports 200/230/460 V three-phase motors rated 9-14 A. It is enclosed in a NEMA 4X 14 x 12 x 6 in lockable housing and features an LCD interface, red 360-degree alarm beacon, 95 dB audible buzzer, HAND/OFF/AUTO controls, RS-485 port, auxiliary dry contacts, multi-tap transformer, and fused control and alarm circuits. Certifications: cCSAus (UL508) and FCC Class-B.

• NEMA 4X 14 x 12 x 6 in lockable enclosure for indoor or outdoor use
• Supports 200/230/460 V three-phase motors, 9-14 A; multi-tap transformer and individually fused control and alarm circuits
• LCD interface, HAND/OFF/AUTO controls, RS-485 communications, red 360-degree beacon, and 95 dB audible alarm

Product Highlights

Simplex pump control for 200/230/460 V 3-phase motors with NEMA 4X enclosure, integrated alarm system, RS-485 connectivity, and fused serviceable circuits.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 114F4-0001

Technical Specifications

• Brand: Zoeller
• MPN: 114F4-0001
• Model/Series: Pivot Pro Series
• Product Type: Simplex Control Panel
• Input Voltage: 200/230/460 V (multi-tap)
• Phase: 3 Phase
• Amperage: 9-14 Amps
• Enclosure Rating: NEMA 4X
• Enclosure Dimensions: 14 x 12 x 6 in
• Enclosure Lockable: Yes
• Indoor/Outdoor: Indoor or outdoor use
• Controls: HAND/OFF/AUTO; SILENCE/RESET/TEST toggle
• Interface: LCD
• Alarm Beacon: Red 360-degree visibility
• Audible Alarm: 95 dB at 2 ft (0.6 m)
• Communications: RS-485 (12 VDC, 2W) serial port for Z Control Gateway
• Auxiliary Contacts: Dry contacts (NO-COM-NC), Form C, 5A resistive
• Pump Run Contact: Dry contact (NO-COM)
• Control Power: 120 VAC, 60 Hz
• Alarm Power: Terminal provision for separate 120 VAC control/alarm power
• Fusing: Alarm and control circuits individually fused, 3A fast-acting, 120 VAC
• Max Alarm/Control Power: 32 W (Simplex)
• Max Standby Power: 5 W
• Transformer: Multi-tap 200/230/460 V transformer
• Mounting: 4 enclosure mounting brackets included
• Serviceability: All components serviceable; wires and terminal locations labeled
• Certifications: cCSAus certified to UL508; FCC Class-B (ISED Canada ICES-003)
• Compatible Pumps: J186, J188, F189, J294, F295, F404, F405, J820, F820, J841, F841, J842, F842, J641, F641, G661
