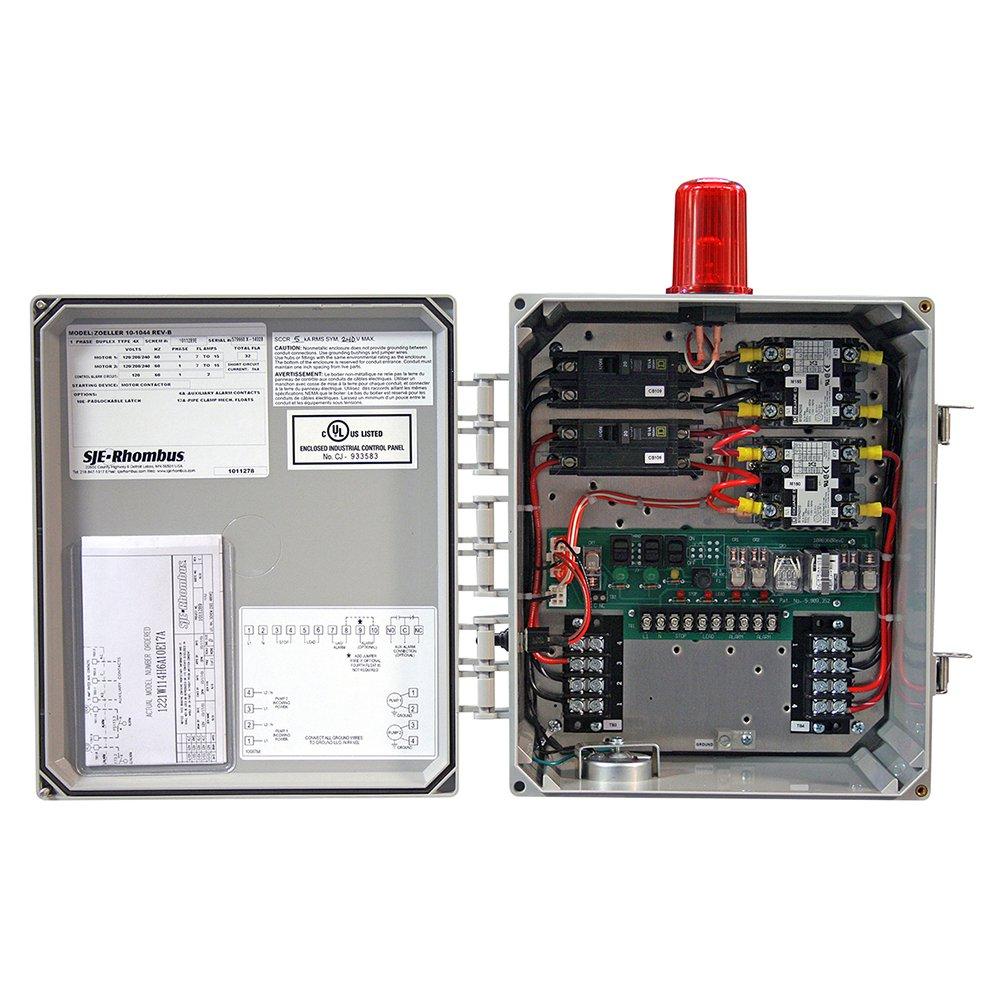

Zoeller 10-1044 Electrical Alternator Duplex Control Panel NEMA 4X Enclosure 115V/200V/230V

Product Description

The Zoeller Pump Co Electrical Alternator Duplex Control Panel 10-1044 is designed for use in both residential and commercial applications. This panel enables automatic electrical cycling of pumps, ensuring effective water level management. It operates on voltages of 115, 200, or 230 VAC and is suited for duplex pump applications.

• Green pump run pilot light for each pump
• Alarm test and silence switches
• High water alarm with red alarm beacon

Product Highlights

This control panel features a NEMA 4X watertight enclosure for indoor and outdoor use, making it ideal for various environments. The integral alarm system provides notification when the second pump activates due to high water levels.

Product Information

Standard Information

• Manufacturer: Zoeller Pump Co
• Part Number: 10-1044

Technical Specifications

• Voltage Rating: 115/200/230 VAC
• Amperage Rating: 7 to 15 A
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Enclosure Type: NEMA 4X
• Dimensions: 10 inches W x 6 inches D x 12 inches H
