Product Description
The Zoeller 10-1036 is a simplex pump control panel designed for efficient operation. This model operates on 115/200/230 volts AC and features overall dimensions of six inches in width, four inches in depth, and eight inches in height. It is suitable for use with various pump assemblies.
- Simplex type control panel
- Voltage ratings of 115, 200, and 230 VAC
- NEMA 4X enclosure for enhanced protection
Product Highlights

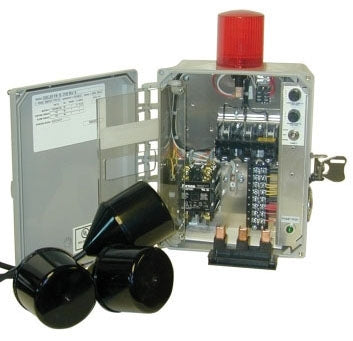

This control panel includes functionalities such as a hand-off-auto toggle switch, a pump run pilot light, and high water alarms to ensure safe operation.
Product Information
Standard Information
-
Manufacturer: Zoeller
-
Parts Included: (3) 20-foot float switches and additional features
Technical Specifications
-
MPN: 10-1036
-
Voltage Rating: 115/200/230 Volt AC
-
Number of Phases: 1
-
Enclosure Type: NEMA 4X
-
Overall Dimensions: 6 inches width x 4 inches depth x 8 inches height
-
Fuse Clip Size: 0 to 7 Amp
-
Inclusions/Features: Green pump run pilot light, alarm test switch, circuit breaker, and more
