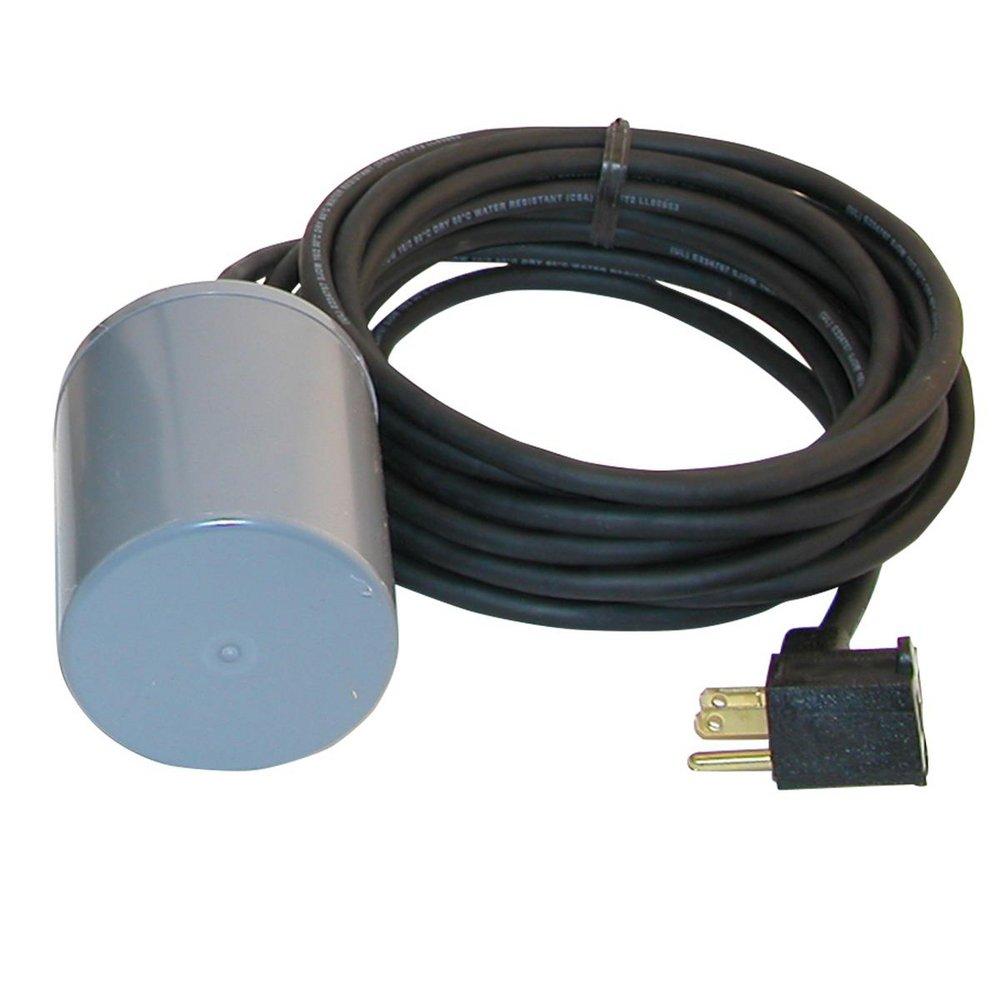

Zoeller 10-0063 13A 20 ft. Plastic 115V Pump Switch for N Models 53, 55, 57, 59, 98, 137, 139, 140, 264, 266, 267, 268, and 282

Product Description

The Zoeller Pump Co 10-0063 is a 13A 20 ft. Plastic 115V Pump Switch designed for N models including 53, 55, 57, 59, 98, 137, 139, 140, 264, 266, 267, 268, and 282. This switch allows a non-automatic pump to operate automatically by using a piggyback float mechanism.

• Features heavy-duty contacts for reliable operation.
• Suitable for sewage, effluent, and dewatering applications.
• Compatible with vertical narrow basin installations.

Product Highlights

This switch provides a simple installation process with adjustable levels. It comes with a 20 ft. cord and has an omnidirectional float, meaning it operates regardless of orientation.

Product Information

Standard Information

• Brand: Zoeller Pump Co
• MPN: 10-0063

Technical Specifications

• Voltage Rating: 115 VAC
• Switch Type: Normally Open
• Rated Current: 13 Amps
• Cord Length: 20 ft
• Body Material: PVC
• Temperature Rating: Up to 140°F
• Compatible Models: 53, 55, 57, 59, 98, 137, 139, 140, 264, 266, 267, 268, 282
• Install Type: Piggyback float installation
