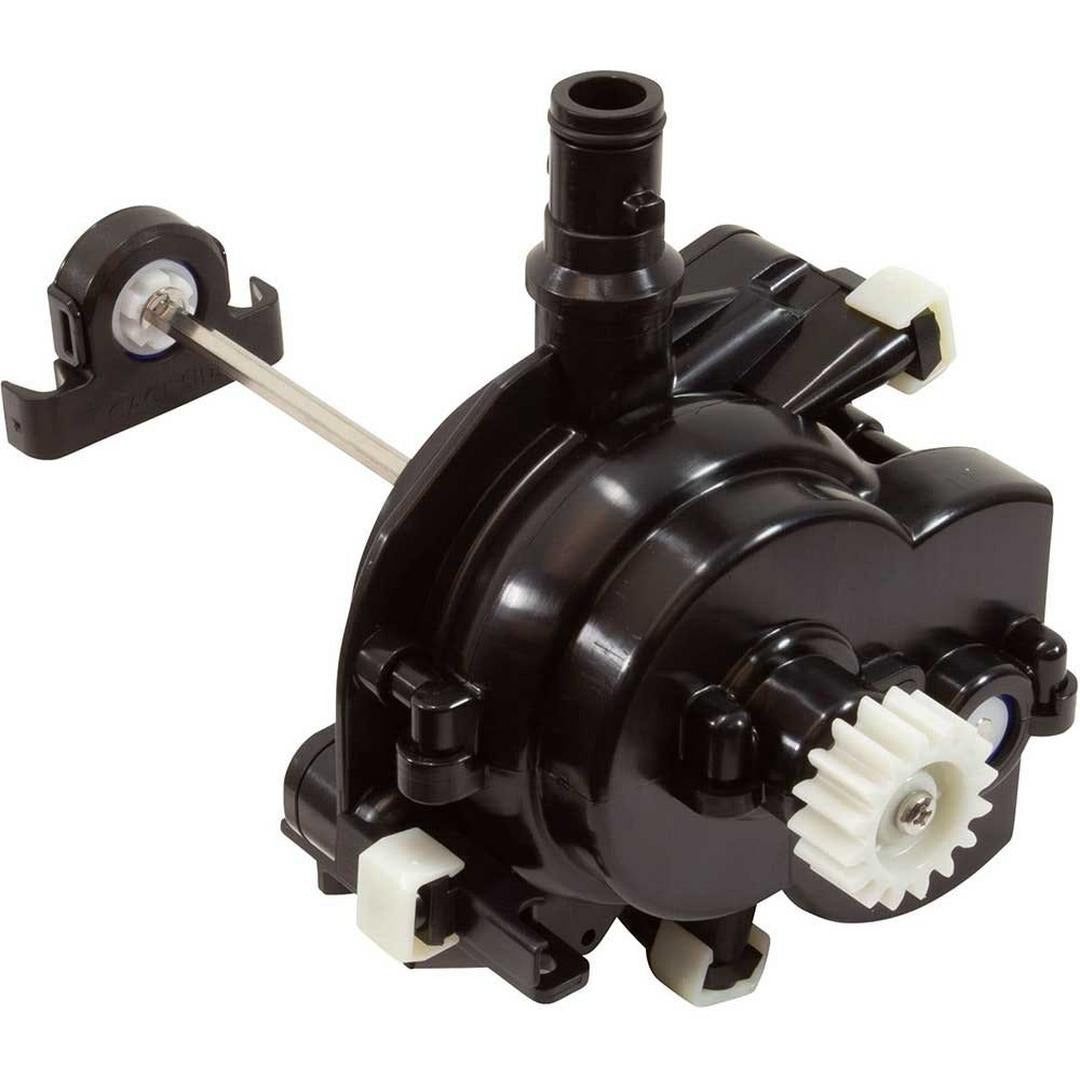

Zodiac R1109500 Engine Assembly Polaris Quattro P40 Sport

Product Description

The ZODIAC R1109500 is an OEM replacement engine assembly with O-ring designed for Polaris Quattro pressure-side automatic pool cleaners. This assembly houses the internal drive mechanisms responsible for wheel propulsion, movement across pool surfaces, and operation of the debris collection system. A failing engine assembly typically presents as weak or erratic movement, loss of climbing ability, or inconsistent cleaning coverage. Installing this factory-engineered unit restores full drive function and cleaning performance. The included O-ring provides a leak-free seal at the assembly interface for reliable long-term operation. This part is intended for installation by pool service professionals familiar with pressure-side cleaner repair.

This engine assembly is a direct fit for the Polaris Quattro P40 and Quattro Sport pressure-side pool cleaners. These cleaners are used in residential in-ground pools and rely on the pressure-side return line for propulsion and debris pickup. The engine assembly is the core mechanical unit within the cleaner body, making it a primary replacement component when drive or movement issues are diagnosed. Technicians servicing Polaris Quattro-series units should confirm the model designation before installation to ensure proper fitment.

Key Features

• OEM replacement part engineered to factory specifications for the Quattro P40 and Quattro Sport
• Houses internal drive mechanisms that control wheel movement and cleaner propulsion
• Restores climbing ability and full-surface cleaning coverage when original assembly has worn or failed
• Includes O-ring for a secure, leak-free seal at the assembly mounting point
• Factory-engineered construction supports consistent operation over extended service cycles

Compatibility

Designed as an OEM-style replacement engine assembly for the Polaris Quattro P40 and Polaris Quattro Sport pressure-side automatic pool cleaners.

Installation Notes

Installation should be performed by a qualified pool service technician. Before disassembling the cleaner, disconnect it from the pressure-side return line and remove it from the pool. Follow the manufacturer service documentation for proper disassembly sequence and O-ring seating procedures. Inspect surrounding components for wear before reassembling to avoid repeat service calls.

Technical Specifications

• Included Components: Engine assembly, O-ring
• Application: Pressure-side automatic pool cleaner
• Part Type: OEM replacement

Standard Information

• Brand: ZODIAC
• Manufacturer Part Number: R1109500
