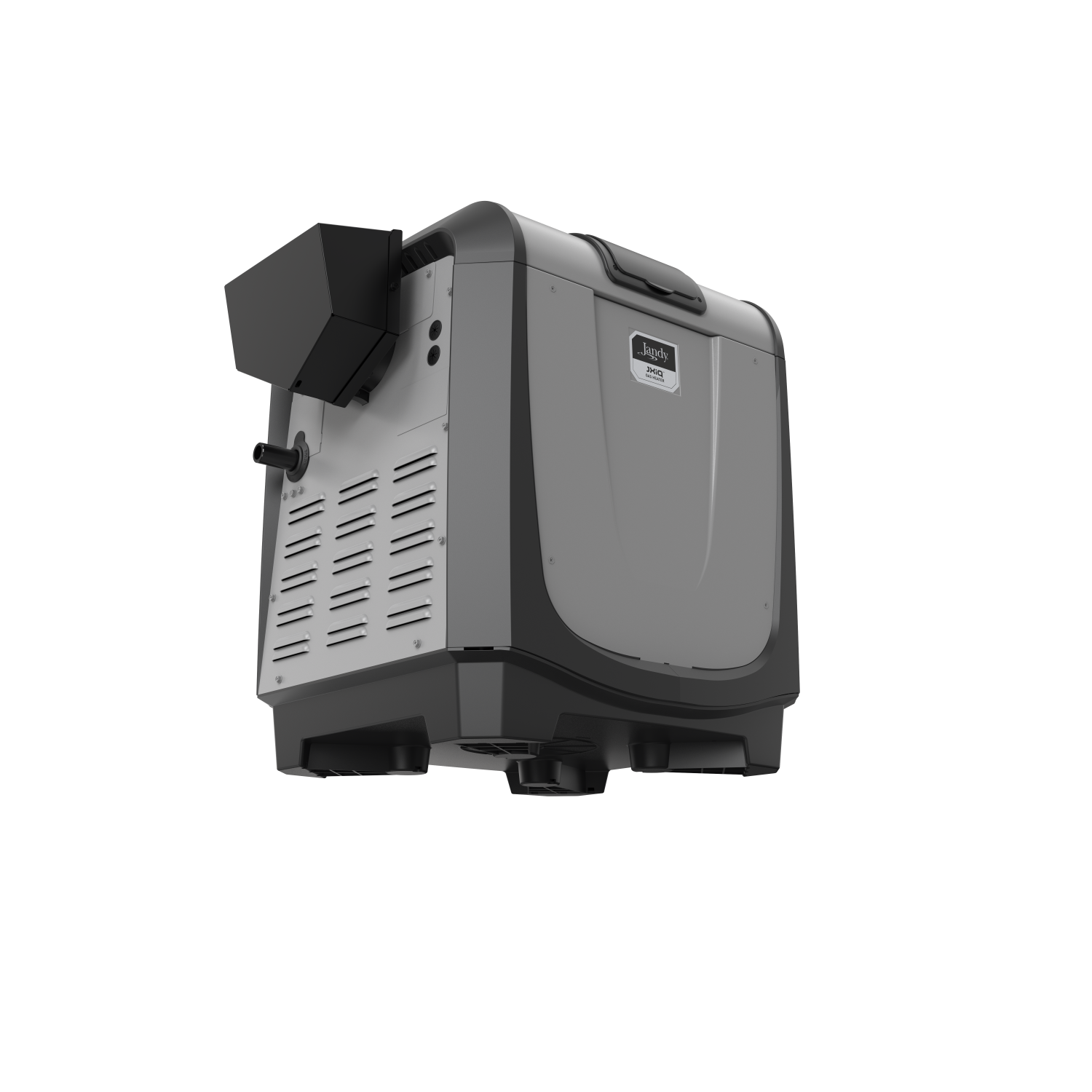

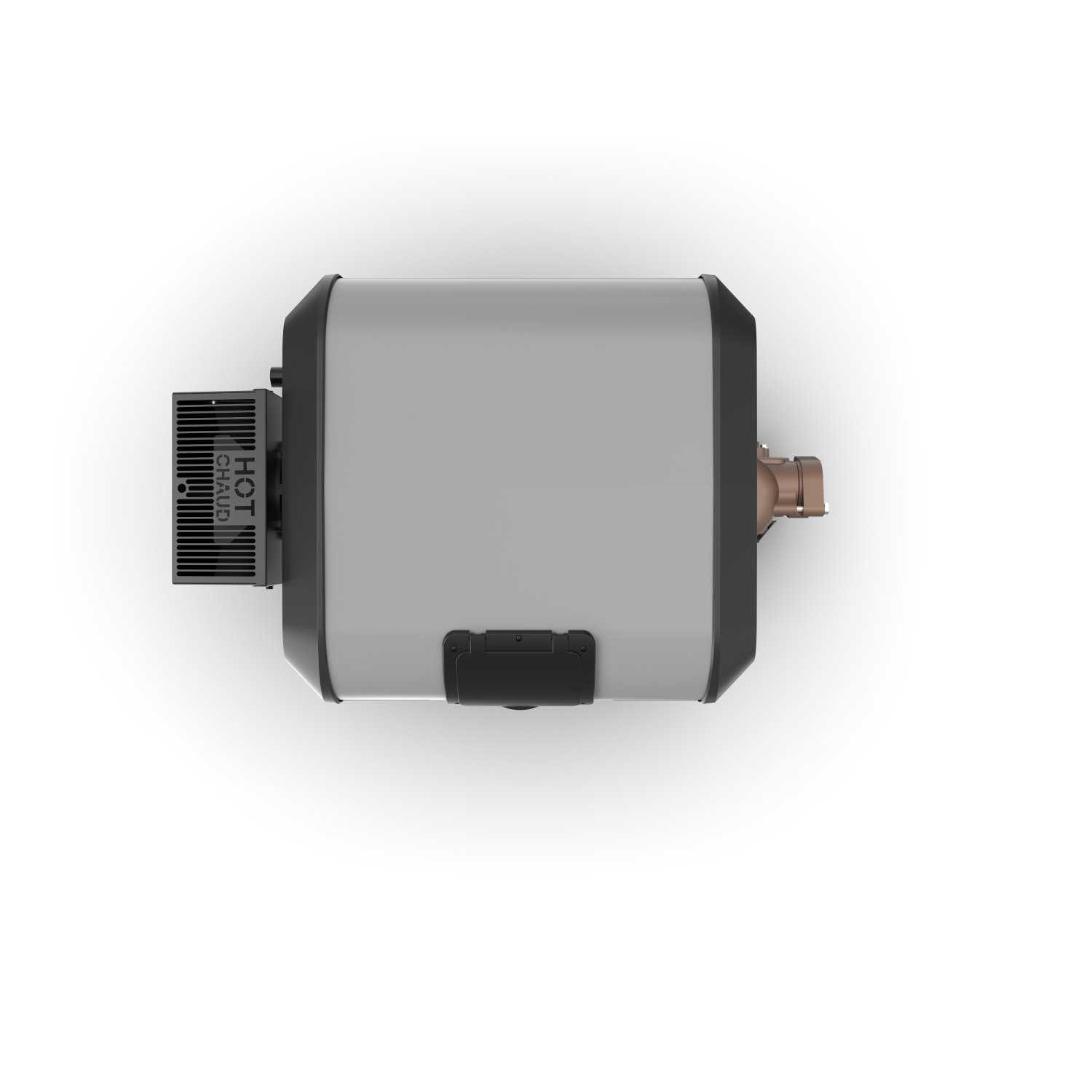

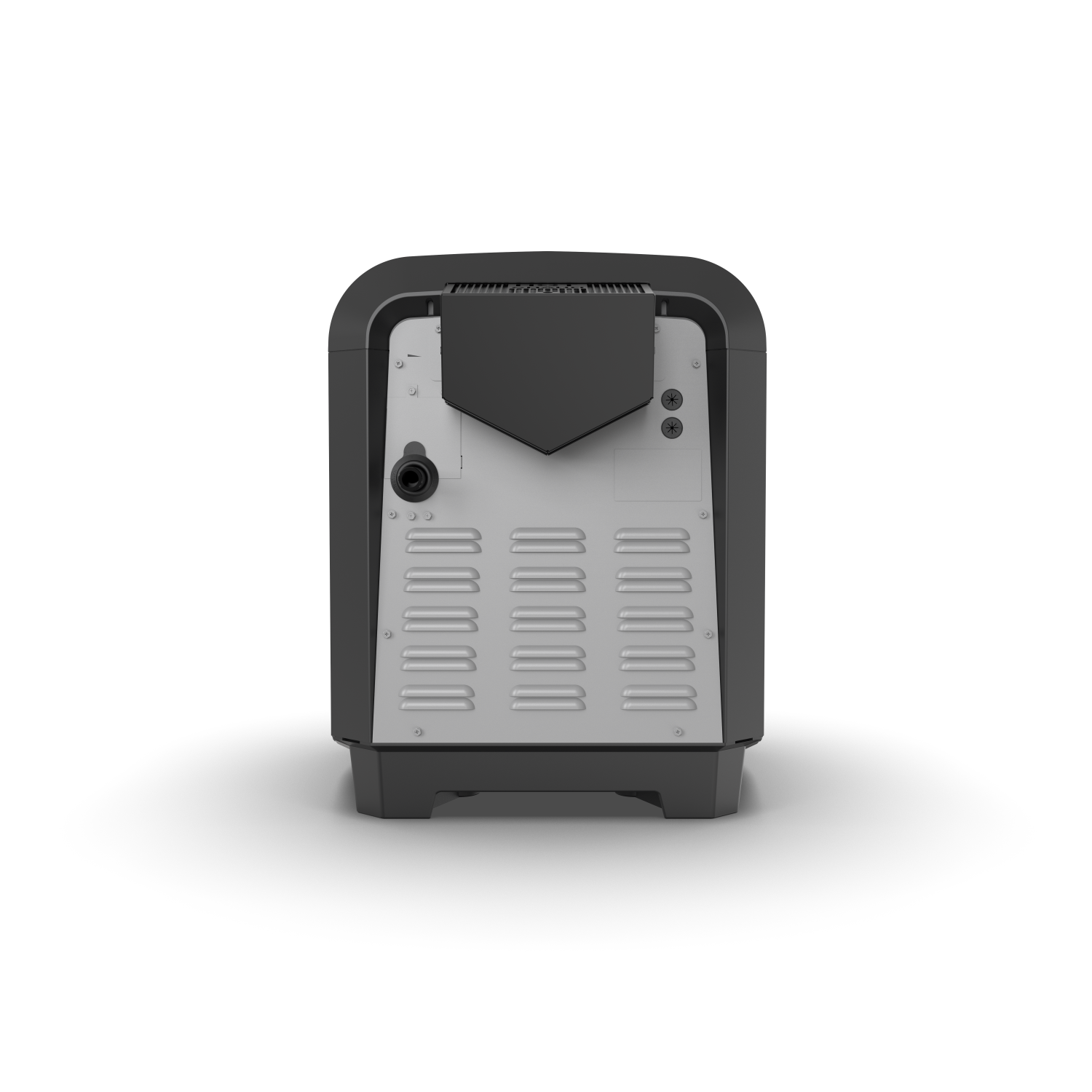

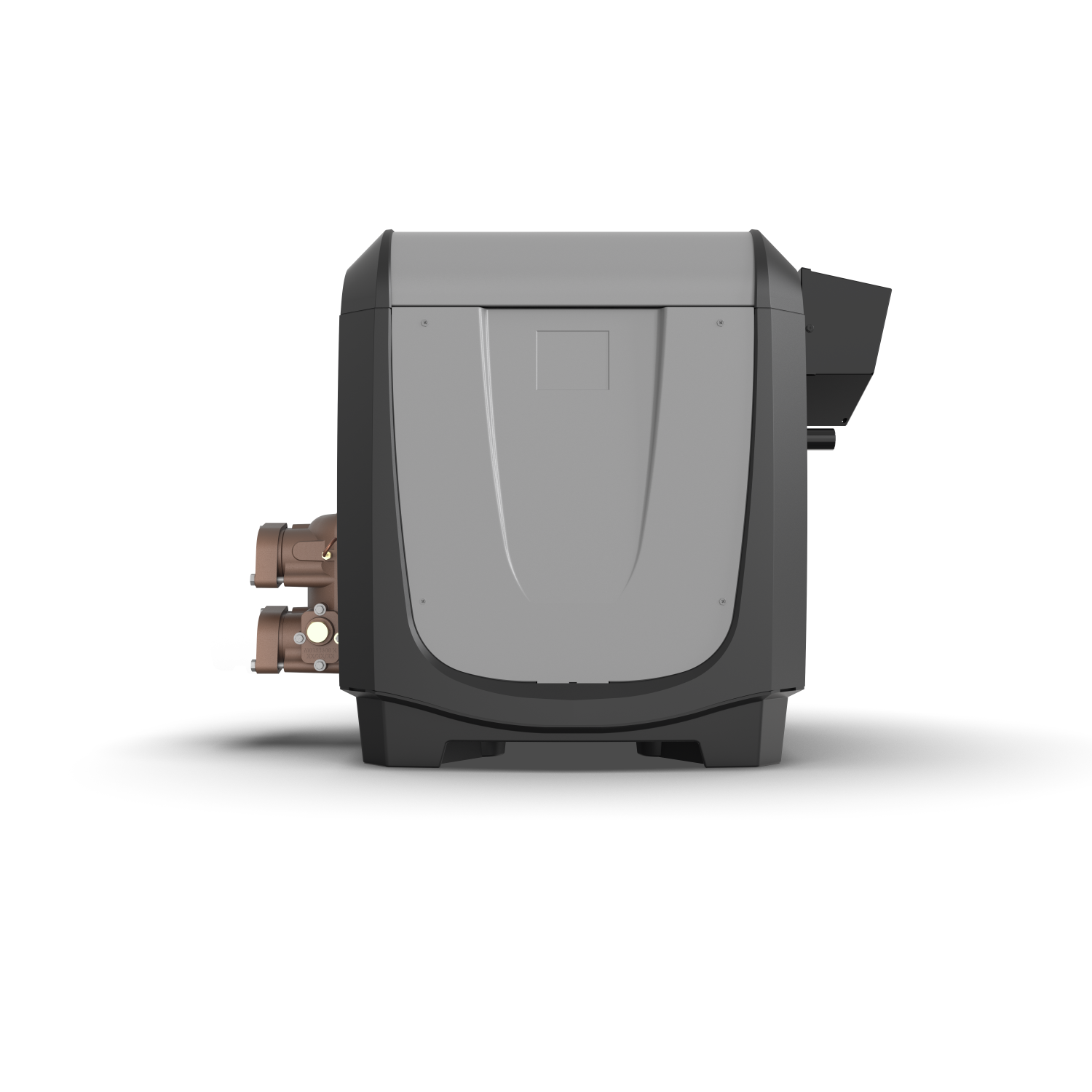

Zodiac JXIQ260NS Jandy JXi260N Pool and Spa Heater - Natural Gas

Product Description

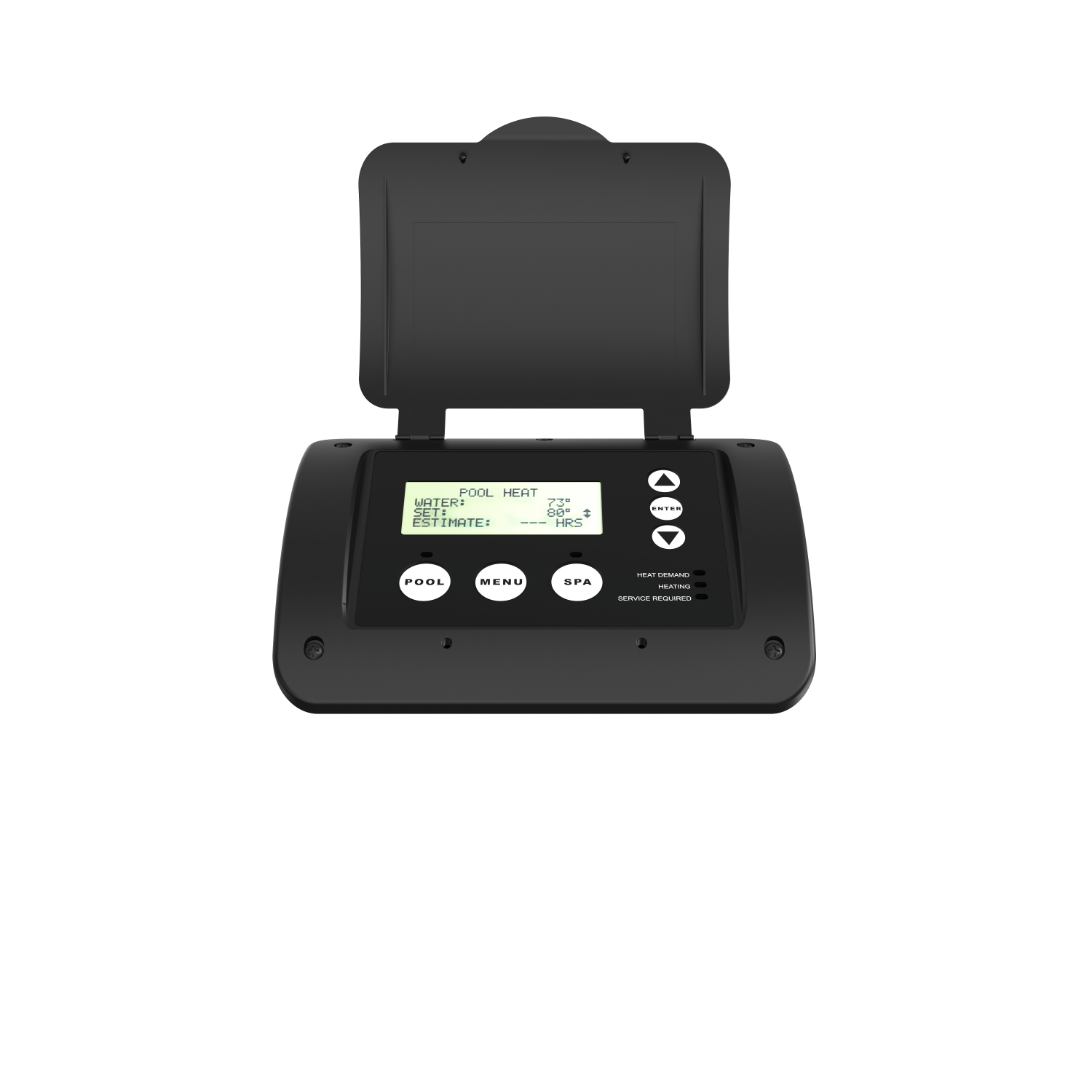

The Zodiac Jandy JXi260N Pool and Spa Heater, model JXIQ260NS, runs on natural gas with an input rate of 260K BTUH. This heater is suitable for pools up to four hundred square feet and maintains an efficiency of eighty-four percent. It works with both copper and cupronickel materials. The unit intelligently adjusts to incoming power and measures temperature increases for optimal flow. It can predict the time necessary to achieve the targeted water temperature. The compact design aids in storage, transport, and installation. It also interfaces with AquaLink systems for convenient remote operation. Corrosion-resistant temperature sensors are included along with a thermal regulator valve for effective temperature management.

• Supports natural gas heaters with BTU ratings from two hundred thousand to four hundred thousand BTU.
• Features automatic flow bypass activation based on heat needs, eliminating manual adjustment.
• Designed for flexibility in installation, allowing for replacements with Mastertemp and Max-E Therm without plumbing changes.

Product Highlights

This heater offers ease of use and compatibility for both residential and commercial pool settings.

Product Information

Standard Information

• Brand: Zodiac
• Model Number: JXIQ260NS

Technical Specifications

• BTU Ratings: From 200K to 400K BTU
• Heater Material Compatibility: Copper, Cupronickel
• Fuel Type: Natural Gas
• Efficiency: 84%
• Dimensions: Depth 22.1 inches, Height 26.5 inches, Width 23.3 inches
• Input Rate BTUH: 260K BTUH
• Max GPM: 100
• Min GPM: 30
• Pool Surface Area: Up to 400 square feet
• Vent Diameter: 7 inches
• Weight: 137 lbs
