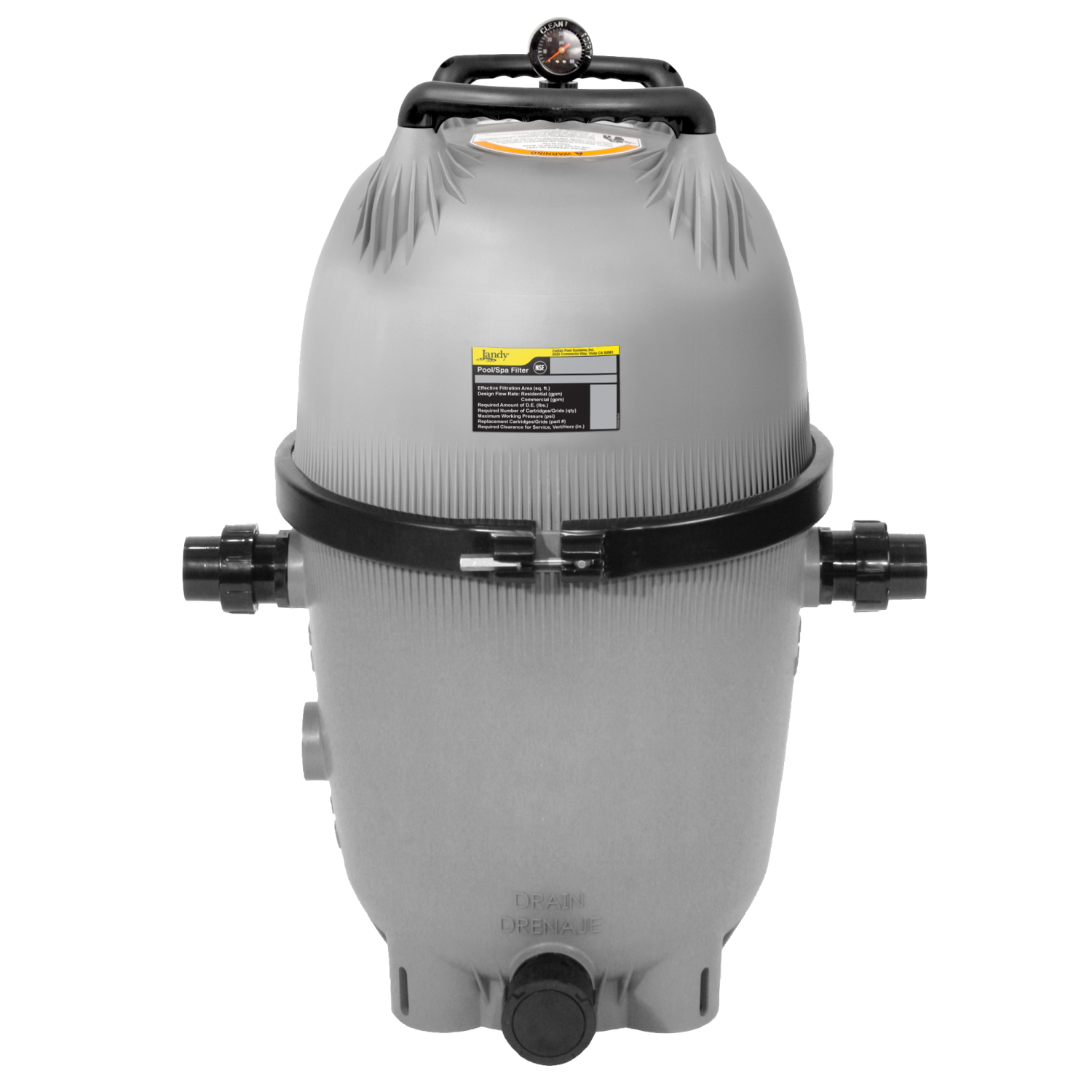

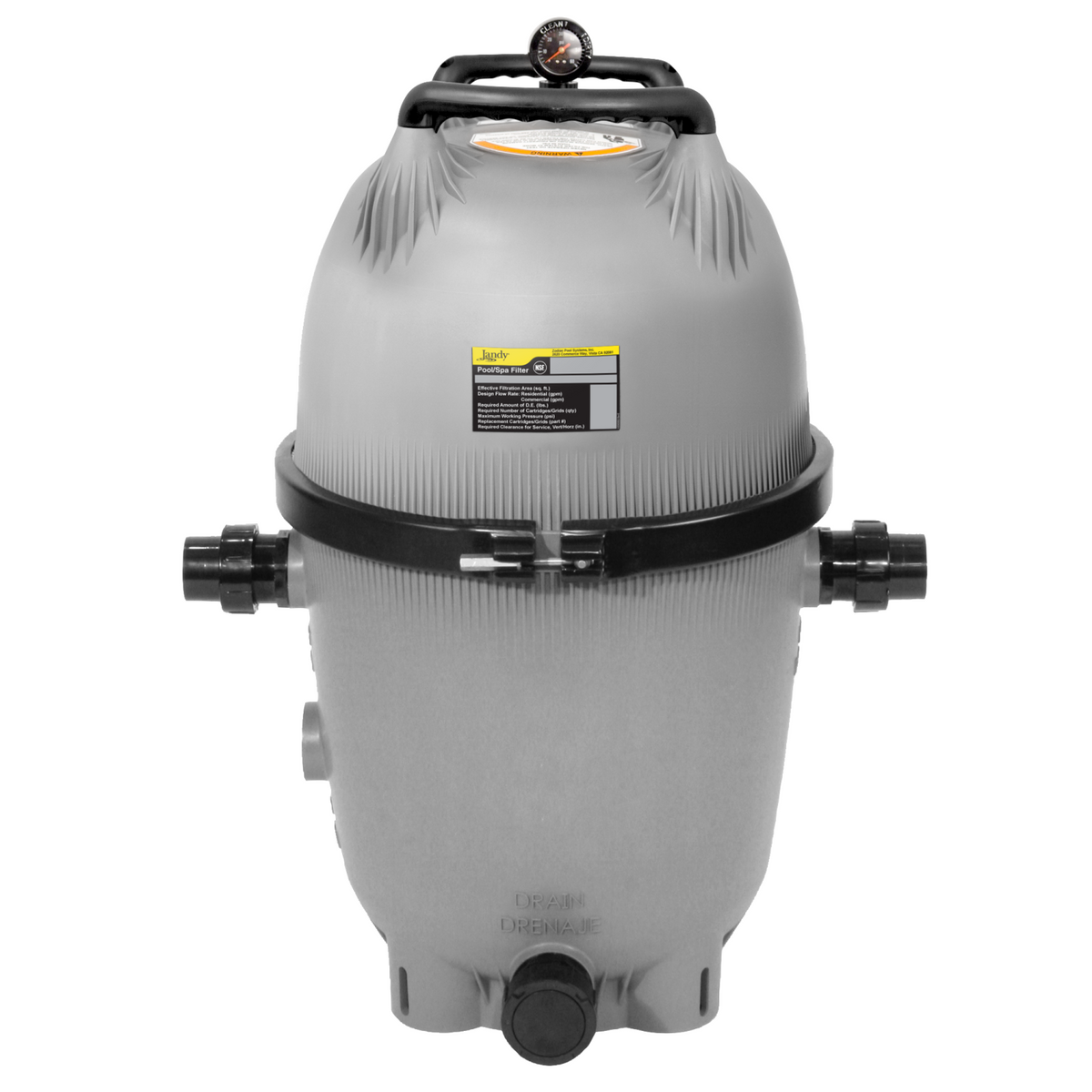

Zodiac CV340 CV Series Cartridge Filter 340 Sq. Ft.

Product Description

The ZODIAC CV340 Jandy® CV Series Filter utilizes the filter’s total surface area, providing clear water and extending cleaning cycles. Designed to integrate with Jandy products using the Versa Plumb® system, this filter is equipped for high flow rates and optimum hydraulic performance. Constructed from corrosion-resistant polymeric materials for lasting performance.

• Takes advantage of the filter’s total surface area
• Provides the clearest possible water
• Extending cleaning cycles

Product Highlights

Offers clear water, extended cleaning, and efficient integration with Jandy systems.

Product Information

Standard Information

• Brand: ZODIAC
• Manufacturer Part Number: CV340

Technical Specifications

• Filter Area: 340 sq. ft.
• Design Flow Rate: .37 gpm/sq. ft.
• Maximum Flow: 127 gpm
• Six (6) Hour Capacity: 45,720 gallons
• Eight (8) Hour Capacity: 60,960 gallons
• Maximum Working Pressure: 50 PSI
• Filter Type: Large Cartridge
• Height: 41"
• Filter Diameter: 25"
• Distance Between Inlet and Outlet: N/A
