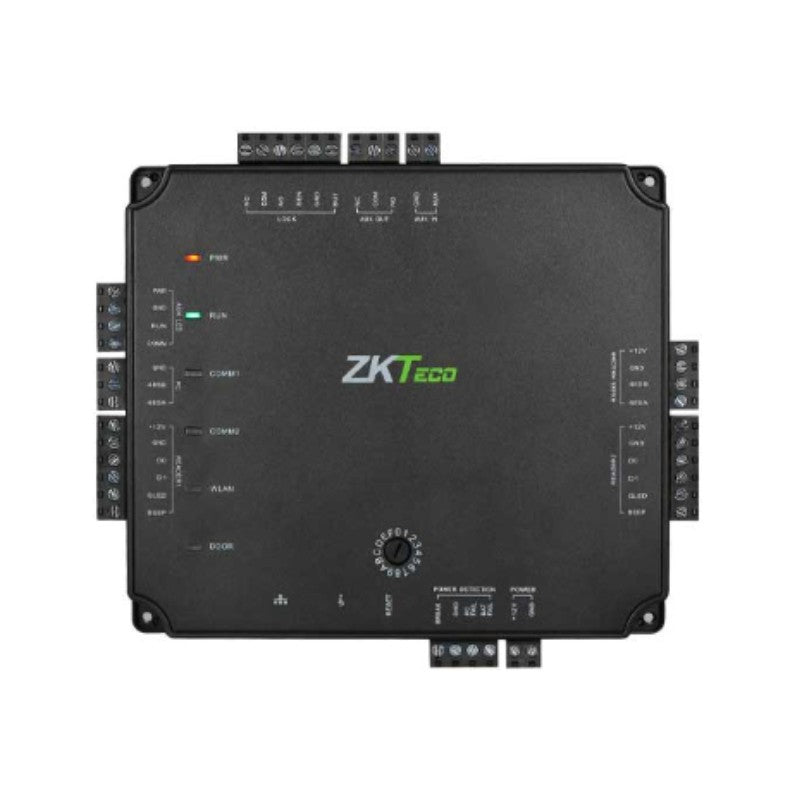

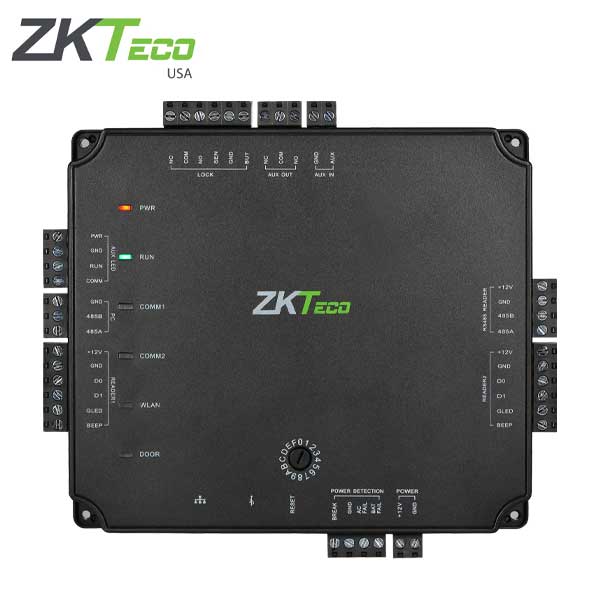

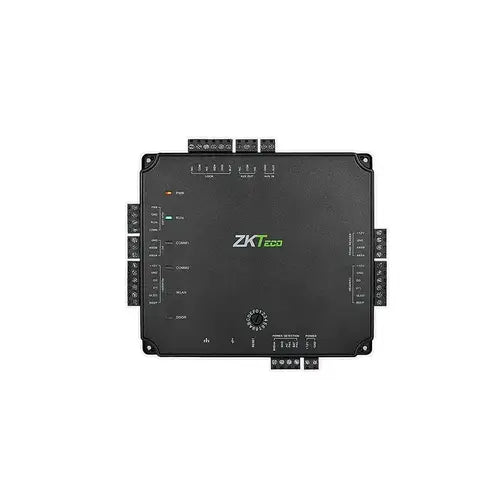

Zkteco Atlas100 BUN One-door Prox Access Control Panel w/ Power Supply and Cabinet

Product Description

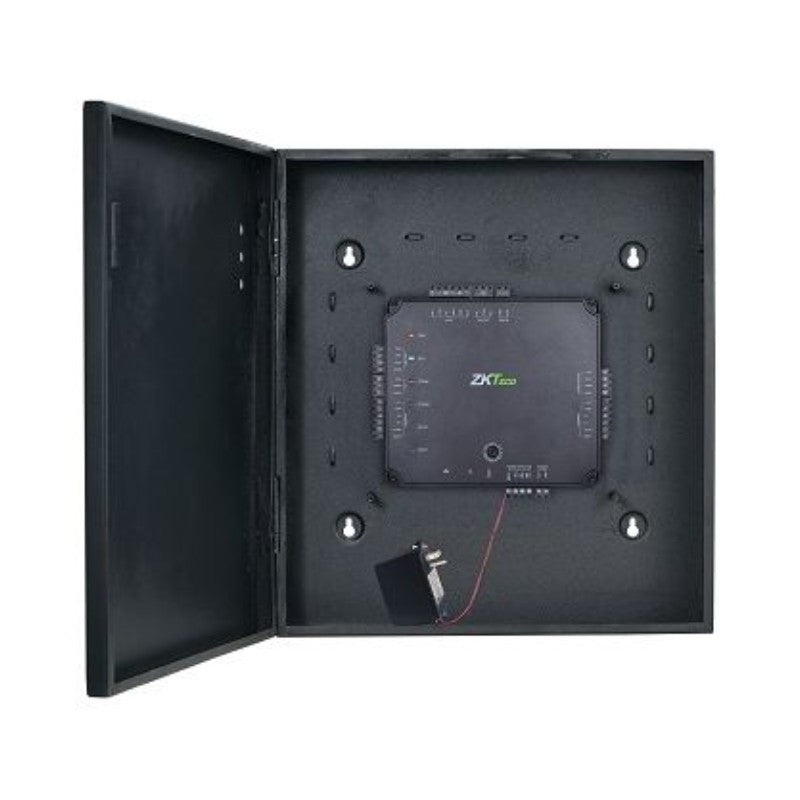

The ZKTeco Atlas100 BUN one-door access control panel is designed for simple and affordable access control. This panel features an embedded web application, eliminating the need for software. It supports Power over Ethernet (PoE) and Wi-Fi communication. The bundle includes a metal enclosure and power supply.

• Manage from the built-in web application; no software required.
• Supports up to 84 doors (21 panels).
• Supports both Wiegand & OSDP readers.

Product Highlights

This access control panel offers easy management, supports multiple doors and readers, and provides advanced access control features without the need for software.

Product Information

Standard Information

• Brand: ZKTeco
• Manufacturer Part Number: Atlas100 BUN

Technical Specifications

• Vendor Item No.: ATLAS100 BUN
• Item Category Code: ACCESS CONTROL
• Number of Doors Controlled: One Door
• Number of Readers Supported: 2 (Wiegand or OSDP Readers)
• Types of Readers Supported: ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers
• Number of Inputs: 3 (1 Exit Button, 1 Door Sensor, 1 Aux)
• Number of Outputs: 2 (1 Form C relay for lock and 1 Form C relay for Aux output)
• User Capacity: 5000
• Events Database Capacity: 10,000 transactions plus unlimited archive downloads
• Communication: TCP/IP, Wi-Fi, Wiegand, OSDP
• Browsers Supported: Chrome, Firefox, Edge
• Enclosure: Powder Coated Aluminum
• Mounting: Wall Mount
• Recommended Power Supply: 12V DC, 3A (PoE)
• Advanced Access Control Features: No software required. Built-in Web Application provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.
• Door Control and More: User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch.
• Capacity: Atlas Series supports up to 84 doors when adding multiple secondary Atlas Series panels to the primary Atlas Series panel. Each Atlas panel can store up to 5,000 cards and 10,000 transactions
• Choice of Readers: Atlas Series supports any 3rd-party readers which communicates with Wiegand or OSDP communication protocols.
• Number of Doors: 1
• Function: Ingress/Egress Control
• Sub-Series: ATLAS100-BUN
• Application: Built-in Web Application
• Voltage: 12 VDC
• Product Type: Access Control Part/Accessory
• Series: Access Control Accessory
• Power: 3A
• NDAA Compliance: No
