Zircon 69590 Stud Finder Lcd Deep Scan 1.5 Inches

Product Description

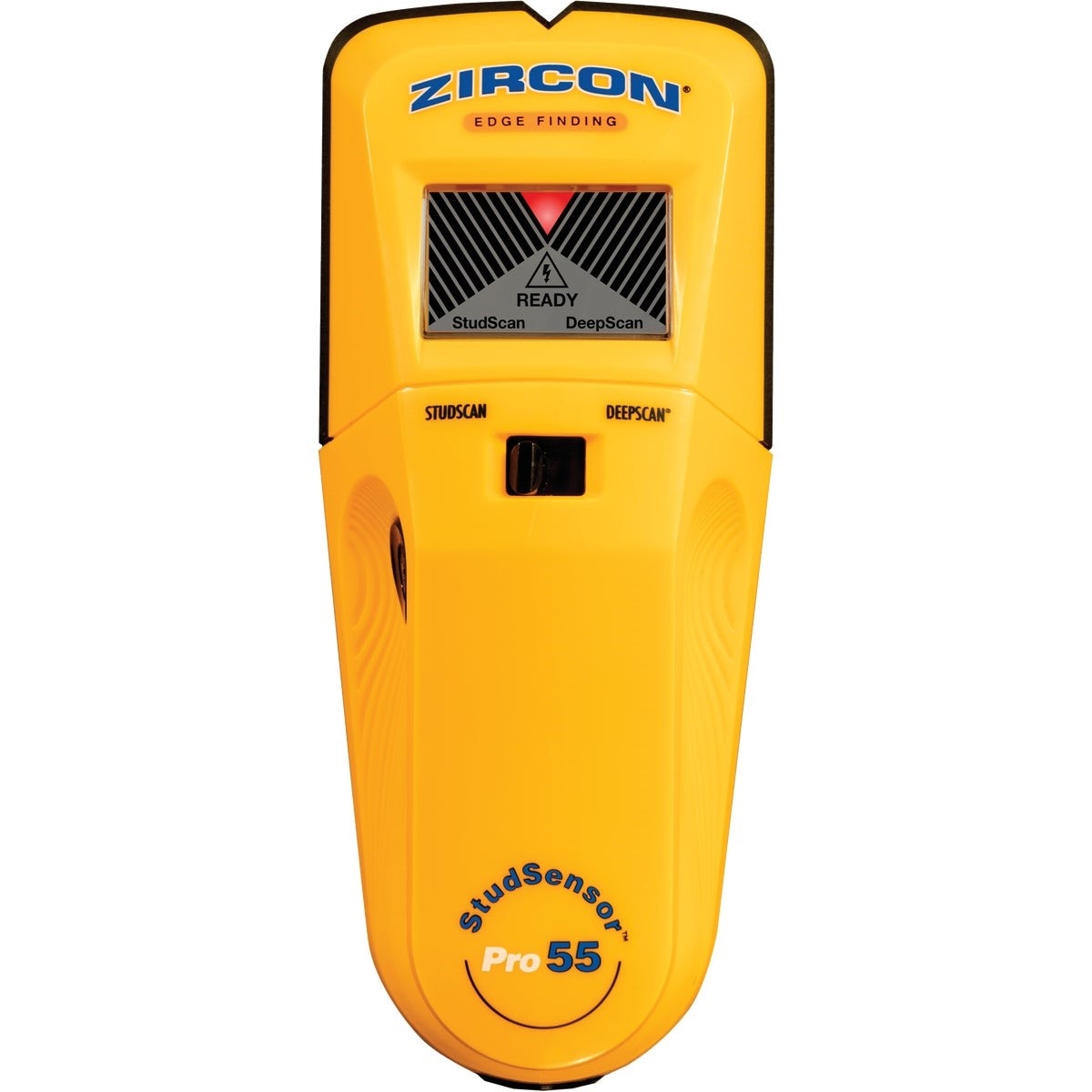

The ZIRCON 69590 StudSensor Pro55 SL is a handheld stud finder designed to locate wood and metal studs, joists, and hot AC wires behind walls, floors, and ceilings. It operates in two scan modes: a standard 0.75-inch depth mode and a patented DeepScan mode that reaches up to 1.5 inches deep. An easy-to-read LCD displays scan results, while the patented SpotLite Pointing System, audio signal, and LEDs mark the edges of detected studs with precision. Licensed electricians, HVAC installers, plumbers, and general trade contractors use this tool when securing equipment, mounting hardware, or running lines through framed assemblies.

The 69590 is suited for residential and light commercial applications where precise framing layout is required before drilling, fastening, or cutting into walls, floors, or ceilings. It detects both wood and metal studs in standard framed construction. The built-in AC wire detection continuously monitors for the presence of unshielded hot 120 VAC wiring in all modes, including wires routed through plastic conduit or Romex cable, providing a critical safety check before penetrating any surface.

Key Features

• Dual scan modes: standard 0.75-inch depth and patented DeepScan mode up to 1.5 inches
• Detects both wood and metal studs and joists
• Continuous hot AC wire detection in all modes for 120 VAC unshielded wiring
• Patented SpotLite Pointing System with LED edge indicators and audio signal
• LCD screen for clear, easy-to-read scan results
• Nonmarring wall pads protect finished surfaces during scanning

Compatibility

Designed for use on standard residential and light commercial framed walls, floors, and ceilings; compatible with wood and metal stud construction up to 1.5 inches of surface material depth.

Installation Notes

This tool is used by trade professionals before drilling, cutting, or fastening into framed surfaces. Always verify AC wire detection results before penetrating any wall, floor, or ceiling cavity. Calibrate the device away from the target surface as directed in the product manual before each scan. Use alongside voltage testers and other detection equipment when working near live electrical circuits.

Technical Specifications

• Scan Depth (Standard Mode): 0.75 inches
• Scan Depth (DeepScan Mode): 1.5 inches
• AC Wire Detection Voltage: 120 volts AC
• Display: LCD
• Detection Targets: Wood studs, metal studs, joists, hot AC wires
• Weight: 0.834 pounds
• UPC: 00042186695915

Standard Information

• Brand: ZIRCON
• Manufacturer Part Number: 69590
