Zing Green Safety 7545 Aluminum Hasp Red Dipped 1 Inch

Product Description

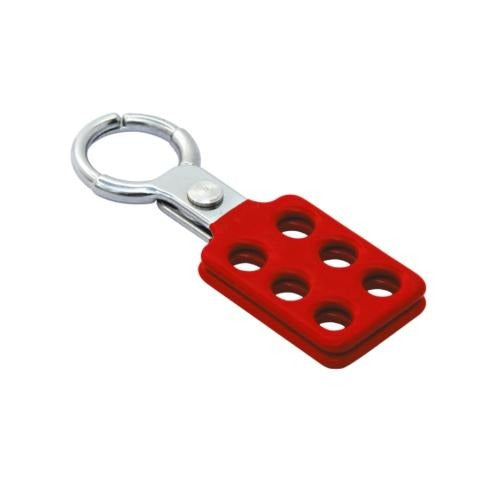

The ZING GREEN SAFETY 7545 is a red dipped aluminum lockout hasp designed for use in energy isolation and lockout/tagout (LOTO) procedures. The hasp accommodates up to 6 padlocks simultaneously, making it suitable for multi-trade or group lockout scenarios where several workers must maintain independent control over an energy source. The jaw accepts padlock shackles up to 0.35 inches in diameter. The red dipped coating provides high visibility and a secure, easy-grip surface for field handling.

This hasp is used in industrial, commercial, and trade environments where OSHA 29 CFR 1910.147 lockout/tagout compliance is required. Electricians, HVAC technicians, plumbers, and other service trades use multi-lock hasps when multiple workers are servicing shared equipment such as electrical panels, HVAC air handling units, chillers, boilers, or pump systems. The 1-inch jaw diameter is a standard fit for most lockout applications on valve stems, circuit breaker handles, and similar attachment points.

Key Features

• Accepts up to 6 padlocks simultaneously for multi-worker group lockout
• Padlock shackle capacity up to 0.35 inches in diameter
• Red dipped coating increases visibility and improves grip
• Aluminum construction keeps weight low while maintaining durability
• 1.5-inch jaw diameter fits standard lockout attachment points
• Compact profile at 2.5 inches high by 5 inches wide by 0.35 inches deep

Compatibility

Designed as an OEM-style lockout hasp compatible with standard padlocks having a shackle diameter up to 0.35 inches. Fits typical lockout/tagout applications across electrical, HVAC, plumbing, and general industrial service work.

Installation Notes

Lockout hasps are installed by qualified personnel following a written LOTO program in accordance with OSHA 29 CFR 1910.147. Before applying the hasp, de-energize and isolate all energy sources for the equipment being serviced. Each worker must apply their own individual padlock to the hasp before work begins and remove only their own lock upon completion. Do not use this hasp as a substitute for a full site-specific energy control procedure.

Technical Specifications

• Material: Aluminum with red dipped coating
• Maximum Padlock Capacity: 6 locks
• Maximum Shackle Diameter: 0.35 inches
• Jaw Diameter: 1.5 inches
• Height: 2.5 inches
• Width: 5 inches
• Depth: 0.35 inches

Standard Information

• Brand: ZING GREEN SAFETY
• Manufacturer Part Number: 7545
