Zilmet ZS12 Inox Pro Stainless Steel Expansion Tank 3.2 Gal Replacement MPN

Product Description

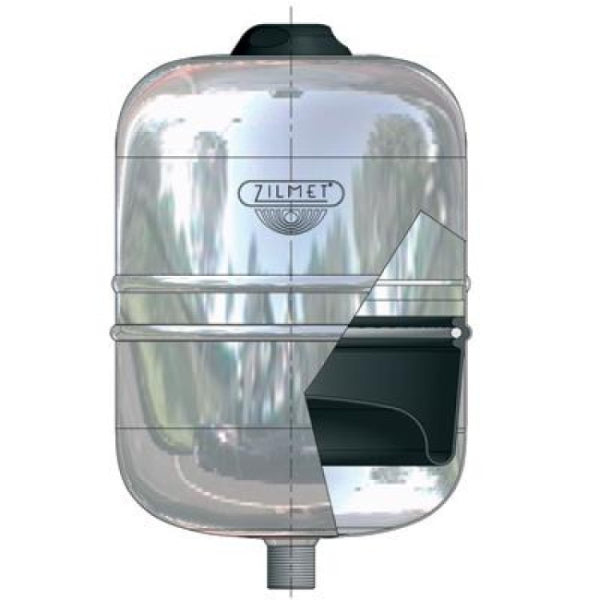

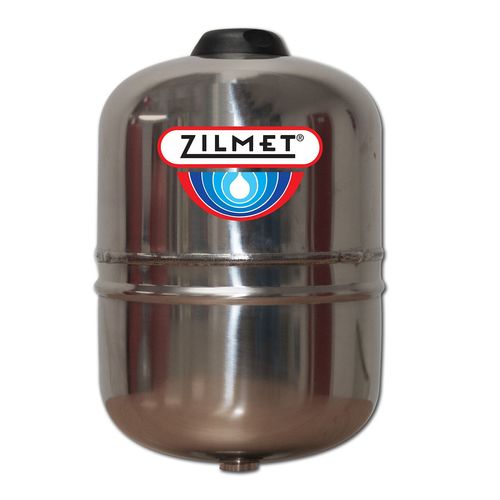

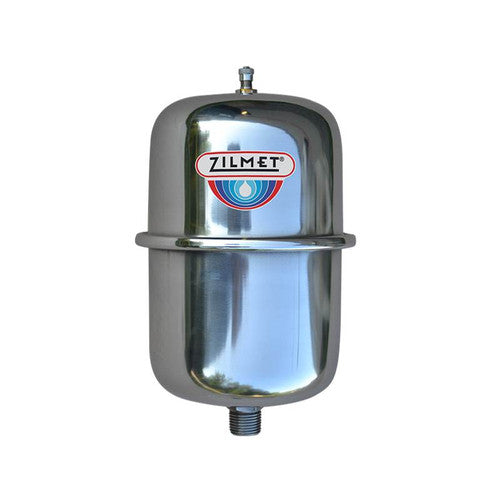

The Zilmet ZS12 Inox-Pro stainless steel expansion tank has a capacity of 3.2 gallons. Made from 304 stainless steel, it features a butyl diaphragm suitable for hot and cold water applications. This tank is designed for water expansion in domestic heating systems and is appropriate for use in coastal areas. The tank includes a three-fourths inch connection and can withstand a maximum operating pressure of one hundred fifty psi.

• Constructed from durable 304 stainless steel.
• Includes a butyl diaphragm for hot and cold water.
• Meets NSF 61 certification standards.

Product Highlights

The Zilmet ZS12 expansion tank is reliable for potable water and domestic heating systems, ensuring effective water expansion through its robust stainless steel design.

Product Information

Standard Information

• Application: Plumbing
• Material: Stainless Steel

Technical Specifications

• Tank Volume: 3.2 Gallons
• Connection Size: 3/4 inch
• Connection Type: Threaded
• Max Pressure (PSI): 150
• Diameter (Inches): 10.6
• Height: 10.8
• Precharged PSI: 36 psi
• Max Operating Temp: 210°F
• Standards Met: NSF 61
• Drawdown @ 40/60 PSI: 0.8
• Drawdown @ 30/50 PSI: 1.1
• Discharge Connection: 3/4 inch NPTM
• Model #: ZS12
• Manufacturer: Zilmet
