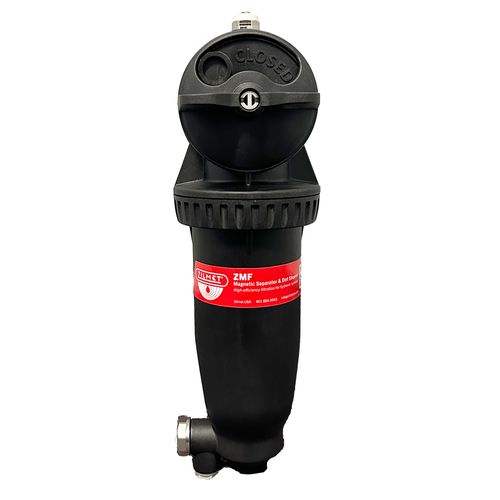

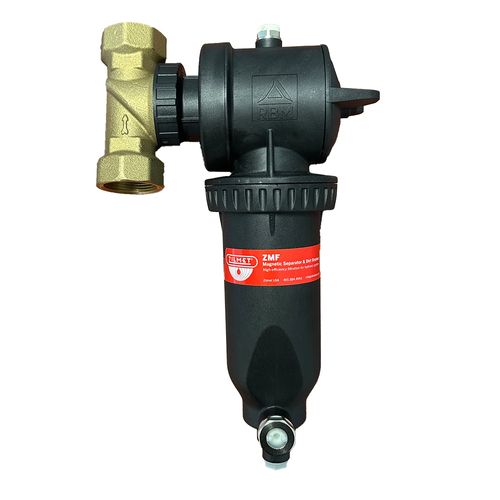

Zilmet ZMF-125 1-1/4 inches NPT & 1-1/4 inches Press Residential IntaKlean Magnetic Filter and Dirt Strainer

Product Description

The Zilmet ZMF Magnetic Filters provide magnetic and mechanical separation for boilers, heat pumps, and chilled water systems. The ZILMET ZMF-125 combines performance with features to streamline installation and service, providing system protection. Rugged brass connection hub includes NPTF and PRESS connections.

• Engineered for best-in-class efficiency, offering superior flow rates with less energy consumption
• Powerful magnetite capture and removable 304L stainless strainer for dedicated sludge protection
• Patented, quarter-turn bypass isolates high capacity filter housing for fast service and system dosing

Product Highlights

The Zilmet ZMF-125 magnetic filter offers magnetic and mechanical separation for a range of applications. It features a detachable, swivel filter body that rotates to accommodate any piping angle.

Product Information

Standard Information

• Brand: ZILMET
• Manufacturer Part Number: ZMF-125

Technical Specifications

• Connection Type: Press, FNPT x FNPT
• Connection Method: Threaded
• Type: Magnetic
• Size: 1-1/4"
• Product Type: Dirt Eliminator
