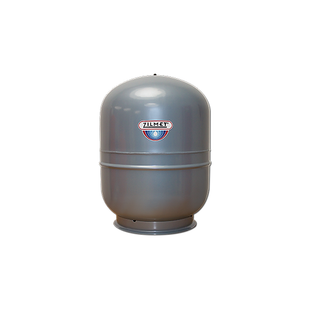

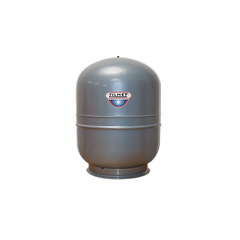

Zilmet ZHT200 Cal-Pro Hydronic Expansion Tank 52.8 Gallon

Product Description

The ZILMET ZHT200 is a 52.8 Gallon Cal-Pro hydronic expansion tank designed for hydronic systems. Constructed with a carbon steel shell and SBR synthetic rubber membrane, it manages system pressure fluctuations. It features a maximum operating pressure of 90 PSIG and an operating temperature of 210°F, with a 3/4'' NPT connection for installation.

• Each tank is factory leak tested to ensure tank integrity
• Certified synthetic SBR rubber diaphragm
• MIG welding eliminates interior rough spots and sharp edges

Product Highlights

Low profile design with full membrane depth for increased life cycle and durability.

Product Information

Standard Information

• Brand: ZILMET
• Manufacturer Part Number: ZHT200
• Country of Origin: Italy

Technical Specifications

• Country of Origin: Italy
• Shell Material: Carbon Steel
• Connection Material: Carbon Steel
• Membrane Material: SBR synthetic rubber
• Maximum Operating Pressure: 90 PSIG
• Operating Temperature: 210°F
• Factory Precharge: 12 PSIG
• Application: FOR HYDRONIC USE ONLY
• Capacity: 52.8 Gallons
• Connection Type: 3/4'' NPT
