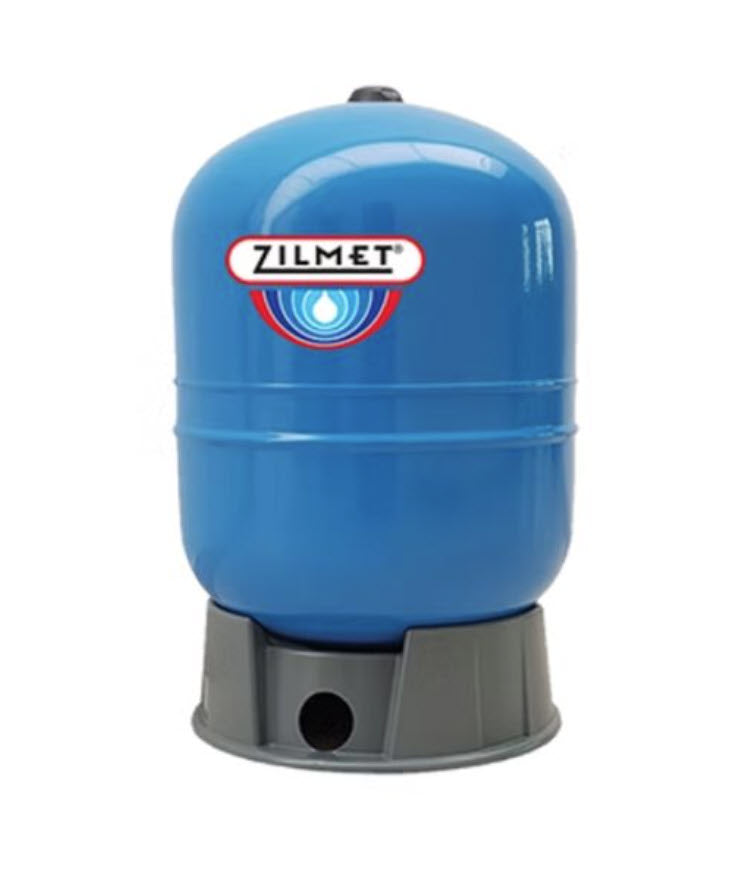

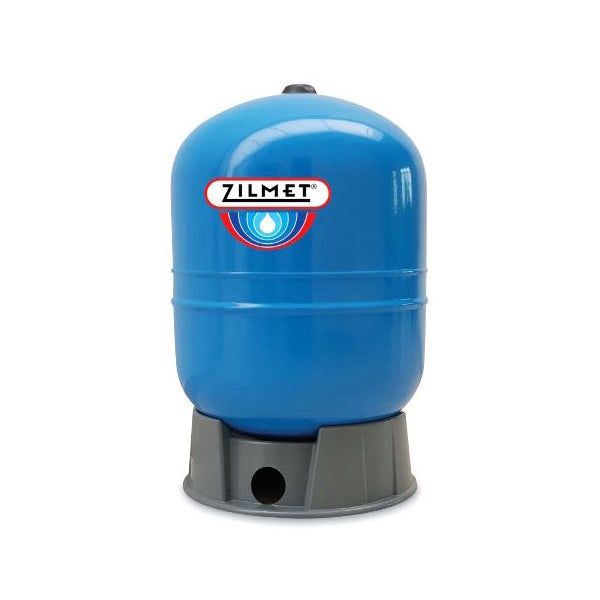

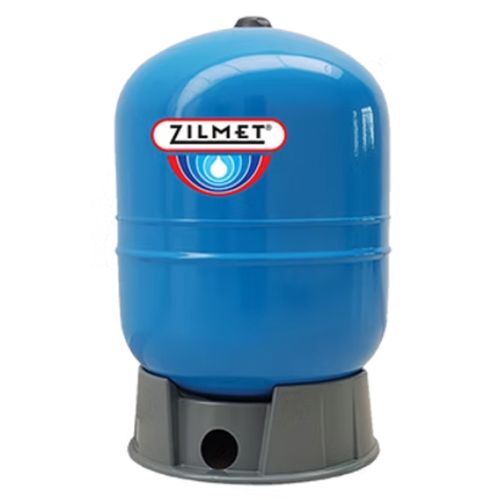

Zilmet ZHP203BC Elbow Well Tank 27.7 Gallons

Product Description

The Zilmet ZHP203BC is a diaphragm well tank with a capacity of twenty-seven point seven gallons and a one and one-quarter inch FNPT connection.

• Designed for all-weather applications.
• Heavy-duty butyl and EPDM diaphragm type.
• Maximum operational pressure of one hundred fifty psi.

Product Highlights

This tank is NSF 61-certified and built for durability. The design includes a deep drawn steel shell and a polypropylene base, suitable for underground installations.

Product Information

Standard Information

• Brand: Zilmet
• Product Type: Elbow Well Tank

Technical Specifications

• Tank Volume: 27.7 Gallons
• Material: Deep Drawn Steel Shell
• Connection Size: 1-1/4 inches
• Max Pressure (PSI): 150
• Drawdown @ 40/60 PSI: 8.2
• Drawdown @ 30/50 PSI: 9.4

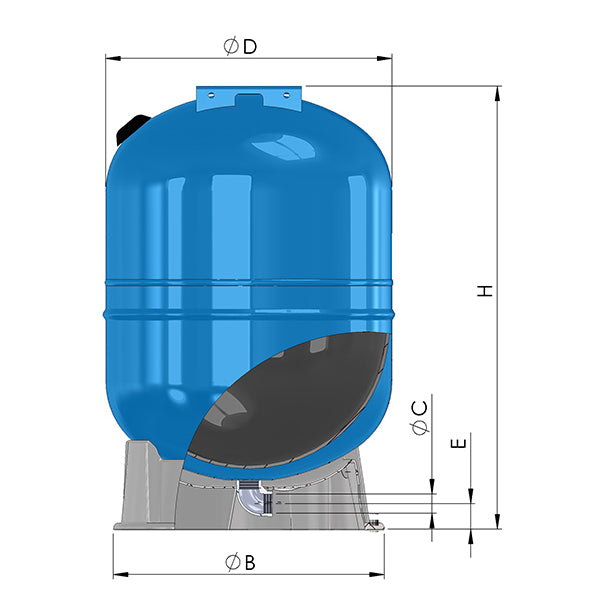

• Dimensions: 17.7 inches x 29.2 inches
• Diaphragm Type: Heavy Duty Butyl/EPDM
• Country of Origin: US
• Finish: Dark Blue
