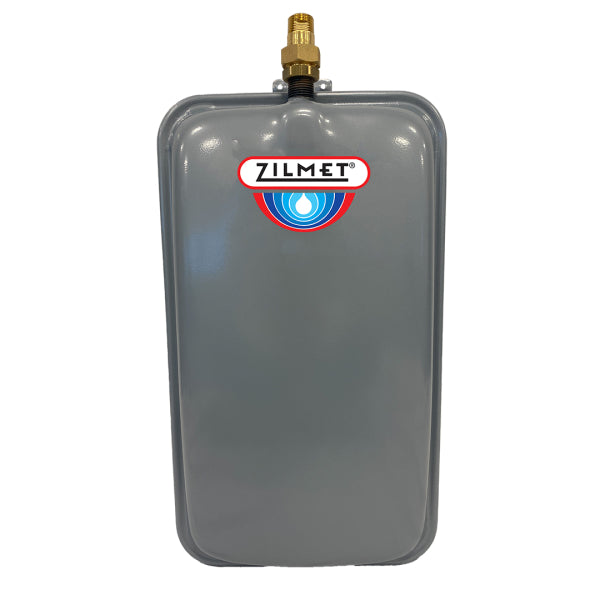

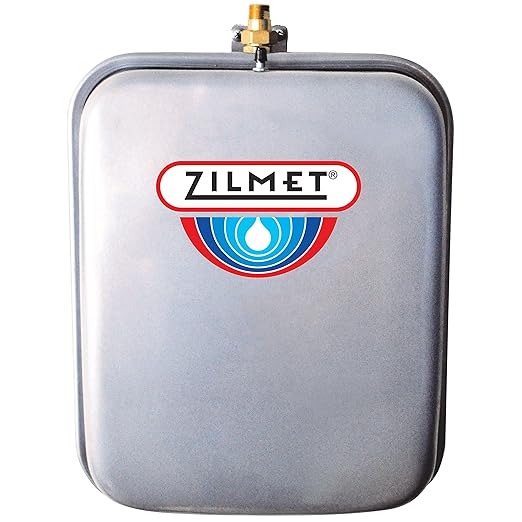

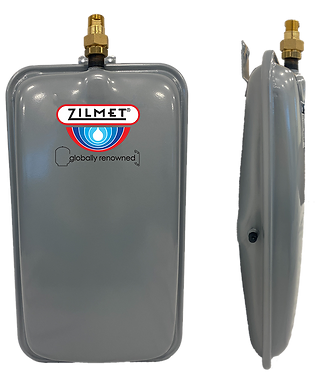

Zilmet ZFT18R Flat Rectangular Hydronic Wall Hung Expansion Tank 4.8 Gallon

Product Description

The Zilmet ZFT18R is a flat hydronic wall hung expansion tank designed for efficient space-saving in hydronic heating systems. This model includes a union with a dual service check for simplified installation. Its flat shape and included mounting bracket allow for quick and cost-effective setups, facilitating easier servicing and maintenance of the hydronic system.

• 1/2 inch connection for compatibility with standard systems
• Five-year warranty to ensure reliability
• Maximum pressure rating of fifty-seven PSI

Product Highlights

This expansion tank is ideal for hydronic heating applications, offering a precharged pressure of twelve PSI and the ability to handle heating fluids up to two hundred ten degrees Fahrenheit.

Product Information

Standard Information

• Model Number: ZFT18R-30
• Brand: Zilmet

Technical Specifications

• Capacity: 4.8 gallons
• Length: seventeen and a half inches
• Width: thirteen point eight inches
• Height: six point two inches
• Connection Size: 1/2 inch
• Max Pressure: fifty-seven PSI
• Max Operating Temperature: two hundred ten degrees Fahrenheit
• GTIN: 8019855042600
