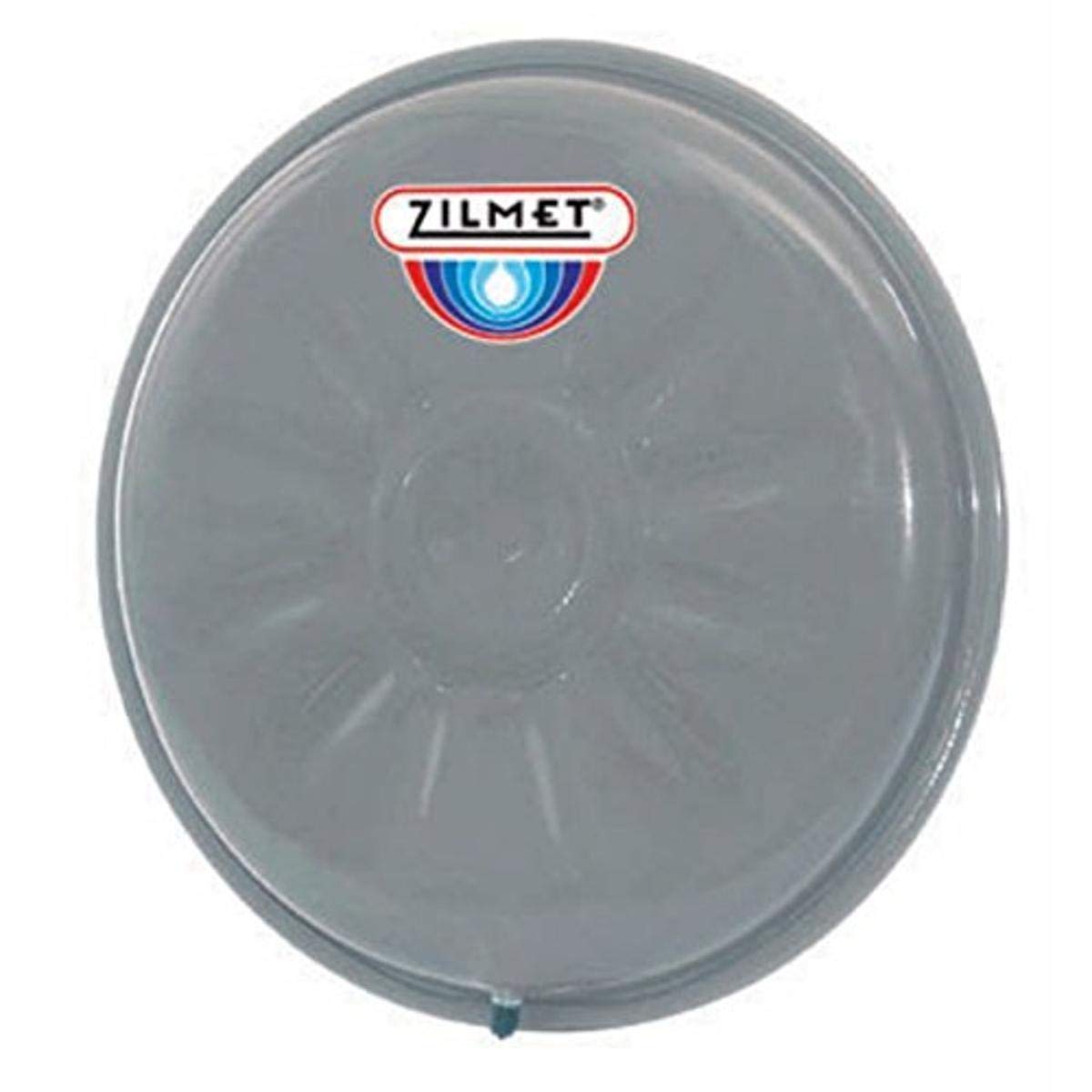

Zilmet ZFT18C Flat 4.8 gal Round Hydronic Tank, 1/2 NPT with Union and Bracket

Product Description

The Zilmet ZFT18C is a flat round hydronic expansion tank designed for efficient use in hydronic systems. This model features a capacity of four point eight gallons and includes a union with a dual service check, allowing for easier installation in compact spaces.

• Designed specifically for wall hung condensing boilers.
• Flat design with a bracket for a faster and cost-effective installation.
• Unique design allows for easy access for servicing the system.

Product Highlights

The Zilmet expansion tank is ideal for maintaining hydronic systems while saving space, ensuring that all components remain organized on the wall.

Product Information

Standard Information

• Brand: Zilmet
• Model Number: ZFT18C

Technical Specifications

• Connection Size: 1/2 inch
• Capacity: 4.8 gallons
• Precharged PSI: 12 psi
• Max Operating Temp: 210°F
• Max Pressure: 43.5 psi
• Dimensions: 15.2 inches diameter, 7.9 inches height
• Shipping Dimensions: 15.8 inches width, 16 inches depth, 8.7 inches height
• Weight: 16.1 lbs
