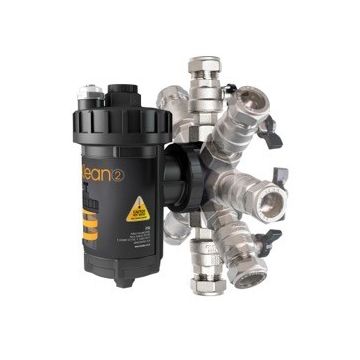

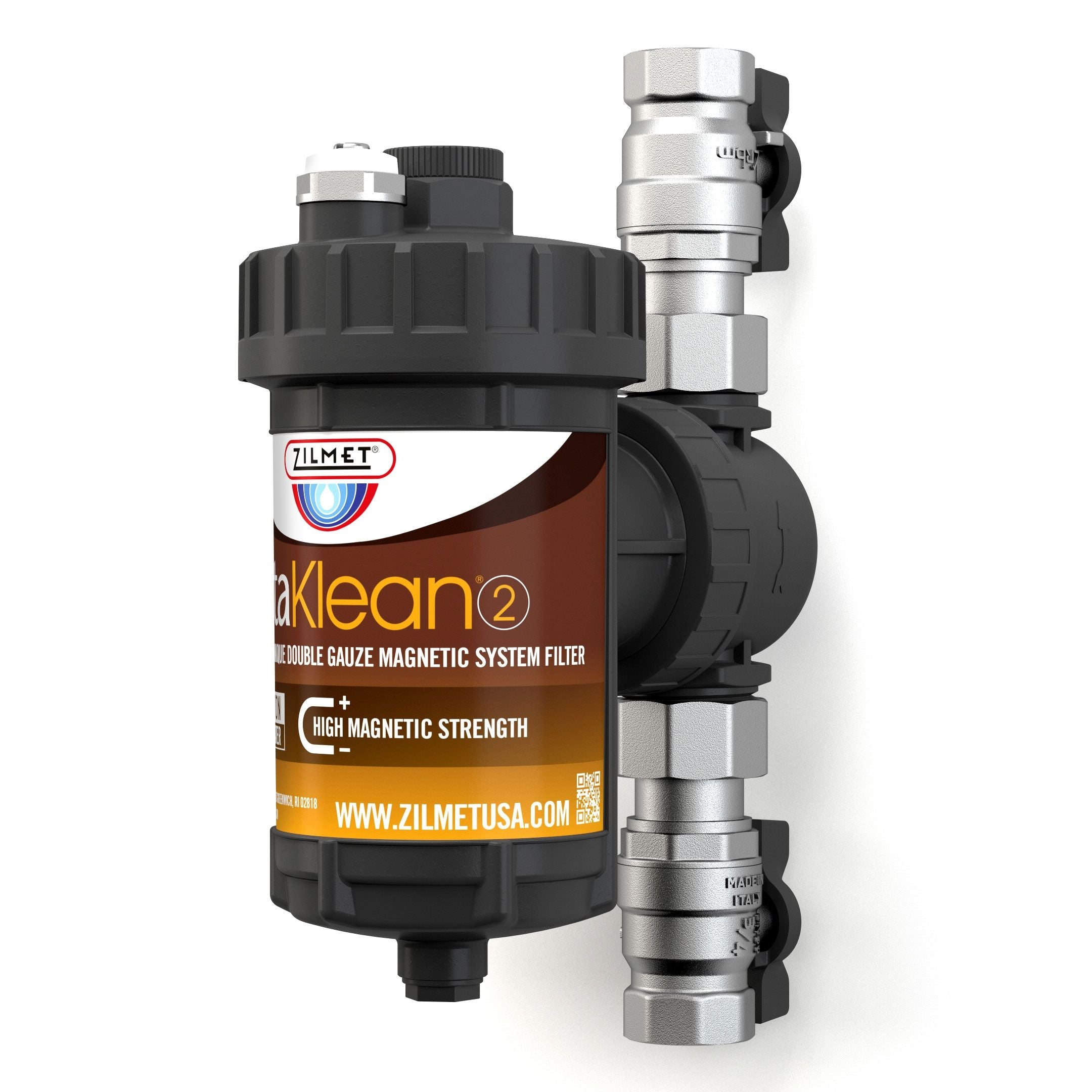

Zilmet IK203 - 3/4 IntaKlean2 Magnetic Filter

Product Description

The Zilmet IntaKlean2 with MPN IK203 is a 3/4 inch NPT multi-function magnetic dirt separator filter for hydraulic circuits. This filter includes dual removable stainless steel mesh filters and a powerful eleven thousand Gauss magnet in a dry well. It supports easy access for adding up to sixteen ounces of treatment fluids.

• Can be mounted in various positions: vertical, horizontal, or diagonal
• Designed to collect both magnetic and non-magnetic impurities
• Features include a low-profile drain valve and manual air vent

Product Highlights

The IntaKlean2 filter efficiently captures impurities within hydraulic systems, preventing contaminants from circulating. It is suitable for various applications, making it an essential component for maintaining system integrity.

Product Information

Standard Information

• Brand: Zilmet
• Model: IntaKlean2

Technical Specifications

• MPN: IK203
• Application: Dirt
• Connection Size: 3/4 inch
• Separator Connection: NPT
• Max Pressure: 60 psi
• Max Temperature: 194 degrees Fahrenheit
• Weight: 5.00 lbs
