Product Description

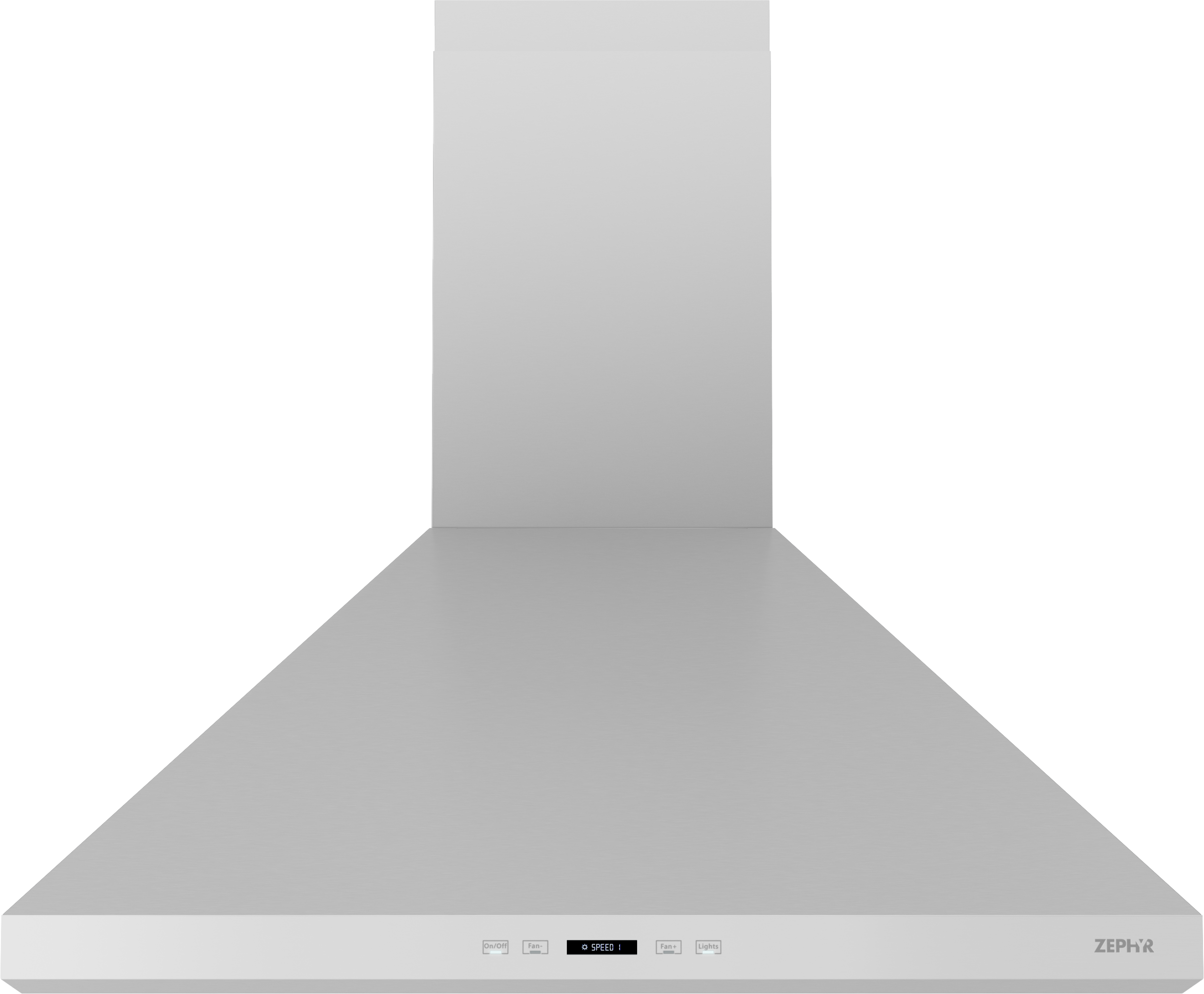

The Zephyr ZSI-E30DS Siena wall mount range hood boasts a 650-CFM blower and Airflow Control Technology (ACT). It features a welded, polished, and seamless body, as well as dual-level LumiLight LED lighting with TruHue technology. ICON Touch LCD controls make operation simple. An optional ADA-compliant remote control is available.
- Airflow Control Technology(TM) (ACT(TM))
- ICON Touch(R) LCD Controls
- Hybrid Baffle Filters
Product Highlights
This Zephyr Siena range hood offers powerful ventilation and advanced features for any kitchen.
Product Information
Standard Information
-
Brand: Zephyr
-
Manufacturer Part Number: ZSI-E30DS
-
Country of Origin: Taiwan
Technical Specifications
-
Brand: Zephyr
-
Manufacturer: Zephyr
-
Category: Range Hood
-
Sub-Category: Wall
-
Vent Type: Convertible
-
UPC: 646328012297
-
GTIN: 646328012297
-
Country of Origin: Taiwan
-
Model Group: ZSI-D
-
Model Name: Siena Wall
-
Collection: Core Collection
-
Blower Included: Yes
-
Blower CFM w/ACT: 390, 290
-
Internal Blower 1 CFM: 650
-
Internal Blower 1 Min. Sones: 1
-
Internal Blower 1 Max Sones: 6
-
Minimum CFM: 200
-
Installation Type: Wall
-
For Outdoor Use: No
-
Controls Type: ICON Touch(R)
-
Blower Speeds: 5
-
Automatic Delay-Off: Yes
-
Clean Air Function: No
-
Lighting Type: LED
-
Lights Quantity: 2
-
Watts Per Bulb: 6
-
Lights Levels: 2
-
Grease Filter Type: Hybrid Baffle
-
Compatible Mesh or Baffle Filter Part Number: 50210041
-
Duct Discharge: Vertical or Horizontal
-
Duct Size; Horizontal; IN: 8, 3.25 x 10
-
Duct Size; Vertical; IN: 8
-
Mounting Height Above Cooktop; IN: 24 - 34
-
Voltage: 120
-
Maximum Amperage: 4
-
ADA Compliant: Yes, with optional remote
-
Compatible Appliances: RC-0002, ZRC-00SI, Z1C-00SI, AK1710, MUA008A, Z0F-C091
-
Bluetooth Connected: No
-
Wi-Fi Connected: No
-
Remote Included: No
-
Remote Optional: Yes
-
Energy Star Certified: No
-
Alexa & Google Home Compatible: No
-
CEC Title 20 Compliant: Yes
-
CEC Title 24 Compliant: Yes
-
Primary Material: Stainless Steel
-
Wattage: 480
-
Certification: UL
-
Nominal Width; IN: 30
-
Net Width; IN: 29.9375
-
Net Depth; IN: 21.9375
-
Net Height; IN: 28.5 - 42
-
Clean Filter Alert: Yes
-
Duct Type: Vertical
-
Special Feature: Airflow Control Technology, TruHue LED Lighting, ICON Touch Controls
-
Finish Type: Stainless Steel
-
Air Flow Capacity: 650 Cubic Feet Per Minute
-
Mounting Type: Wall Mount
-
Included Components: LED Lights, Touch Controls
-
Light Source Type: LED
-
Filter Type: Baffle
-
Item Form: wall-mounted
-
Ventilation Type: Ducted/Vented
-
Vent Hood Design: Wall Mounted Canopy Hood
-
Model Info: ZSI-E30DS
-
Material Type: Stainless Steel
-
Batteries Included?: No
-
Batteries Required?: No
-
Range Hood Size (Width): 30 in.
