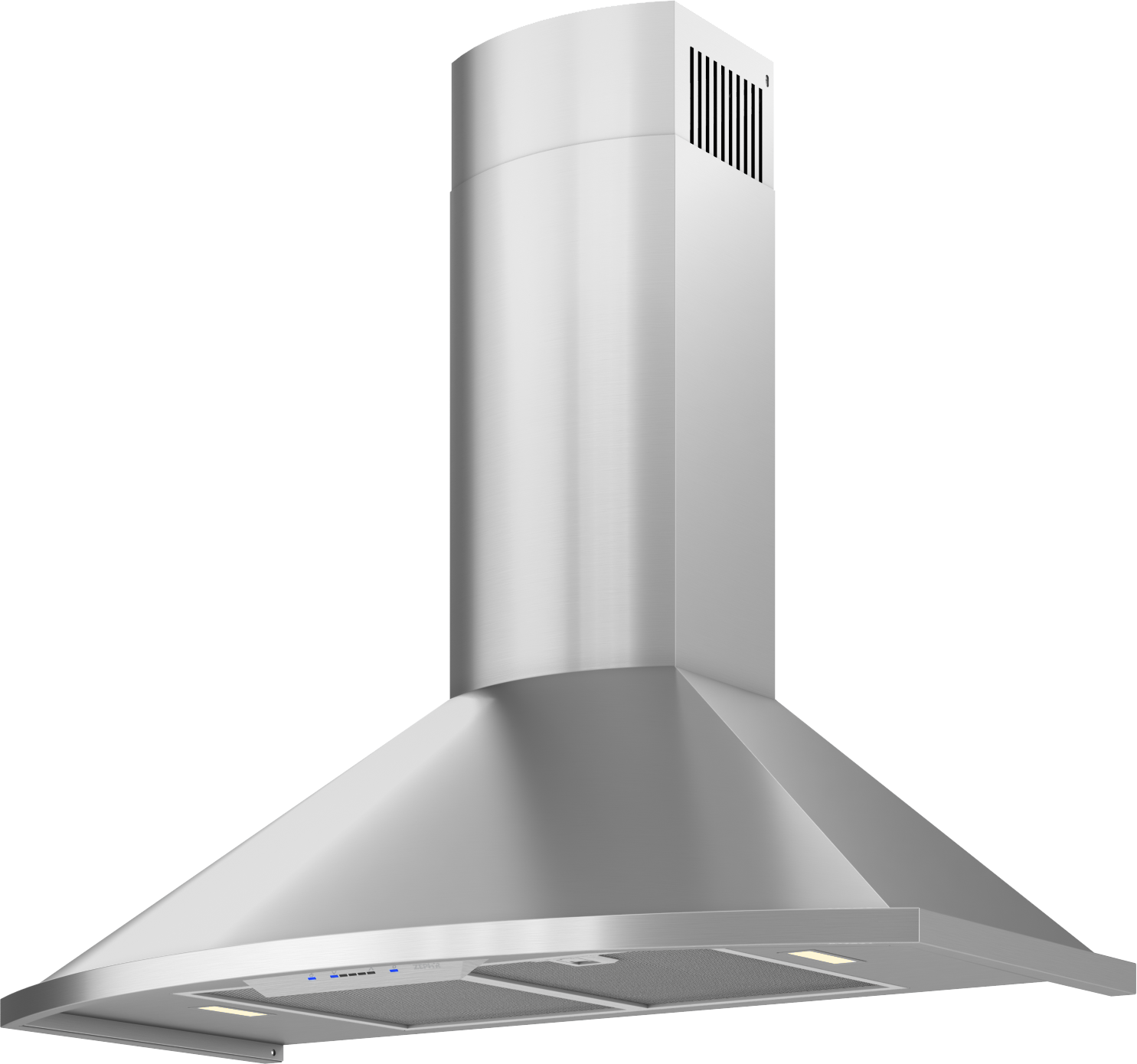

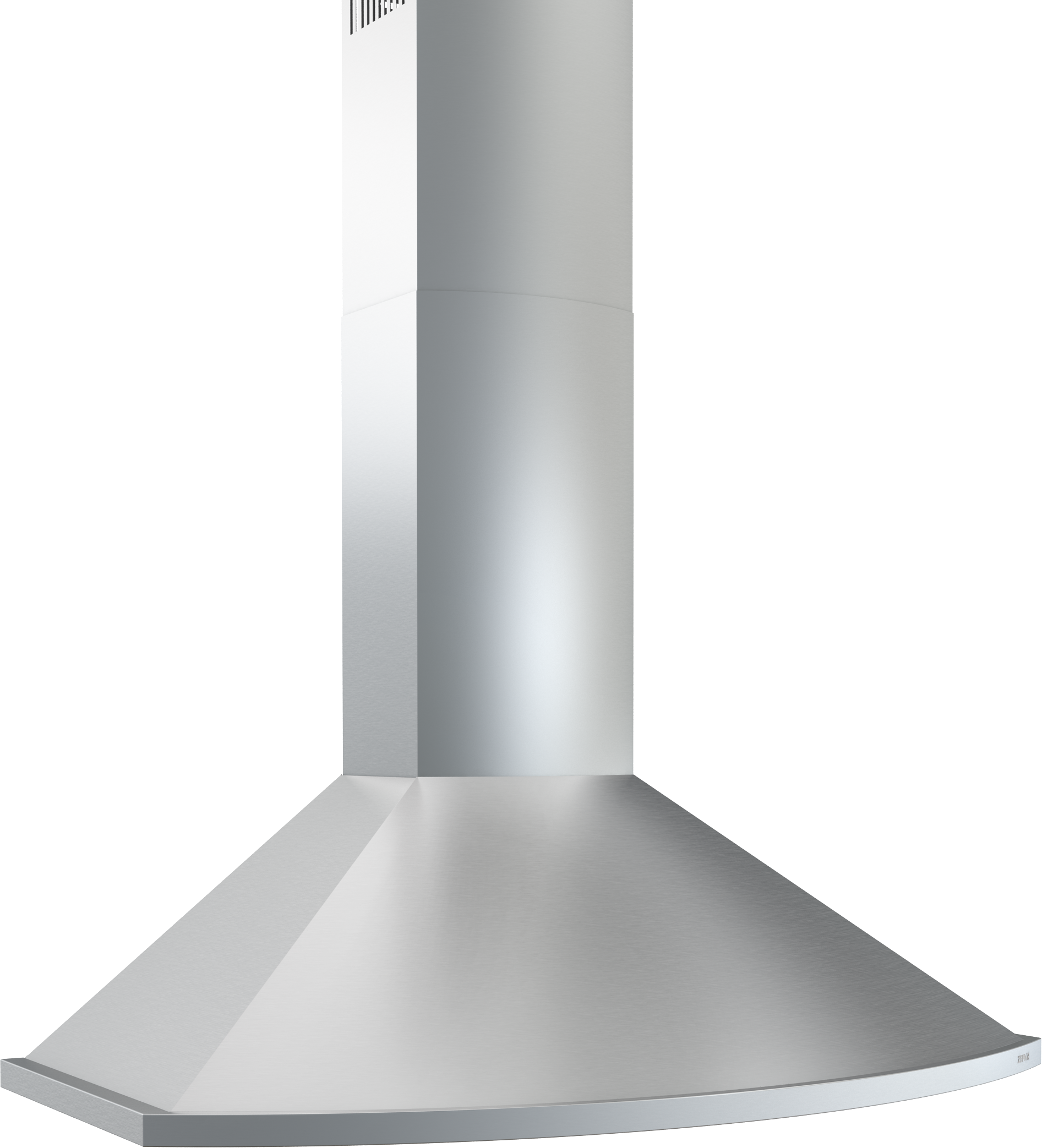

Zephyr ZSA-E30FS Savona 30 in. LED Wall Hood 600 CFM with ACT

Product Description

The Zephyr ZSA-E30FS Savona 30 in. LED Wall Hood features a 600 CFM blower and Airflow Control Technology (ACT). The semi-circular design offers delicate reflections of light and shadows. It also features LumiLight LED lighting and ICON Touch controls.

• LumiLight LED Lighting
• Dual-Level Lighting
• Airflow Control Technology™ (ACT™)
• ICON Touch® Controls

Product Highlights

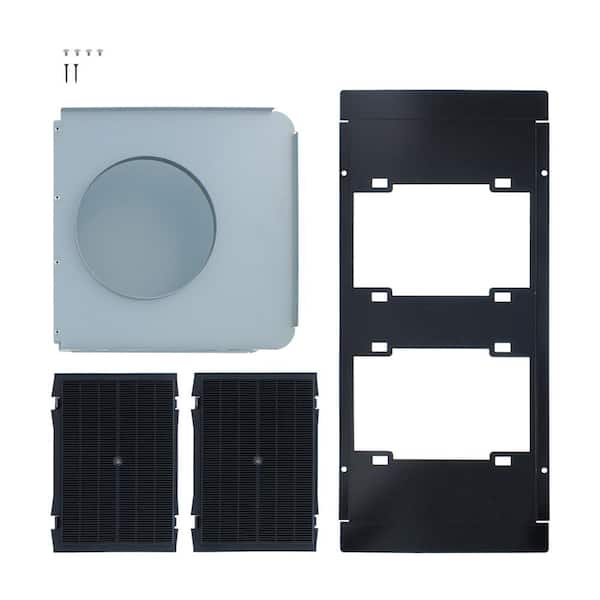

This 30-inch wall hood features aluminum mesh filters, optional ductless recirculating kit, and an optional extension duct cover kit.

Product Information

Standard Information

• Brand: Zephyr
• Manufacturer Part Number: ZSA-E30FS

Technical Specifications

• CFM: 290, 390, 600 CFM
• Recirculating: Recirculating
• Filter: Mesh Filter
• Ducting: Vertical Ducting
• Compliance: CA Title 24 Compliant
• Range Hood Size (Width): 30 in.
• Blower Included: Yes
• Blower CFM w/ACT: 390, 290
• Internal Blower 1 CFM: 600
• Internal Blower 1 Min. Sones: 1
• Internal Blower 1 Max Sones: 6
• Minimum CFM: 200
• Installation Type: Wall
• For Outdoor Use: No
• Controls Type: ICON Touch®
• Blower Speeds: 5
• Automatic Delay-Off: Yes
• Clean Air Function: No
• Lighting Type: LED
• Lights Quantity: 2
• Watts Per Bulb: 6
• Lights Levels: 2
• Grease Filter Type: Mesh
• Duct Discharge: Vertical
• Duct Size; Vertical in.: 6
• Mounting Height Above Cooktop in.: 24 - 34
• Voltage: 120
• Maximum Amperage: 4
• ADA Compliant: Yes, with optional remote
• Compatible Appliances: ZRC-00SV, Z1C-01SA, MUA006A, Z0F-C002, RC-0002, Z0F-B001, AK1710
• Bluetooth Connected: No
• Wi-Fi Connected: No
• Remote Included: No
• Remote Optional: Yes
• Energy Star Certified: No
• Alexa & Google Home Compatible: No
• CEC Title 20 Compliant: Yes
• CEC Title 24 Compliant: Yes
• Primary Material: Stainless Steel
• Wattage: 480
• Certification: UL
• Nominal Width in.: 30
• Net Width in.: 29.9375
• Net Depth in.: 19.5
• Net Height in.: 28 - 45
• Ceiling Height Minimum: 8 ft.
• Ceiling Height Maximum: 9.5 ft.
• Chimney Height in.: 18
• Chimney Width in.: 9
• Chimney Depth in.: 7.5
• Duct Type: Vertical
