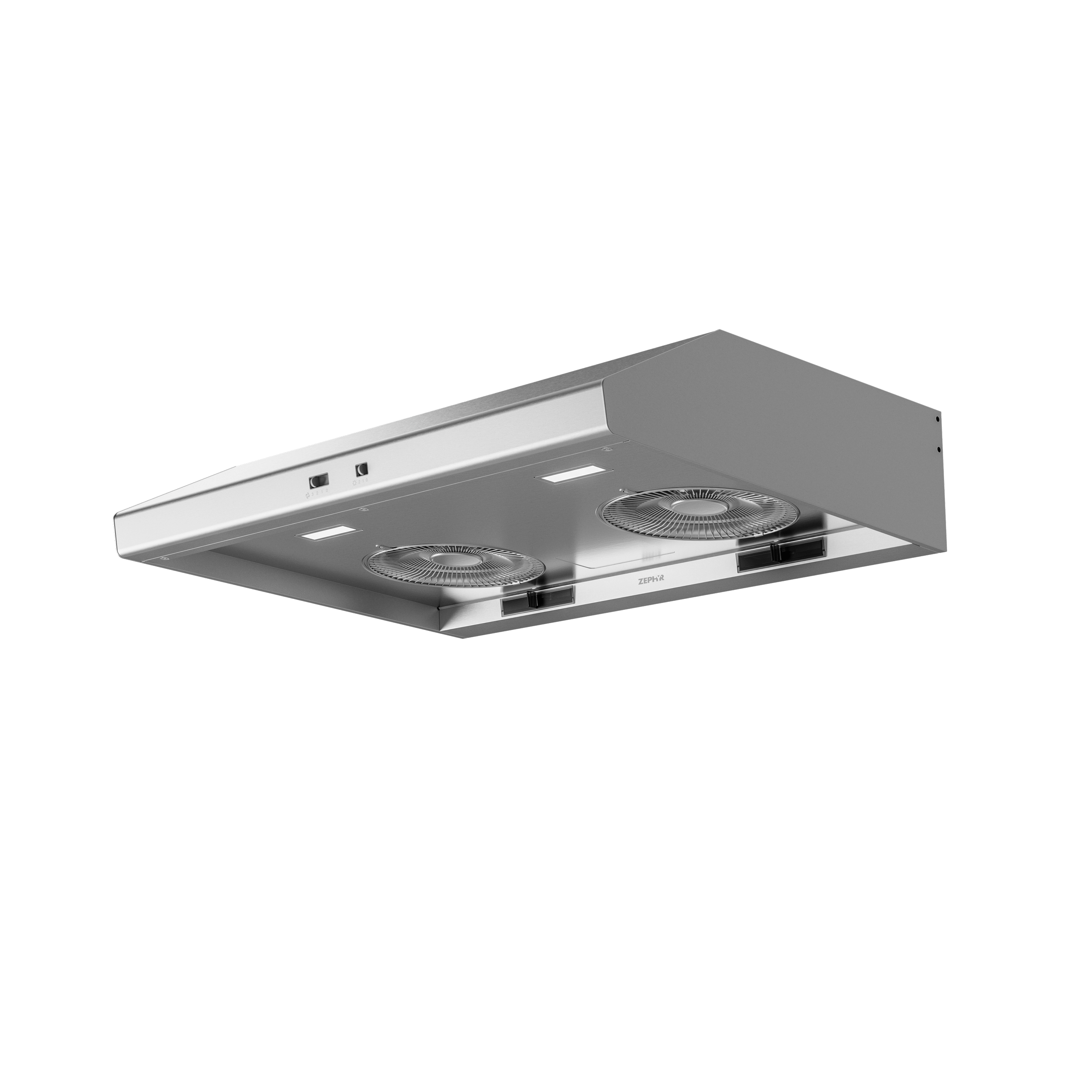

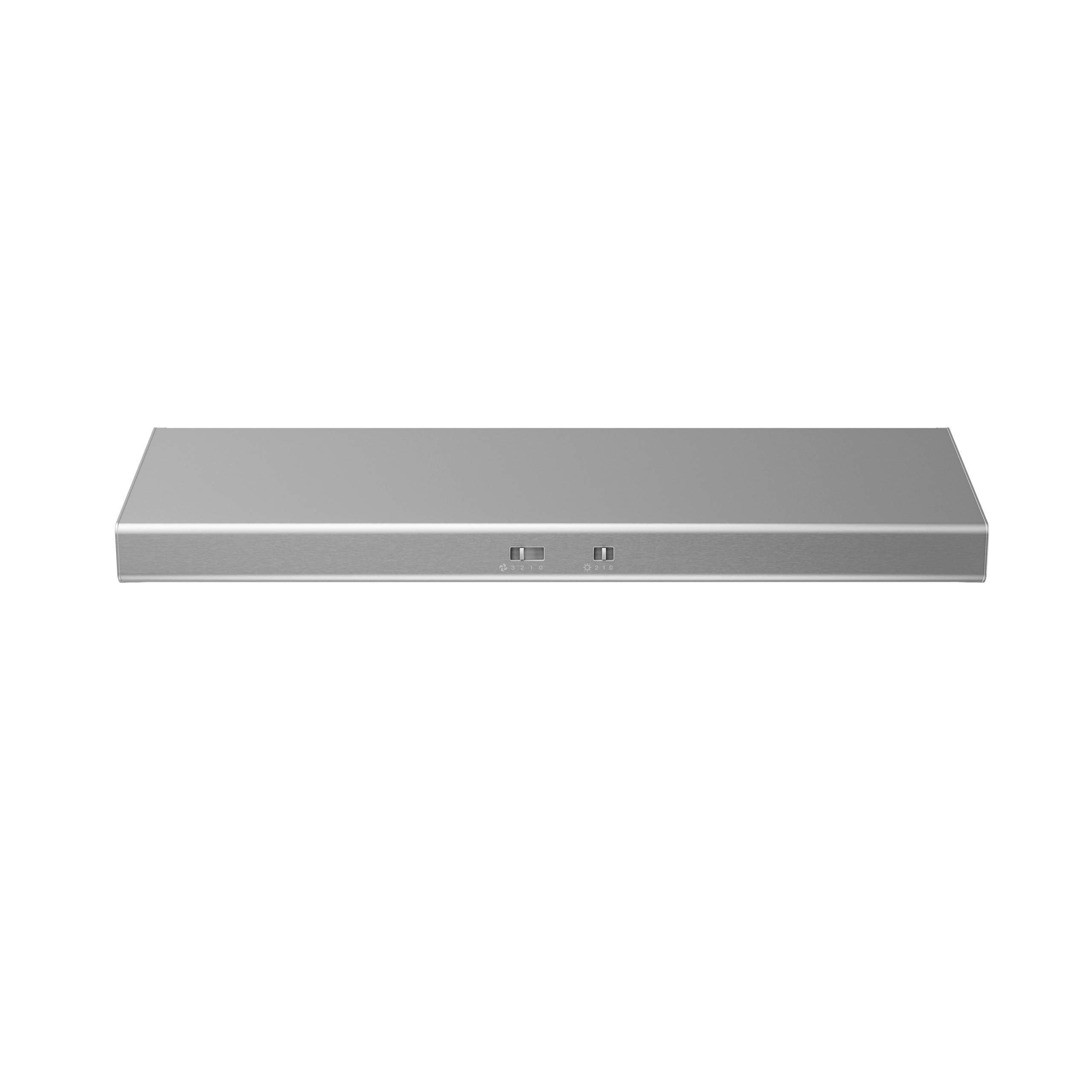

Zephyr AK6500CS Core Collection Cyclone 30 in. Under Cabinet Hood 600 CFM

Product Description

The Zephyr AK6500CS Core Collection Cyclone 30 in. Under Cabinet Hood features a filter-less self-cleaning system. The centrifugal blowers liquefy cooking residue without complex filters. It features LumiLight LED Lighting and mechanical slide controls to adjust the blower and dual-level LED lighting. Three-speed levels allow control of airflow.

• 3 Speed Levels
• LumiLight LED Lighting
• Filter-Less Self-Cleaning System

Product Highlights

This 30 inch wide range hood features a filter-less self-cleaning system, LED lighting, and 3-speed mechanical slide controls.

Product Information

Standard Information

• Brand: Zephyr
• Manufacturer Part Number: AK6500CS
• Country of Origin: Taiwan

Technical Specifications

• Brand: Zephyr
• CFM: 600
• Duct Size: 6"
• Hood Width: 30"
• Material: Stainless Steel
• Mounting Location: Under Cabinet
• Number of Bulbs: 2
• Sones Horizontal: 6.5
• Voltage: 120
• Collection: Core
• Product Type: Hood
• Recirculating: Not Recirculating
• Filter: Filter-less Filter
• Ducting: Vertical and Horizontal Ducting
• Compliance: CA Title 24 Compliant
• Special Feature: Easy To Clean
• Finish Type: Brushed
• Air Flow Capacity: 600 Cubic Feet Per Minute
• Noise: 1.5 Sones
• Mounting Type: Under Cabinet Mount
• Amperage: 2 Amps
• Controls Type: Mechanical slide controls
• Number of Speeds: 3
• Light Source: LED
• Wattage: 240 watts
• Filter Type: Mesh
• Ventilation Type: Ducted/Vented
• Material Type: Stainless Steel
• Style: Ducted Hood
• Width: 29 3/4 Inches
• Height: 6 5/16 Inches
• Depth: 22 1/4 Inches
• Energy Star: No
• ADA Compliant: Yes, with optional wall switch
• Alexa & Google Home Compatible: No
• Automatic Delay-Off: No
• Blower Included: Yes
• Blower Speeds: 3
• Bluetooth Connected: No
• Category: Range Hood
• CEC Title 20 Compliant: Yes
• CEC Title 24 Compliant: Yes
• Ceiling Height Maximum: 12 ft.
• Ceiling Height Minimum: 8 ft.
• Certification: UL
• Certification #: E127334
• Clean Air Function: No
• Clean Filter Alert: No
• Compatible Appliances: MUA006A, AK00066, AK1710
• Compatible Mesh or Baffle Filter Part Number: Z0F-B002
• Duct Discharge: Vertical or Horizontal
• Duct Size; Horizontal; IN: 3.25 x 10
• Duct Size; Vertical; IN: 6, 3.25 x 10
• Duct Type: Vertical
• Energy Star Certified: No
• For Outdoor Use: No
• Grease Filter Type: Filter-less
• Installation Type: Under Cabinet
• Internal Blower 1 CFM: 600
• Internal Blower 1 Max Sones: 5
• Internal Blower 1 Min. Sones: 1.5
• Lighting Type: LED
• Lights Levels: 2
• Lights Quantity: 2
• Manufacturer: Zephyr
• Maximum Amperage: 2
• Minimum CFM: 290
• Model Group: AK65-C
• Model Name: Cyclone Under-Cabinet
• Mounting Height Above Cooktop; IN: 24 - 32
• Net Depth; IN: 22.25
• Net Height; IN: 6.375
• Net Width; IN: 29.75
• Nominal Width; IN: 30
• Primary Material: Stainless Steel
• Remote Included: No
• Remote Optional: No
• Sub-Category: Under Cabinet
• Vent Type: Ducted
• Watts Per Bulb: 6
