Zenith 3601037EG PHD Wide Mouth Beam Clamp 3/8 inches & 1/2 inches Rod Only

Product Description

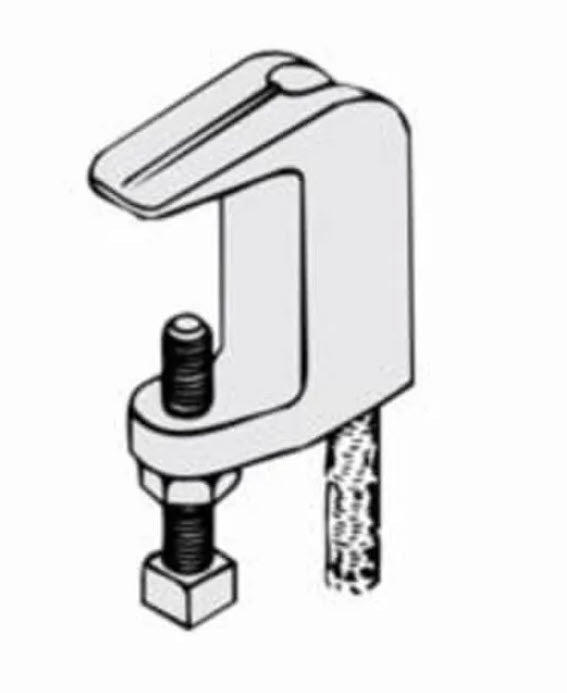

The Zenith 3601037EG PHD wide mouth beam clamp is constructed from malleable iron and designed for use with 4 in pipe. It features a hardened steel cup point set screw and locknut. Caution should be taken not to over tighten the set screw. When a torque wrench is unavailable, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added.

• Malleable iron with hardened steel cup point set screw and locknut
• Underwriters laboratories listed in the US (UL), Canada (CUL)
• 3/8 in set screw

Product Highlights

The Zenith wide mouth beam clamp has a load capacity of 400 lb and a 60 in-lb torque set screw.

Product Information

Standard Information

• Brand: ZENITH
• Manufacturer Part Number: 3601037EG

Technical Specifications

• Type: Wide Mouth
• Suitable For Use With: 4 in Pipe
• Load Capacity: 400 lb
• Material: Malleable Iron
• Rod Size: 3/8 in
• Package Quantity: 1/Each
