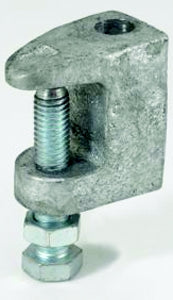

Zenith 360 0050PL Wide Mouth Beam Clamp, 500 lb Load, Malleable Iron

Product Description

The Zenith 360 0050PL Wide Mouth Beam Clamp is designed for use with half inch rods and provides a load capacity of five hundred pounds. This malleable iron clamp is built for durability and reliability. It is ideal for various electrical applications including those that require support for pipes and other components.

• Malleable iron construction with a hardened steel cup point set screw and locknut
• Wide mouth design suitable for ease of attachment to I-beams
• Compliant with Underwriters Laboratories (UL) standards in the US and Canada

Product Highlights

This beam clamp simplifies the installation of electrical supports while ensuring secure attachment and stability.

Product Information

Standard Information

• Brand: Zenith Resources
• Part Number: M3303

Technical Specifications

• Type: Wide Mouth
• Finish: Plain
• Material: Malleable Iron
• Load Capacity: 500 lb
• Rod Size: 1/2 in
• Suitable For Use With: 8 in Pipe
• Series: FIG 360
