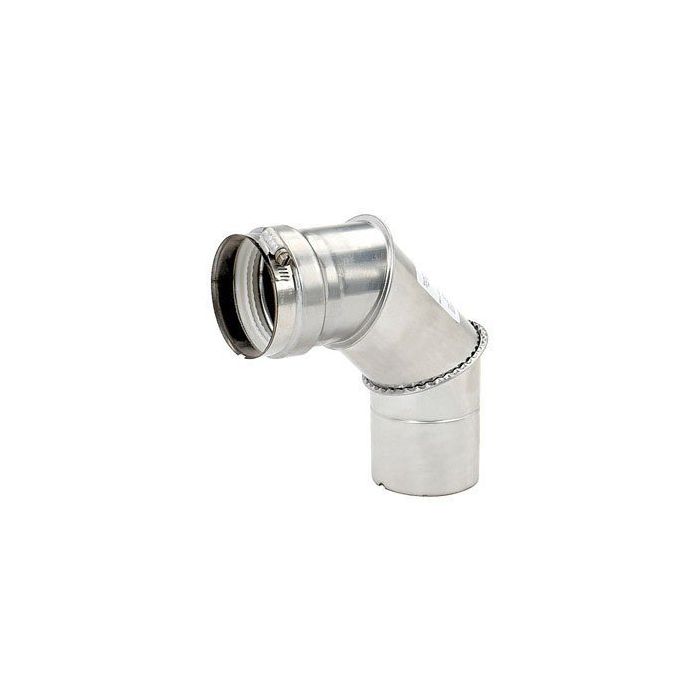

Z-flex ZF-2SVEEWCF0390 Z-vent Single Wall 90 Elbow 3 in

Product Description

The Z-FLEX ZF-2SVEEWCF0390 is a single-wall Z-Vent 90-degree elbow with a 3-inch diameter, designed for venting gas appliances in residential and light commercial installations. This elbow fitting directs exhaust flow through a sharp directional change, allowing installers to route vent runs around structural obstacles or transition from vertical to horizontal runs. Weighing 1 pound, the fitting is lightweight for easy handling during overhead or confined-space work. Licensed HVAC technicians and plumbers install this type of component as part of a complete Z-Vent system serving Category I or Category II gas appliances.

This 90-degree elbow is suited for single-wall Z-Vent system installations in residential homes and light commercial buildings. It is used wherever a 3-inch diameter vent run requires a 90-degree turn, such as connecting a furnace, boiler, or water heater flue collar to a vertical or horizontal vent chase. The single-wall construction is appropriate for interior sections of the vent run where clearance-to-combustibles requirements for single-wall pipe are met per local mechanical and fuel gas codes.

Key Features

• 90-degree elbow configuration allows sharp directional changes in 3-inch Z-Vent runs
• Single-wall construction for use in interior vent routing applications
• 3-inch diameter matches standard Z-Vent system sizing for common residential gas appliances
• Lightweight at 1 pound for ease of handling in confined or overhead installations
• Designed to integrate with Z-FLEX Z-Vent system components

Compatibility

Designed for use with Z-FLEX Z-Vent single-wall venting systems in 3-inch diameter configurations. Intended for compatible Category I and Category II gas appliance vent installations where single-wall Z-Vent fittings are specified.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with the appliance manufacturer instructions, NFPA 54, and applicable local mechanical codes. Always shut off the gas supply and allow the appliance to cool completely before servicing or modifying any vent components. Verify that single-wall pipe clearance-to-combustibles requirements are maintained throughout the vent run per code. Secure all joints according to the Z-Vent system installation guidelines to ensure a gas-tight, properly supported assembly.

Technical Specifications

• Diameter: 3 inches
• Elbow Angle: 90 degrees
• Wall Type: Single Wall
• Weight: 1 pound
• UPC: 663053023237

Standard Information

• Brand: Z-FLEX
• Manufacturer Part Number: ZF-2SVEEWCF0390
