Z-FLEX 2SVSTPF03 Z-Vent Termination Coupling 3 inch

Product Description

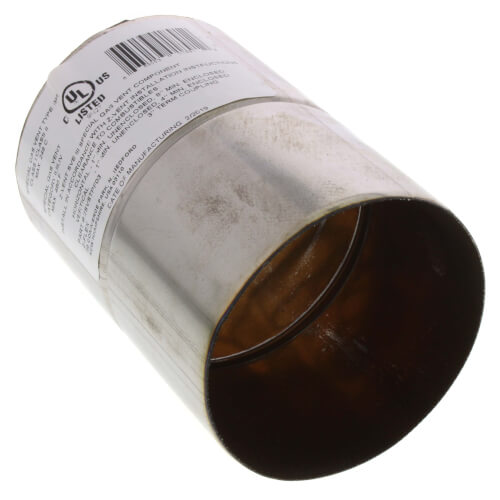

The Z-FLEX 2SVSTPF03 Z-Vent termination coupling is a three inch stainless steel vent pipe fitting. It is designed to work in both positive and negative pressure systems. This product meets UL tests and is listed to UL1738/S636 for CAT II, III, and IV venting specifications. It serves as the final fitting in a horizontal venting system for effective exhaust through a wall.

• Three inch diameter
• Constructed from stainless steel

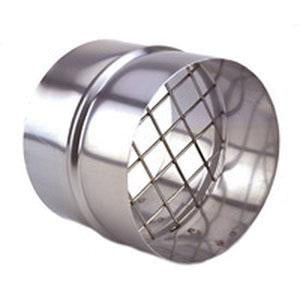

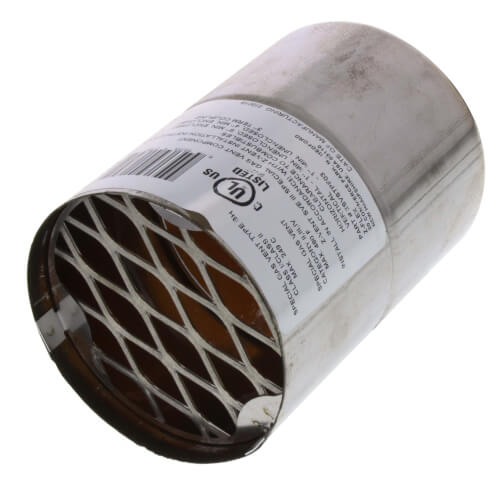

• Includes a bird screen to prevent animal intrusion

Product Highlights

The termination coupling comes with a built-in fail-safe gasket and locking band connection, negating the need for additional sealants in installation.

Product Information

Standard Information

• Brand: Z-Flex
• MPN: 2SVSTPF03

Technical Specifications

• Diameter (Inches): 3
• Size: 3 inches
• Product Type: Coupling
• Vent Type: Single Wall
• Application: Commercial, Residential
• Material: Stainless Steel AL29-4C
• Venting Style: Z-Flex Z-Vent Single-Wall SS
• Warranty: 15 Year Limited Warranty
