Z-flex 2SVEEWC0590 5 Inch Cat Iii 90 Elbow Vent Pipe

Product Description

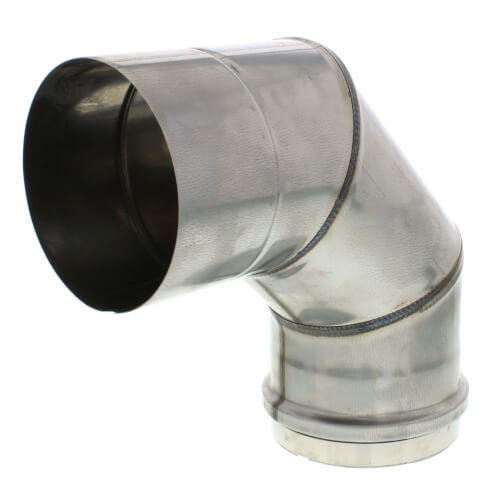

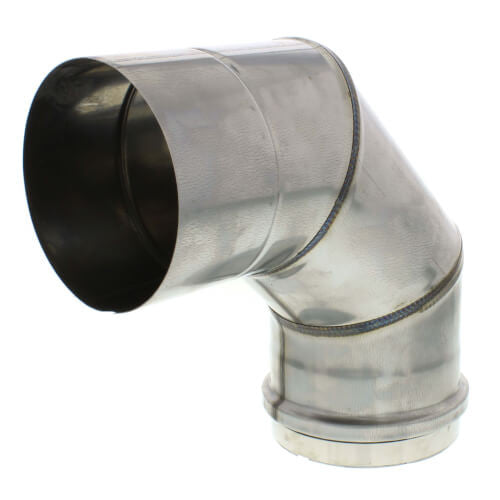

The Z-FLEX 2SVEEWC0590 is a 5-inch, single-wall, 90-degree rigid elbow vent pipe constructed from Category III stainless steel. Designed for horizontal vent exhaust applications, this elbow allows technicians to route flue gas around obstructions and make direction changes in vent runs without sealant. The pipe features fusion-welded seams and gasketed connections for an airtight fit. Rated to UL 1738 and AL 29-4C, it is engineered for use with Category II, III, and IV gas-burning appliances where vent gas temperature at the appliance outlet does not exceed 550 degrees F. Licensed HVAC technicians and gas appliance installers are the primary trade installing this component.

This elbow is suited for residential and commercial horizontal venting of high-efficiency gas appliances, including unit heaters, high-efficiency furnaces, and gas water heaters. It handles both natural gas and liquid propane fuel types. Because of its gasketed, fusion-welded construction, no field-applied sealant is required, eliminating cure time and reducing callback risk. The Category III stainless steel construction handles the condensing flue gas conditions common in high-efficiency appliance installations.

Key Features

• Category III stainless steel single-wall construction rated for condensing flue gas applications
• UL 1738 and AL 29-4C rated for compliance with standard vent system requirements
• Gasketed connections — no sealant required, no cure time
• Fusion-welded pipe seams provide an airtight, smooth interior finish
• Compatible with natural gas and liquid propane Category II, III, and IV appliances
• Maximum vent gas temperature rating of 550 degrees F at the appliance outlet
• Requires 3 inches clearance to combustibles

Compatibility

Engineered for use with Category II, III, and IV gas-burning appliances only, including unit heaters, high-efficiency furnaces, and high-efficiency gas water heaters using single-wall Category III stainless steel piping systems. Compatible with natural gas and liquid propane fuel types.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified gas appliance installer in accordance with local mechanical codes and the appliance manufacturer's venting instructions. Shut off gas supply and power to the appliance before beginning any vent work. Maintain a minimum clearance of 3 inches to combustibles throughout the vent run. Always verify local code requirements before installing or modifying any vented appliance system.

Technical Specifications

• Pipe Diameter: 5 inches
• Elbow Angle: 90 degrees
• Wall Type: Single wall
• Material: Category III stainless steel
• Maximum Vent Gas Temperature: 550 degrees F (288 degrees C)
• Clearance to Combustibles: 3 inches
• Fuel Type: Natural gas, liquid propane
• Certifications: UL 1738, AL 29-4C
• Appliance Categories: Category II, III, IV

Standard Information

• Brand: Z-FLEX
• Manufacturer Part Number: 2SVEEWC0590
