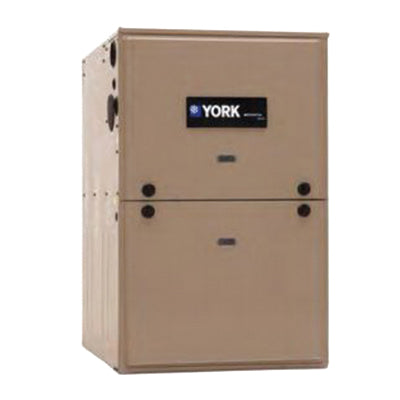

York YP9C100C20MP13C YP9CC Multi-Position Gas Furnace 97.7% (2000 CFM) Replacement MPN YP9C100C20MP12C

Product Description

The York YP9C100C20MP13C is a multi-position gas furnace with a 97.7% Annual Fuel Utilization Efficiency, featuring a 100/35 mbh input and a 97/34 mbh output. This furnace delivers up to 2000 cubic feet per minute of airflow, making it suitable for various applications.

• Induced combustion with high heat transfer aluminized tubular heat exchangers
• Factory assembled, wired, and tested for safe installation
• Supports both residential and commercial applications

Product Highlights

This furnace is efficient and reliable, suitable for basements, attics, and recreational rooms. It meets category IV national fuel gas code requirements and can be vented through side walls or roofs using approved vent piping.

Product Information

Standard Information

• Brand: York
• MPN: YP9C100C20MP13C

Technical Specifications

• AFUE: 97.7%
• Amperage Rating: 12 A
• BTU Rating: 100/35 mbh Input, 97/34 mbh Output
• CFM Rating: 2000 CFM
• Configuration: Multi-Position
• Connection Type: 1/2 in NPT Gas
• Dimensions: 21 in W x 33 in H x 30-1/4 in D
• Filter Size: (2) 16 x 25 in Side and 20 x 25 in Bottom
• Fuel Type: Natural Gas
• Ignition Type: Electronic Hot Surface
• Model: YP9CC
• Motor Type: ECM
• Phase: 1 ph
• Series: Affinity
• Temperature Rating: 190 deg F Maximum Outlet Air
• Voltage Rating: 115 VAC
