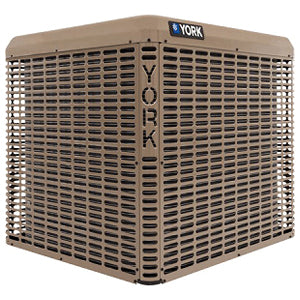

York YHE35B21S Split-System Heat Pump 14 SEER 3 Ton Replacement MPN YHE35B21S

Product Description

The York YHE35B21S is a residential split-system heat pump designed for efficient heating and cooling. This model offers a reliable performance with 14 SEER and is optimized for modern energy standards. It is built using quality materials for long-lasting operation.

• Optimized for 14 SEER and 8.2 HSPF efficiency.
• Compatible with York indoor units for a complete HVAC solution.
• Robust design with quality coil protection and durable finish.

Product Highlights

Reliable operation with quieter performance makes this heat pump suitable for various residential applications.

Product Information

Standard Information

• Brand: York
• MPN: YHE35B21S

Technical Specifications

• Amperage Rating: 1.3 A
• BTU Rating: 35 mbh
• CFM Rating: 2995 cfm
• Coil Rating: 23.82 sq-ft Face Area, 22 fins/in
• Color: Champagne
• Compressor Type: Scroll
• Connection Type: 3/8 in Liquid, 3/4 in Vapor
• Decibel Rating: 72 dBA Cooling, 73 dBA Heating
• Dimensions: 35-1/4 in W x 39-1/2 in H x 31-3/4 in D
• Finish: G90 Galvanized
• Frequency Rating: 60 Hz
• HP Rating: 1/4 hp
• HSPF: 8.2
• Item Name: Split-System Heat Pump
• Material: Steel
• Phase: 1 ph
• RPM: 850 rpm
• Refrigerant: R-410A
• SEER: 14
• Series: LX, YHE
• Stages: 1
• Temperature Rating: 55 - 125 deg F DB Cooling, -20 to 75 deg F DB Heating
• Tonnage: 3 ton
• Type: Residential
• Voltage Rating: 208/230 VAC
