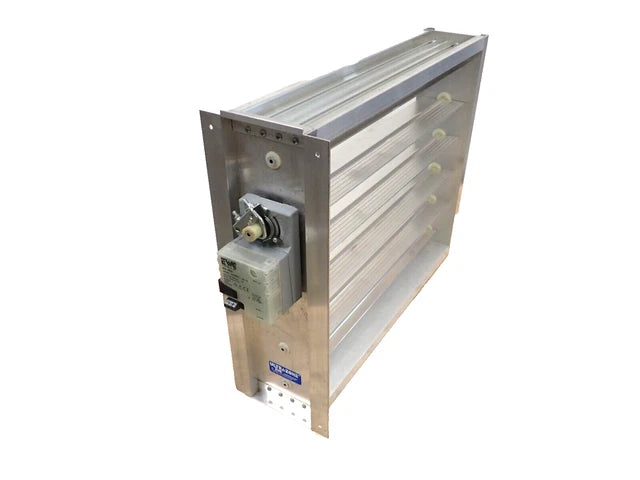

YORK S1-ZDMS2620 Damper 26 x 20

Product Description

The YORK S1-ZDMS2620 is a motorized zone damper specifically designed for HVAC systems. It measures twenty-six inches by twenty inches and is made of 22 gauge galvanized steel. This damper functions in zone control applications or as a motorized damper for bypass air when utilized with a static pressure switch. It is built to handle high-pressure air conditioning systems up to four inches water column. The motor actuator generates up to eighteen inch-pounds of torque to effectively open and close the damper.

• Constructed from durable 22 gauge galvanized steel
• Operates with a motor voltage of 24 VAC and 50/60 Hz
• Delivers a torque of up to 35 inch-pounds

Product Highlights

This damper is ideal for optimizing airflow and maintaining efficient HVAC operation.

Product Information

Standard Information

• Brand: YORK
• MPN: S1-ZDMS2620

Technical Specifications

• Construction: 22 Ga. Galvanized Steel
• Linkage: Direct Drive
• Motor Voltage: 24 VAC, 50/60 Hz, 6.5 Watts, 7VA
• Torque: 35 in-lbs
• Temperature Rating: -4°F to 140°F Operating, -20°F to 150°F Storage
• Humidity: 5% to 95% Non-Condensing
• Damper Timing: Nominal 30 Sec. Powered
• Connection: Screw Terminals
• Duct Pressure: Maximum 4.0 inches W.C.
