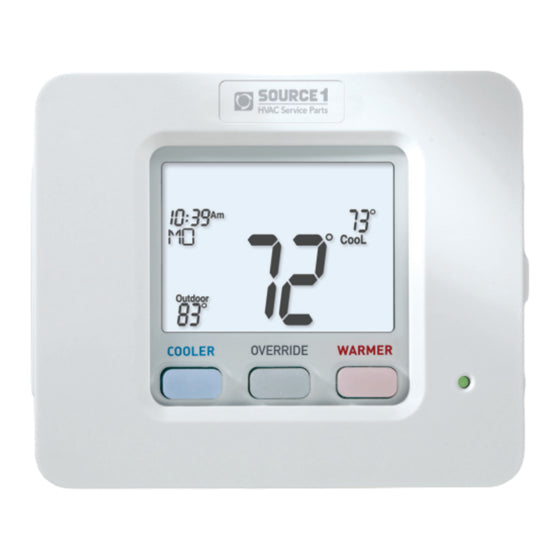

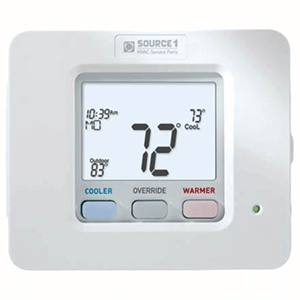

York S1-TBSU305-S Commercial Programmable Thermostat

Product Description

The York S1-TBSU305-S is a programmable thermostat built for commercial environments. It efficiently manages temperature control in various systems with its 3-stage heating and 2-stage cooling support. The 7-day programmable feature allows for tailored temperature scheduling, ensuring optimal climate conditions.

• Supports 3-stage heating and 2-stage cooling systems.
• 7-day programmable feature for customized scheduling.
• Suitable for commercial applications.

Product Highlights

This thermostat is ideal for managing heating and cooling in commercial settings, enhancing energy management and user comfort.

Product Information

Standard Information

• Brand: Source 1
• Manufacturer: York

Technical Specifications

• MPN: S1-TBSU305-S
• Power Requirements: 20 - 30 VAC 50/60 Hz, 3.0 VA @ 24V nominal
• Output Rating W1, W2, W3: 0.2A max, 0.01A min, 3A inrush, 20 - 30 VAC
• Output Rating Y1, Y2, G: 0.4A max, 0.01A min, 3A inrush, 20 - 30 VAC
• Output Rating HUM, DEHUM, AUX: 0.1A max, 0.01A min, 3A inrush, 20 - 30 VAC
• Dimensions: 5 inches high x 7 inches wide x 2 inches deep
