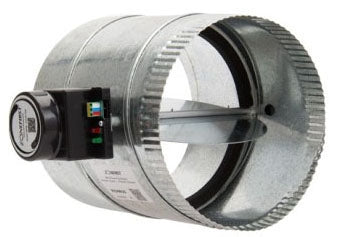

York S1-RDM07 Modulating Round Zoning Damper 24 Volt AC

Product Description

The York S1-RDM07 is a robust, 7-inch diameter by 10-inch length, motorized modulating zone damper constructed from 22 gauge galvanized steel, designed for efficient zone control in air conditioning systems. This durable component is engineered to optimize air flow control with precision and reliability.

• Features a power open/close 3-wire motor system with LED position indicators.
• Operates efficiently within a temperature range of zero to 120 degrees Fahrenheit and can withstand humidity levels of 5 to 95 percent non-condensing.
• Its quick 30-second damper timing ensures swift response in system adjustments.

Product Highlights

Enhanced with a neoprene gasket seal for improved sealing efficiency, the damper is further augmented by an LED indicator providing visual feedback on damper status, enhancing system diagnostics and monitoring.

Product Information

Technical Specifications

• Material: 22 Gauge Galvanized Steel
• Motor Rating: 24 Volt AC, 60 Hertz, 7 Volt Amp
• Temperature Suitability: 0 to 120 Deg F
• Humidity Tolerance: 5 to 95 Percent (Non-Condensing)
• Connection Type: Screw Terminal
• Duct Pressure Tolerance: 4 Inch WC
