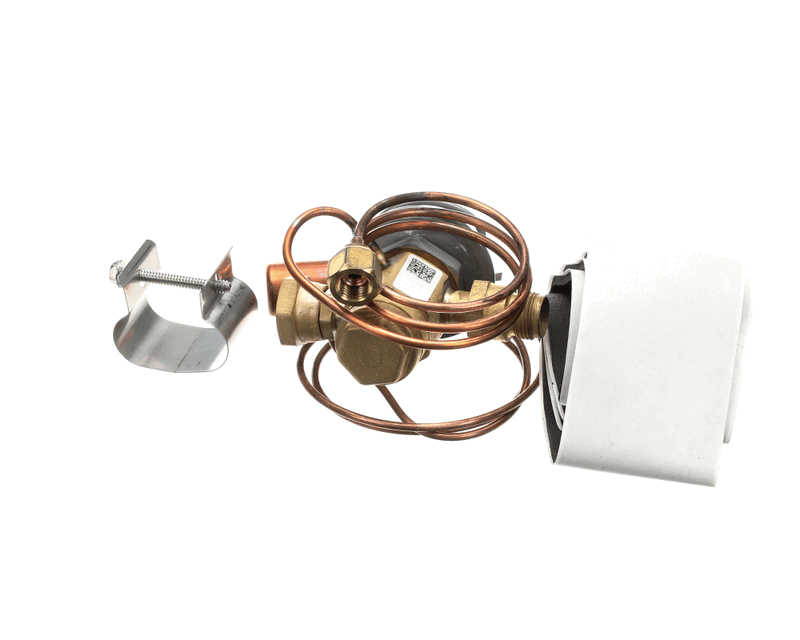

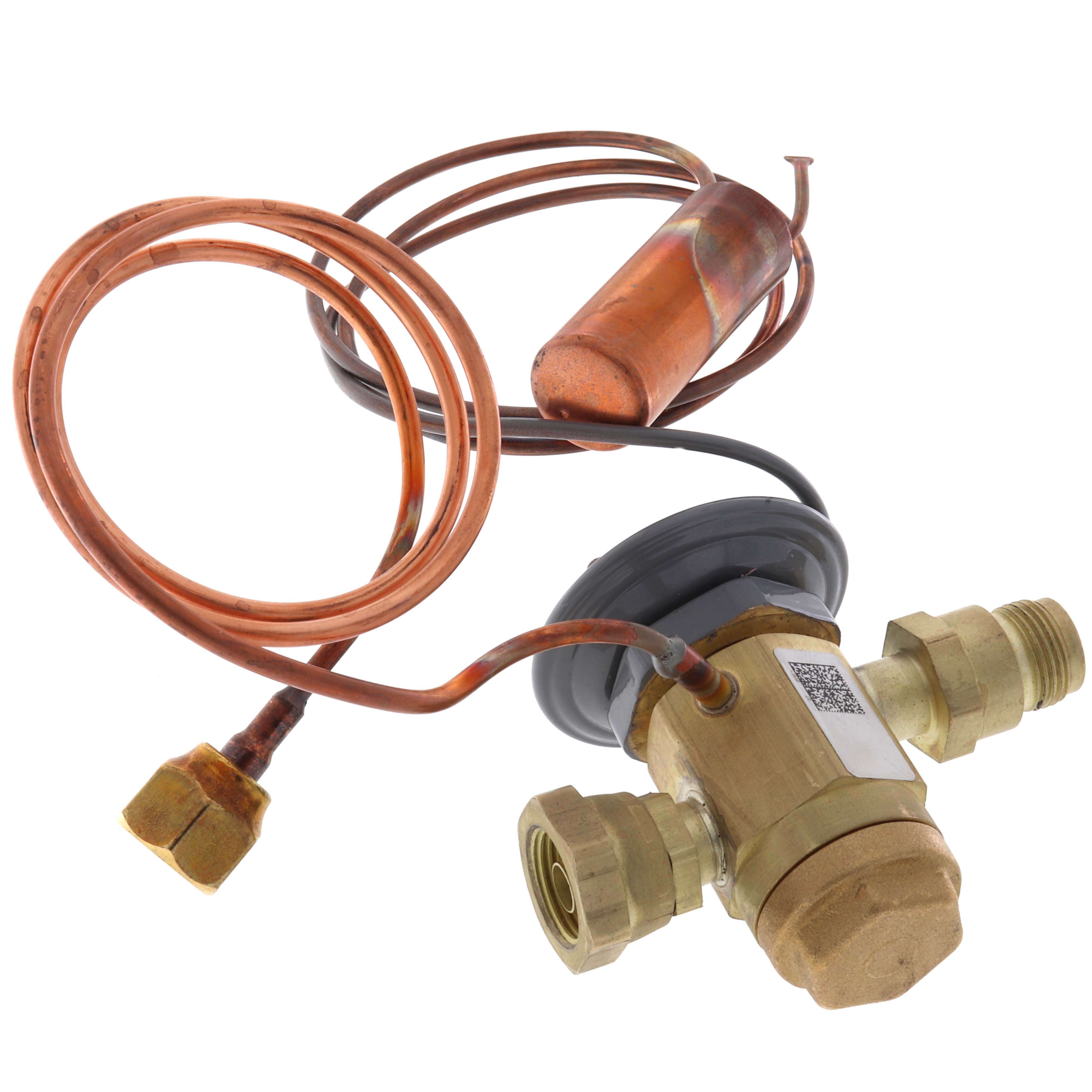

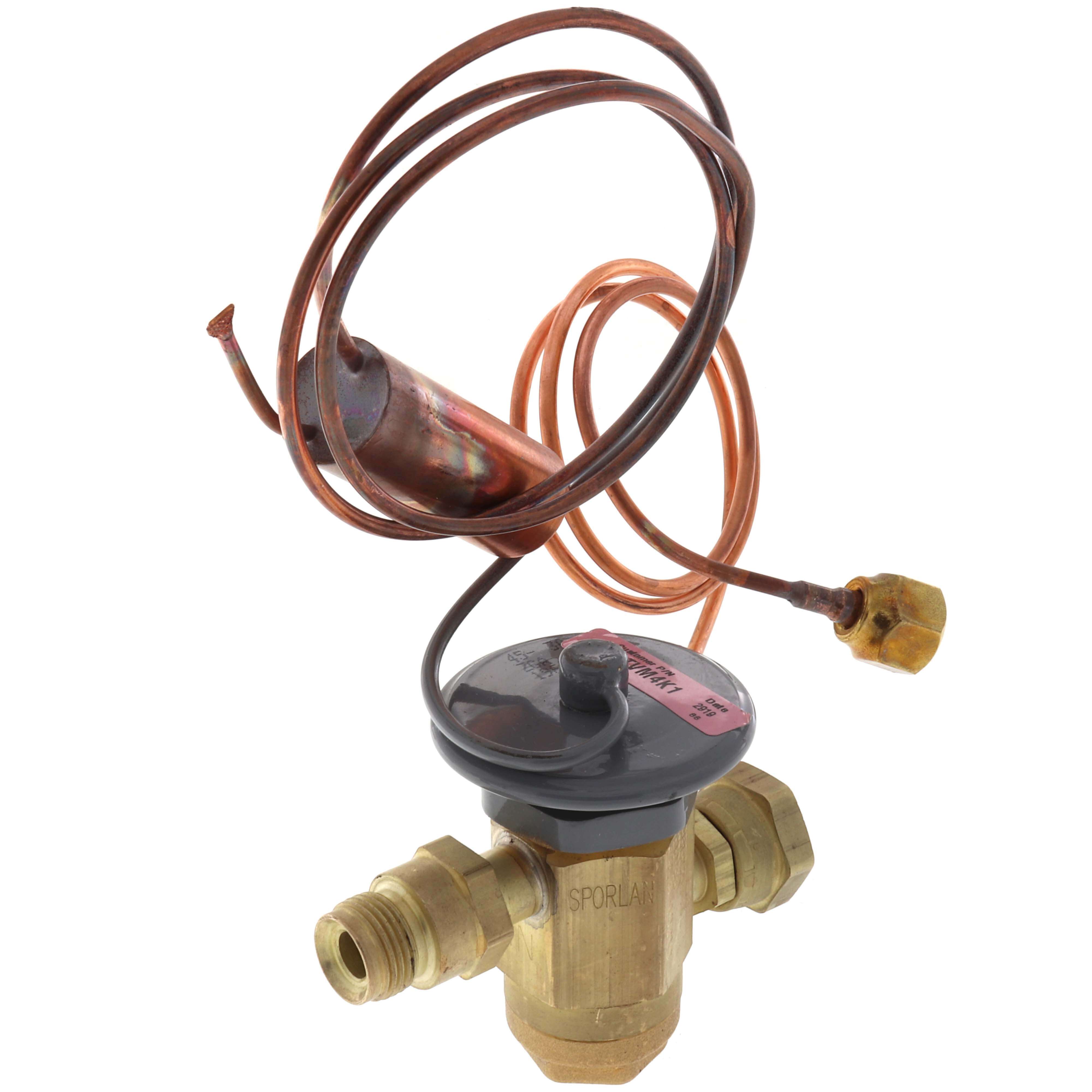

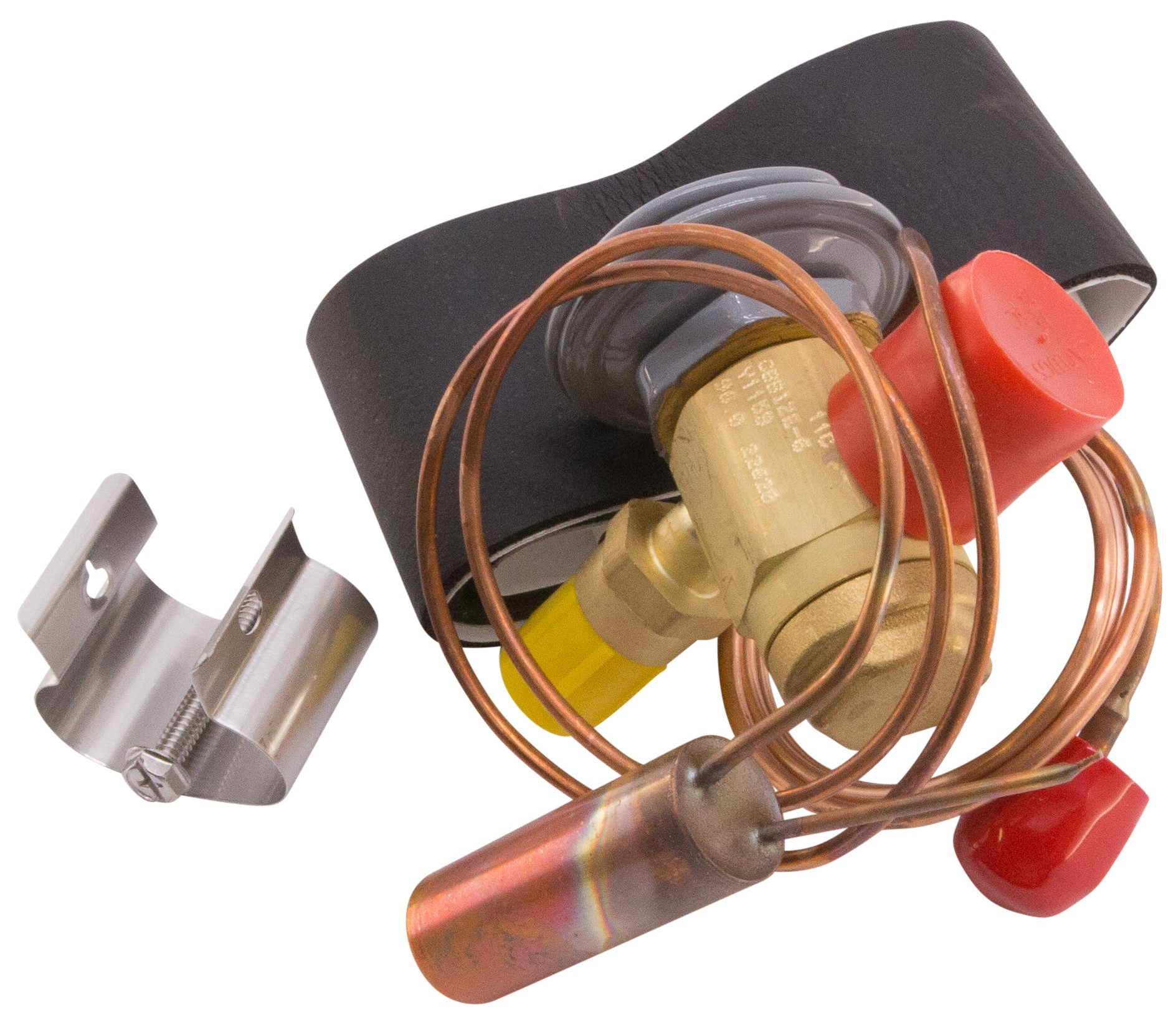

York S1-1TVM4K1 Thermal Expansion Valve Kit 6 Ton REPLACEMENT S1-1TVM4K1

Product Description

The York S1-1TVM4K1 is a thermal expansion valve kit designed for R41 refrigerant. It features a 5/8-inch male x female flare connection, suitable for 6.0-ton air conditioners using R410A refrigerant. This kit allows for fine-tuned refrigerant flow that matches the system requirements, optimizing energy usage and performance.

• Prevents system overheating and enhances cooling efficiency
• External design allows for easy installation and maintenance
• Durable construction with brass body and copper tube

Product Highlights

Maintains consistent refrigerant flow, improving system efficiency. Protects the compressor from damage due to overheating. Extends the life of the HVAC system by reducing wear and tear.

Product Information

Standard Information

• Brand: YORK
• Manufacturer Part Number: S1-1TVM4K1
• Country of Origin: United States

Technical Specifications

• End Connection: Male x Female Flare
• Product Type: External
• Size: 5/8IN
• Capillary Length: 30 in
• Connection Type: Male x Female
• Equalizer Size: 1/4 in SAE
• Equalizer Type: External
• Item Name: Thermal Expansion Valve Kit
• Nominal Capacity: 6 ton
• Nominal Size: 5/8 in
• Refrigerant: R-410A
• Manufacturer: York
• Manufacturer #: S1-1TVM4K1
• Connection Size: 5/8 M X 5/8 F
• Refrigerant Type: R410A
• Part Number: S1-1TVM4K1
