York S1-02436232000 48 Motor 1/15 HP (48 Frame) Replacement S1-02440888000

Product Description

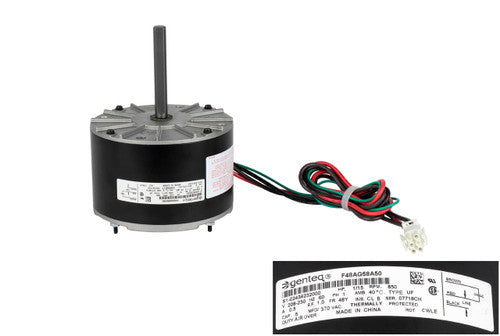

The York S1-02436232000 is a 48-frame condenser fan motor rated at 1/15 HP and approximately 850 RPM for 208/230 V, 60 Hz operation. It is a single-phase, single-speed motor with thermal protection, insulation class B, and ball bearings for continuous air over duty. The motor is enclosed, stud-mounted, rotates clockwise lead end, and uses a single-side flat shaft (1/2 inch diameter, 3 9/16 inch length). It requires a 5 MFD @ 370 VAC capacitor.

• 1/15 HP, ~850 RPM; single-phase, single speed; 208-230 V, 60 Hz; 0.50 A
• Thermally protected with insulation class B and ball bearings for continuous air over duty
• Enclosed stud-mount design, clockwise lead end rotation, single-side flat shaft 1/2 in diameter by 3 9/16 in length; capacitor required 5 MFD @ 370 VAC

Product Highlights

48-frame condenser fan motor, 1/15 HP, single-speed, thermally protected; replaces older York part numbers and is replaced by S1-02440888000.

Product Information

Standard Information

• Brand: YORK
• Manufacturer Part Number: S1-02436232000
• Country of Origin: China

Technical Specifications

• Brand: York
• Manufacturer Part Number: S1-02436232000
• OEM Model: genteq F48AG58A50
• Product Type: 48 Motor (Condenser Fan Motor)
• Horsepower: 1/15 HP
• Speed (RPM): 850 RPM
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Input Current: 0.50 A
• Phase: Single
• Speeds: 1
• Frame: 48
• Thermally Protected: Yes
• Insulation Class: B
• Motor Duty: Continuous air over
• Bearings: Ball
• Capacitor Required: 5 MFD @ 370 VAC
• Enclosure: Enclosed
• Mounting Type: Studs
• Rotation: Clockwise lead end
• Shaft Type: Single side flat shaft
• Shaft Diameter: 1/2"
• Shaft Length: 3 9/16"
• Replaced By: S1-02440888000
• Replaces: S1-024-26029-000, S1-024-36232-000, S1-02426029000, S1-1468-415P
• Condition: New
• Suggested Alternative: S1-02440888000
