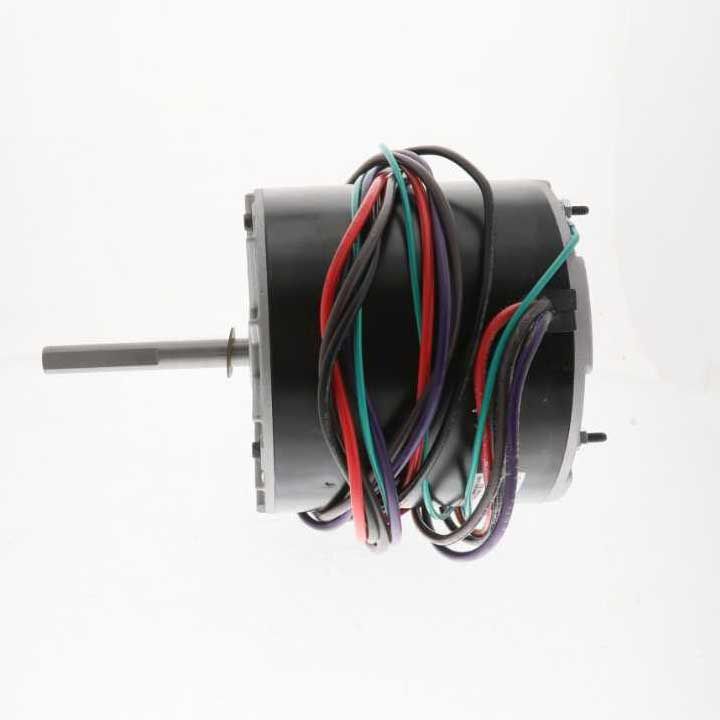

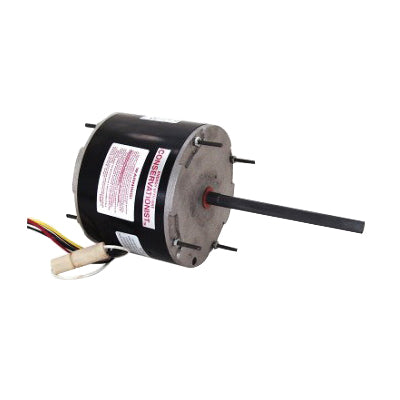

York S1-02425962000 Condenser Fan Motor 1/4 hp 2-Speed 208-230 VAC

Product Description

The York S1-02425962000 is a condenser fan motor designed for efficient cooling in HVAC systems. This motor operates at 208 to 230 VAC and has a power rating of one-quarter horsepower. With a rotational speed of eight hundred fifty RPM, it features a clockwise rotation direction and is ideal for direct drive applications.

• Voltage: 208 - 230 VAC
• Speed: 2-speed operation
• Frame size: 48

Product Highlights

This motor is a durable choice for HVAC professionals needing reliable replacement parts. Its sleeve bearing design and open air-over motor enclosure ensure effective performance.

Product Information

Standard Information

• Brand: York
• MPN: S1-02425962000

Technical Specifications

• Item Name: Condenser Fan Motor
• HP Rating: 1/4 hp
• RPM: 850 rpm
• Number of Speeds: 2
• Frame Size: 48
• Shaft Size: 1/2 in Dia
• Insulation Class: Class B
• Frequency Rating: 50/60 Hz
• Rotation: CW
• Voltage Rating: 208 - 230 VAC
• Motor Enclosure: Open Air Over
• Blower Type: Direct Drive
• Bearing Type: Sleeve
