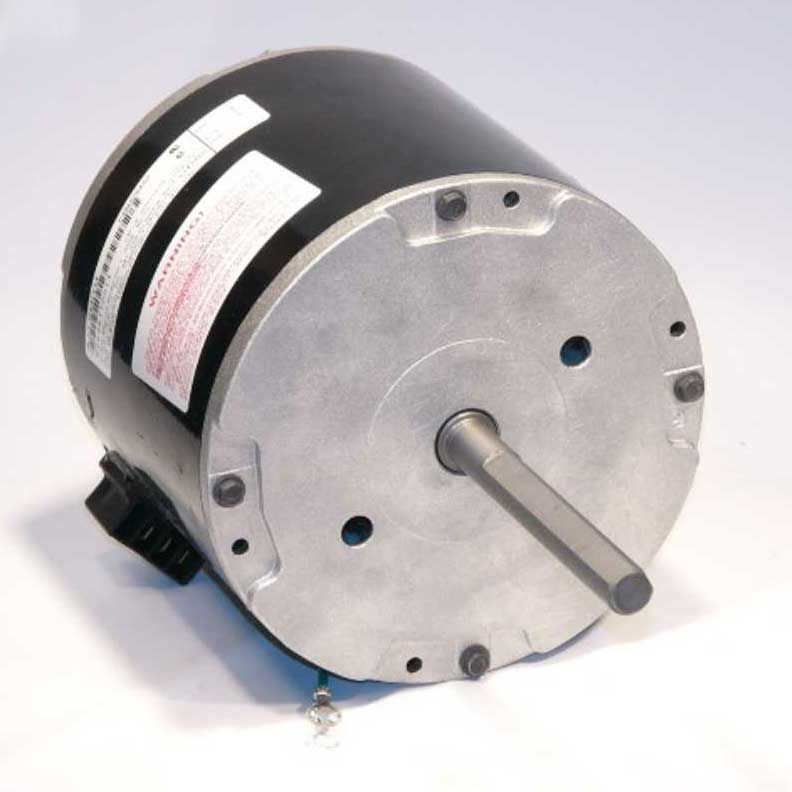

York S1-02424110713 Condenser Motor 1/2 HP 208 to 230 VAC 60 Hz Single Phase

Product Description

The York S1-02424110713 Condenser Motor is a robust component for HVAC systems, designed to enhance airflow and efficiency. Manufactured by York, a leader in HVAC solutions, this motor is built to last with a permanent split capacitor, offering reliable service in a TEAO (Totally Enclosed Air Over) enclosure.

• Powerful performance with 1/2 HP and 1075 RPM speed.
• Operates on a 208 to 230 VAC, 60 Hz single-phase power supply.
• Durable ball bearing design for prolonged motor life.

Product Highlights

This motor's frame size is 48 and it's designed for single-speed operation. Its clockwise rotation at the lead end and ball bearing support make it a preferred choice for continuous duty applications in outdoor or commercial settings.

Product Information

Standard Information

• Brand: York
• Model: S1-02424110713

Technical Specifications

• Enclosure Type: TEAO
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency: 60 Hertz
• Speed: 1075 RPM
• Power: 1/2 HP
• Bearing Type: Ball
• NEMA Frame: 48
