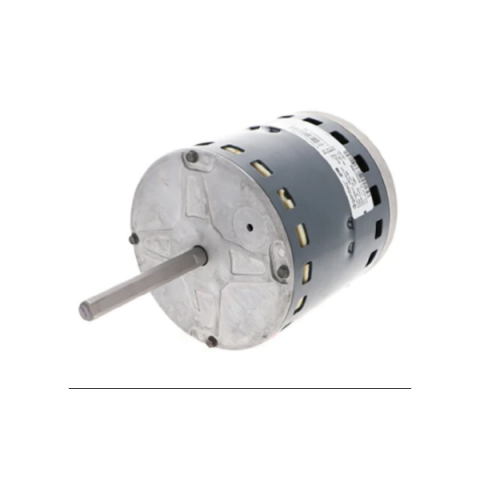

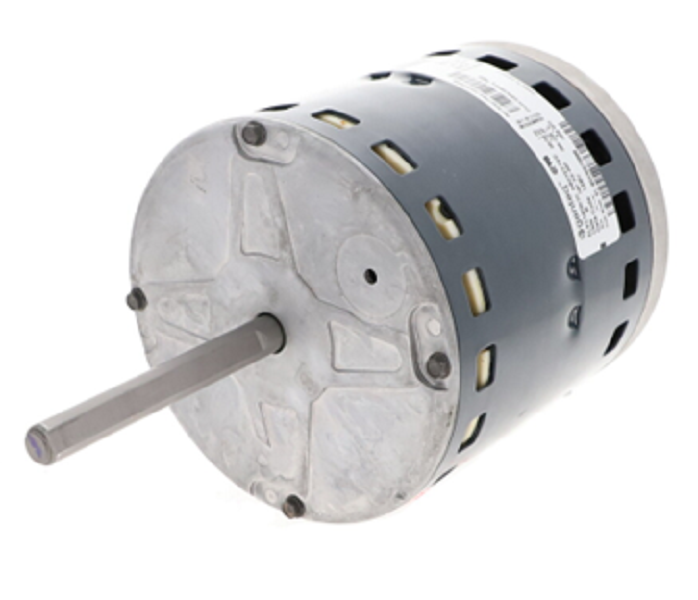

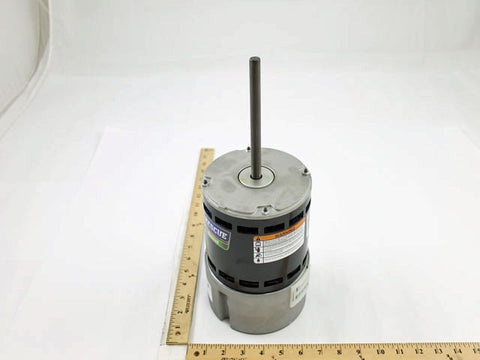

York S1-024-35326-009 1/2 HP 208-230V 1050 RPM ECM Motor (48Y Frame) Replacement S1-024-35326-009

Product Description

York S1-024-35326-009 is a 1/2 HP electronically commutated motor (ECM) rated for 208-230 V and 1050 RPM, designed for HVAC blower applications. The motor includes an integrated electronic control module and standard 5-pin power plus 16-pin control connectors for compatibility with X13 furnace and air handler platforms.

• Motor type: ECM (electronically commutated), 1/2 HP, rated speed 1050 RPM
• Electrical: input voltage 208-230 V; standard 5-pin power and 16-pin control connectors
• Mechanical: 48Y frame (5-5/8 inch diameter); integrated replaceable control module; dimensions 15.65" x 6.7" x 6.35"

Product Highlights

ECM blower motor for residential and light commercial HVAC; OEM-compatible with York X13, Luxaire, and Coleman platforms; weight about 11.82 lb.

Product Information

Standard Information

• Brand: YORK
• Manufacturer Part Number: S1-024-35326-009
• Country of Origin: China

Technical Specifications

• Brand: York
• MPN: S1-024-35326-009
• Alternate Part Number: YO-S1-024-35326-009-nu
• Motor Type: ECM (Electronically Commutated Motor)
• Horsepower: 1/2 HP
• Input Voltage: 208-230 V
• Rated Speed: 1050 RPM
• Frame: 48Y (5-5/8 inch diameter)
• Control: Integrated electronic control module (end cap replaceable)
• Connectors: Standard 5-pin power and 16-pin control connectors
• Compatibility: OEM replacement for York X13 furnace blower assemblies; also fits Luxaire and Coleman platforms
• Applications: Residential and light commercial HVAC blower applications
• Dimensions: 15.65" x 6.7" x 6.35" (inches)
• Weight: 11.82 lb
• Country of Origin: China
