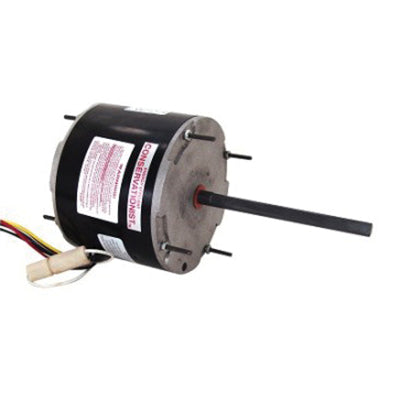

York S1-024-27500-000 Capacitor Motor 1/4 HP 850 RPM CWLE

Product Description

The York S1-024-27500-000 is a permanent split capacitor motor suitable for HVAC applications. It operates at 208/230 VAC, with a power of one-fourth horsepower and a maximum speed of eight hundred fifty revolutions per minute. This motor is designed with a sleeve bearing and is ideal for direct drive systems.

• One-speed operation for consistent performance
• Totally enclosed air over design for protection
• Shaft size of one-half inch for compatibility

Product Highlights

This motor is known for its reliability in HVAC systems. It provides efficient operation in various cooling applications and is built to meet standard performance requirements.

Product Information

Standard Information

• Brand: York
• MPN: S1-024-27500-000

Technical Specifications

• HP Rating: 1/4 HP
• Voltage Rating: 208/230 VAC
• Amperage Rating: 1.2 A
• RPM: 850 rpm
• Frame Size: 48
• Frequency Rating: 60 Hz
• Bearing Type: Sleeve
• Motor Enclosure: Totally Enclosed Air Over
